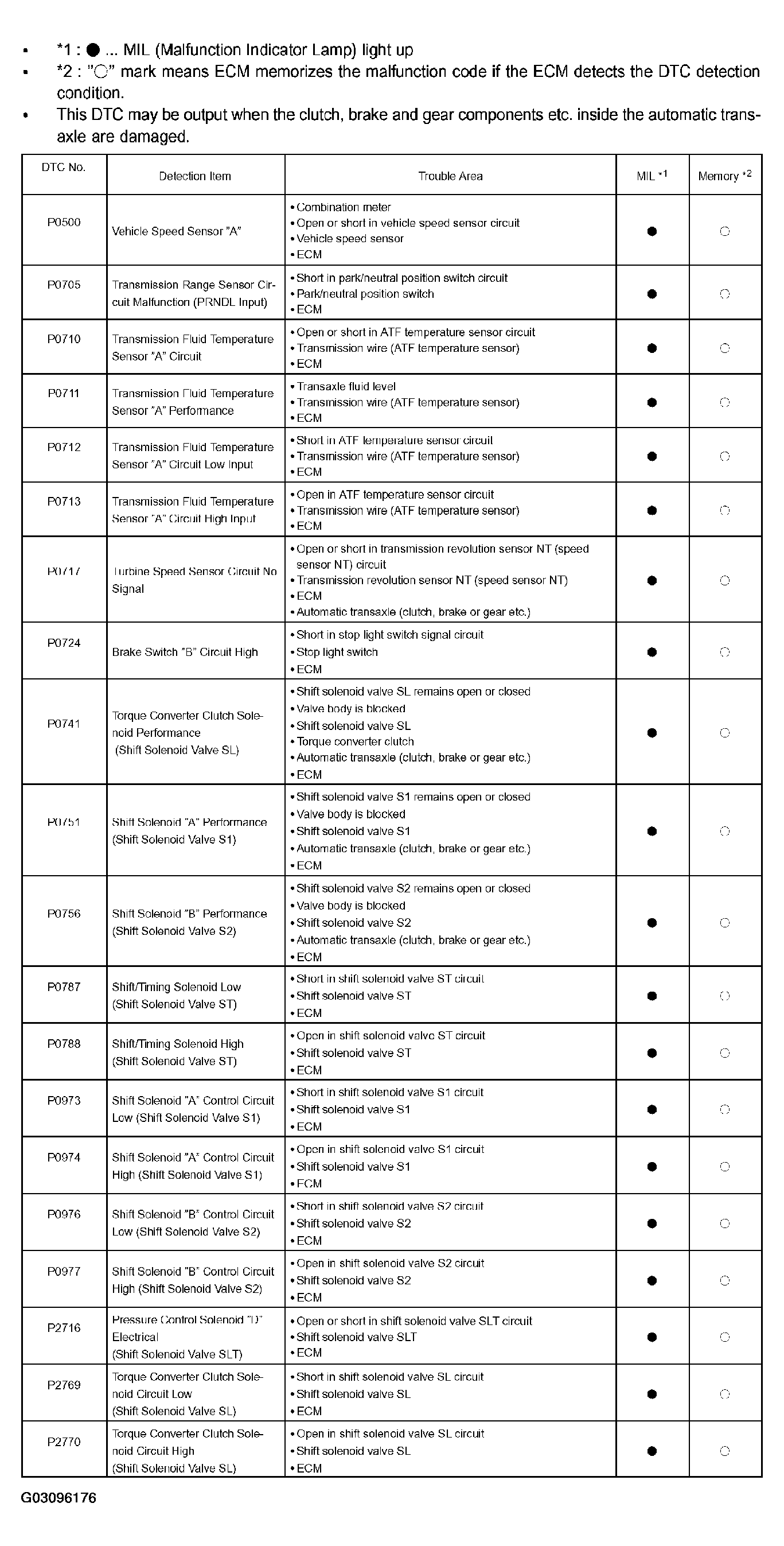

Diagnostic Trouble Code Chart
If a DTC is displayed during the DTC check, check DIAGNOSTIC DTC LIST .
DIAGNOSTIC DTC LIST
| DTC | Description |
|---|---|
| DTC P0705 | TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) |
| DTC P0710, P0712, P0713 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" CIRCUIT, LOW INPUT & HIGH INPUT |
| DTC P0711 | TRANSMISSION FLUID TEMPERATURE SENSOR "A" PERFORMANCE |
| DTC P0717 | TURBINE SPEED SENSOR CIRCUIT NO SIGNAL |
| DTC P0724 | BRAKE SWITCH "B" CIRCUIT HIGH |
| DTC P0741 | TORQUE CONVERTER CLUTCH SOLENOID PERFORMANCE (SHIFT SOLENOID VALVE SL) |
| DTC P0751 | SHIFT SOLENOID "A" PERFORMANCE (SHIFT SOLENOID VALVE S1) |
| DTC P0756 | SHIFT SOLENOID "B" PERFORMANCE (SHIFT SOLENOID VALVE S2) |
| DTC P0787, P0788 | SHIFT/TIMING SOLENOID LOW/HIGH (SHIFT SOLENOID VALVE ST) |
| DTC P0973, P0974 | SHIFT SOLENOID "A" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S1) |
| DTC P0976, P0977 | SHIFT SOLENOID "B" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE S2) |
| DTC P2716 | PRESSURE CONTROL SOLENOID "D" ELECTRICAL (SHIFT SOLENOID SLT) |
| DTC P2769, P2770 | TORQUE CONVERTER CLUTCH SOLENOID CIRCUIT LOW/HIGH (SHIFT SOLENOID VALVE SL) |
