List Of Disable A Monitor

HINT:

Using Fig 1 through Fig 6 indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

As for the "X" mark, when the DTC on the left is stored, detection of the DTC in the upper column is not performed.

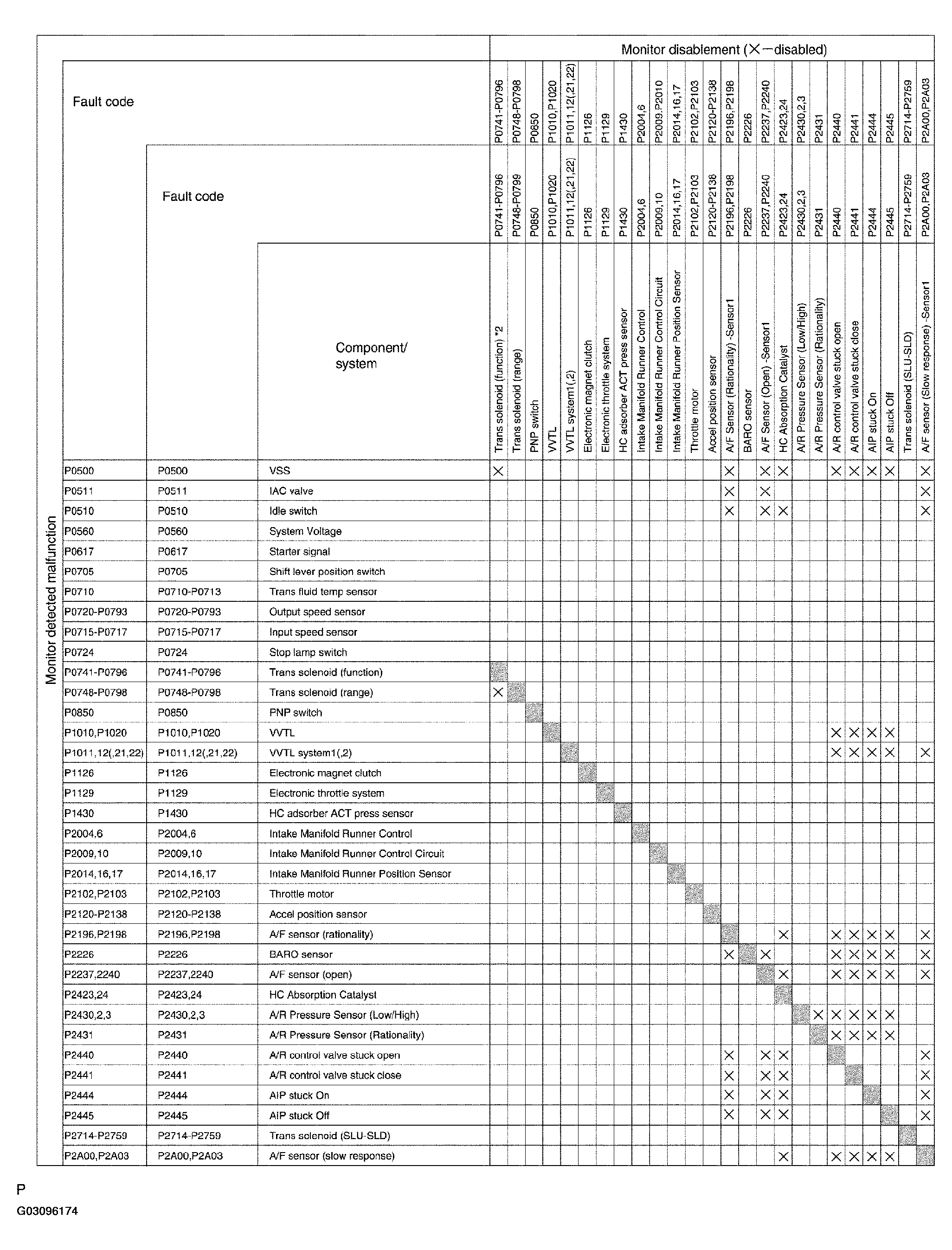

Fig 1: ECM Monitoring Status (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

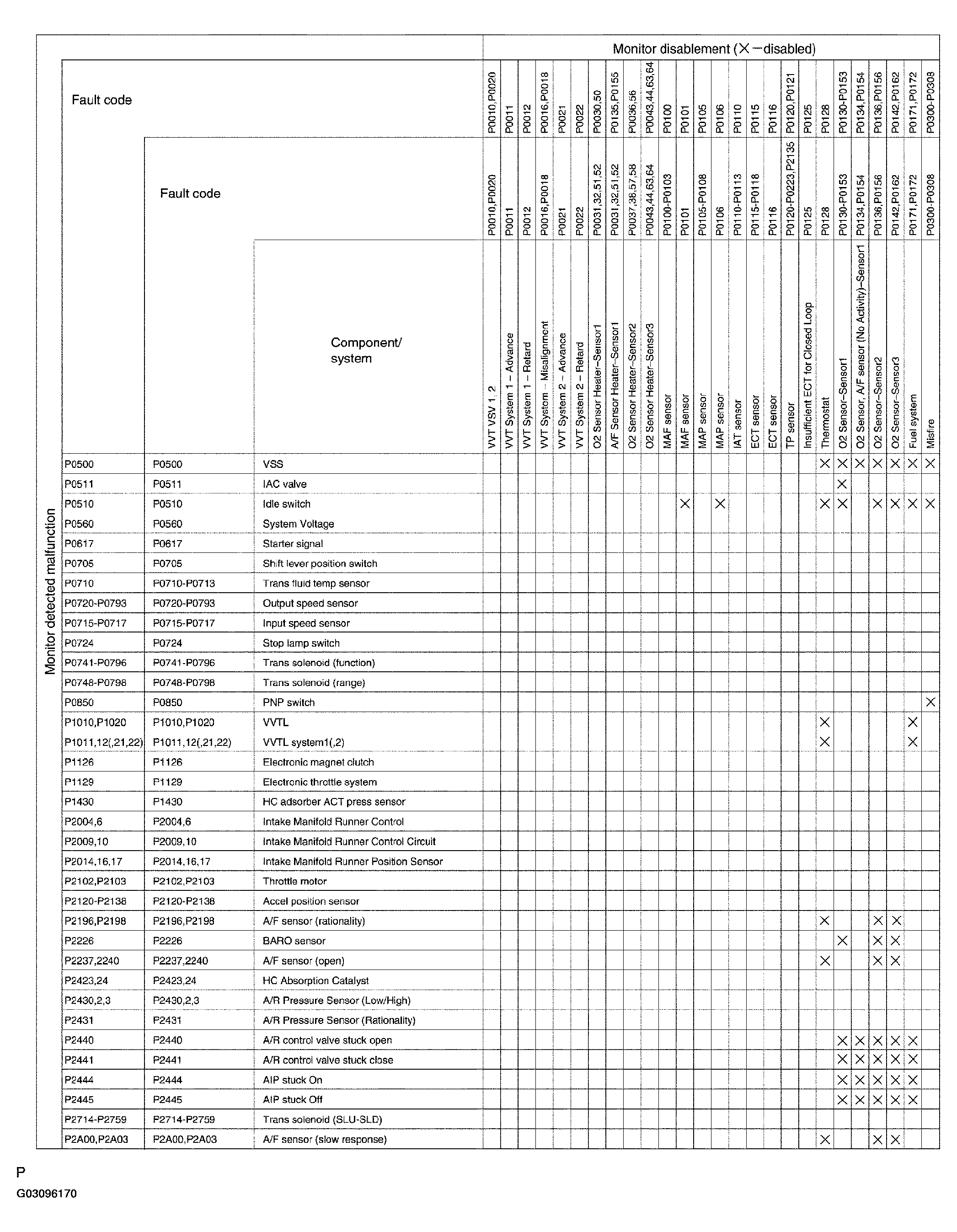

Fig 2: ECM Monitoring Status (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

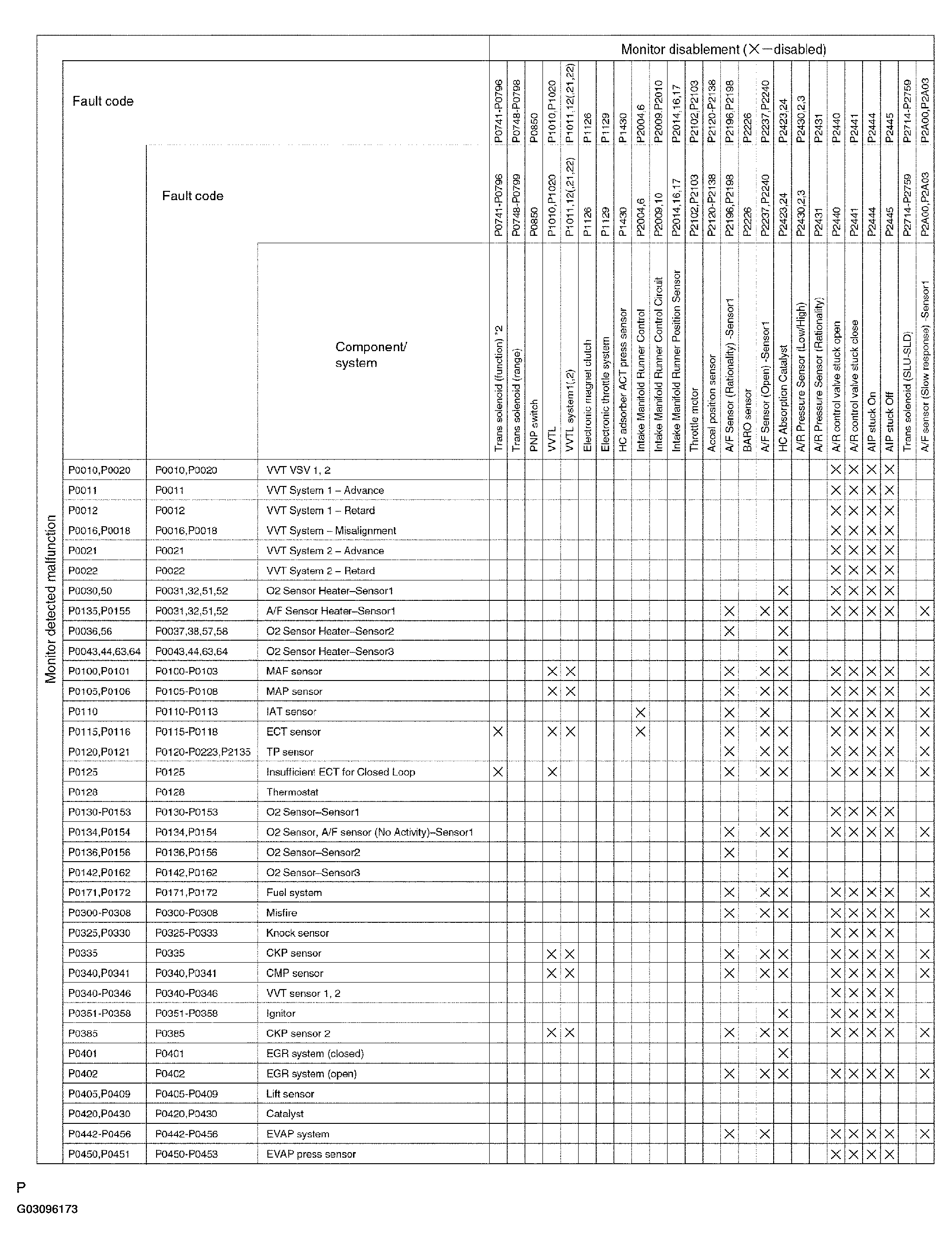

Fig 3: ECM Monitoring Status (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

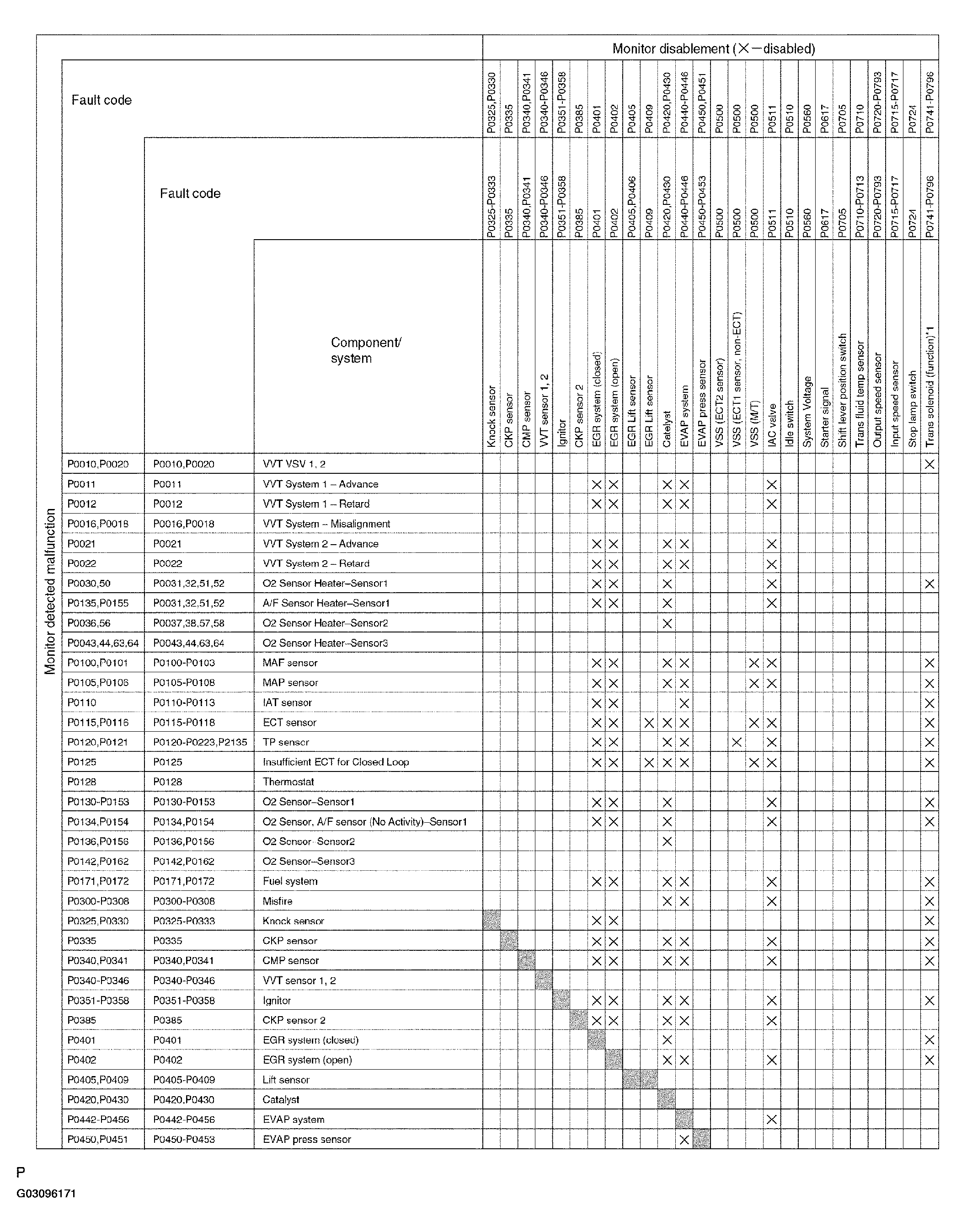

Fig 4: ECM Monitoring Status (4 Of 6)

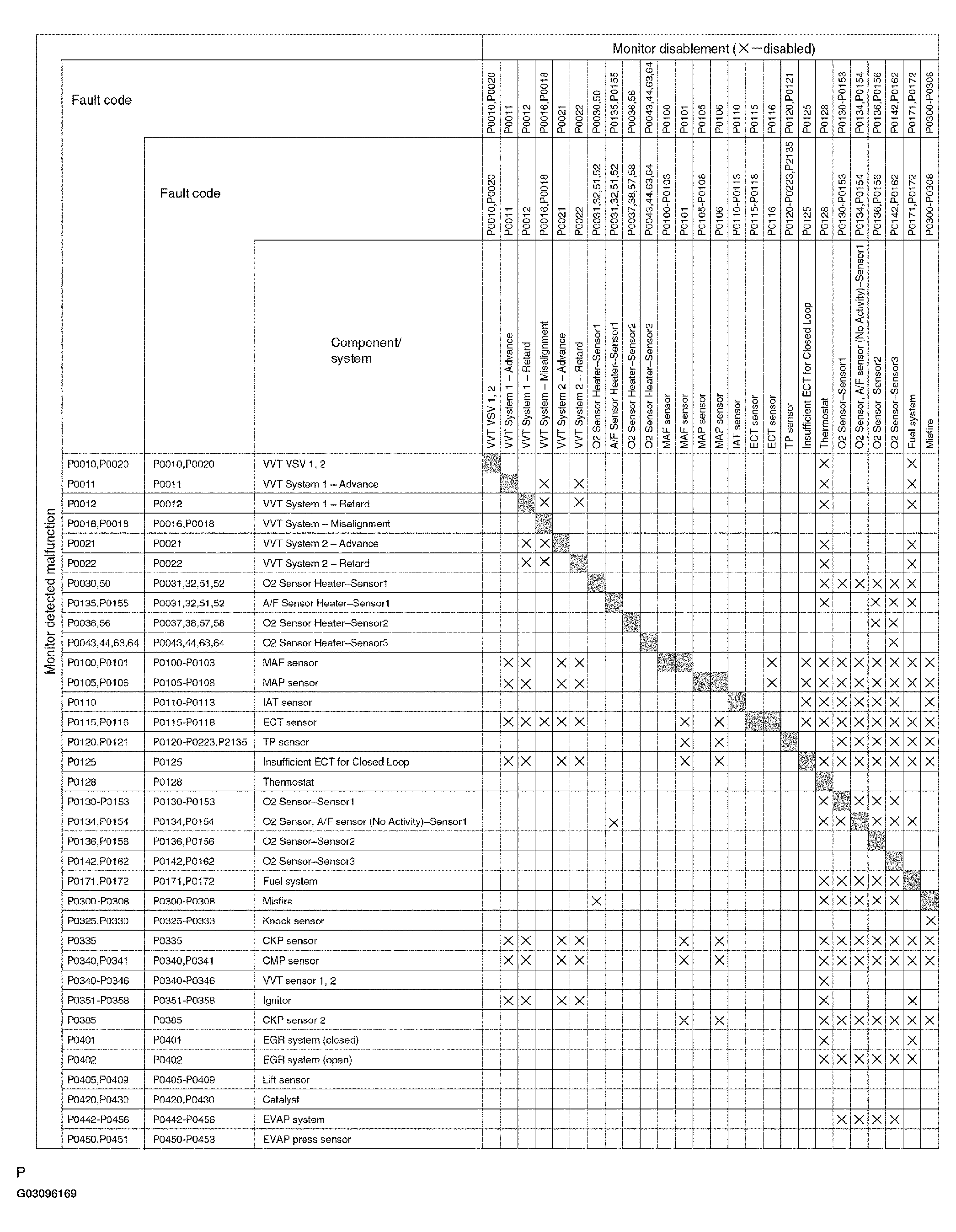

Fig 5: ECM Monitoring Status (5 Of 6)

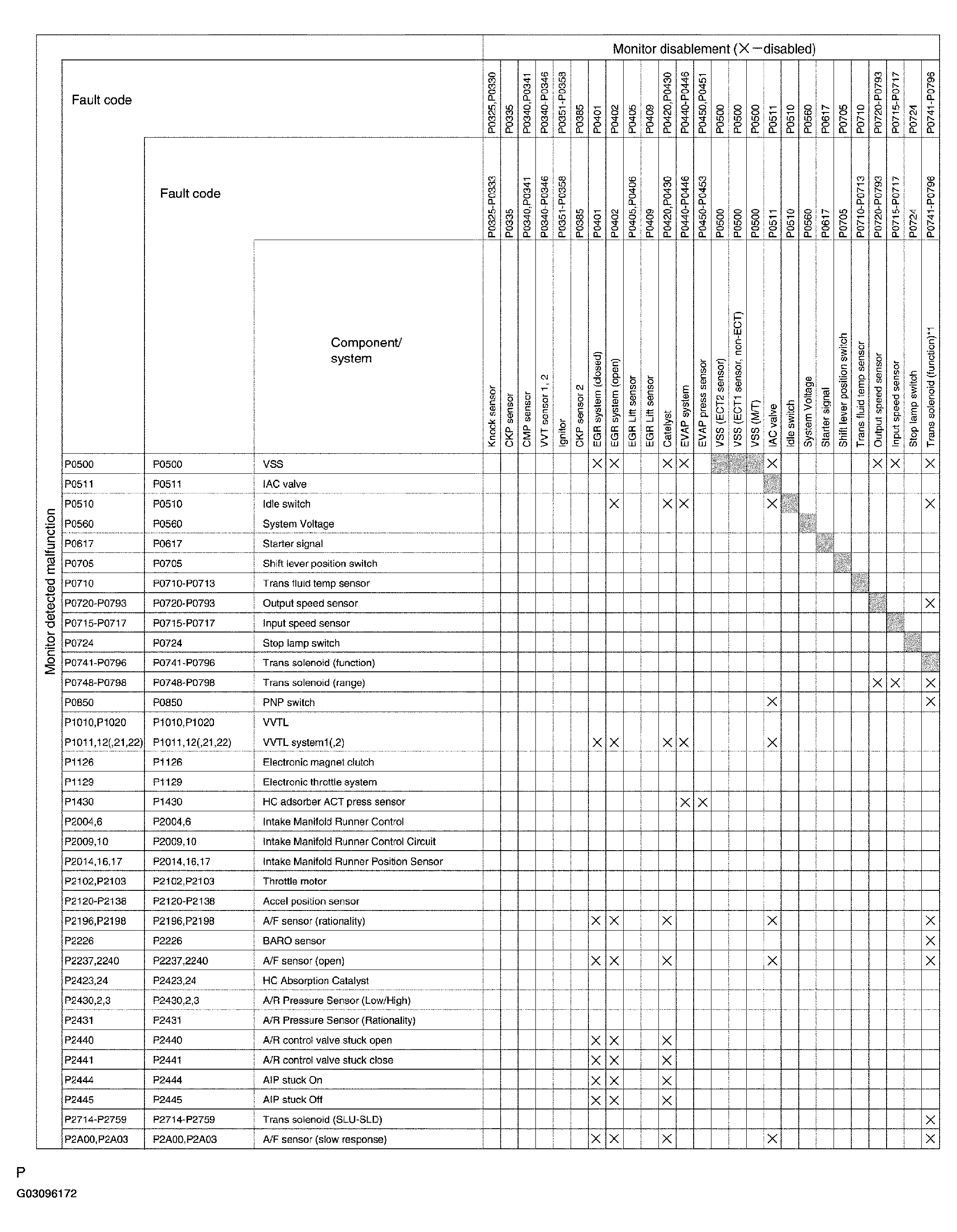

Fig 6: ECM Monitoring Status (6 Of 6)
