Electronic Controlled Automatic Transaxle (ECT)
›
Location
Electronic Controlled Automatic Transaxle (ECT): Location

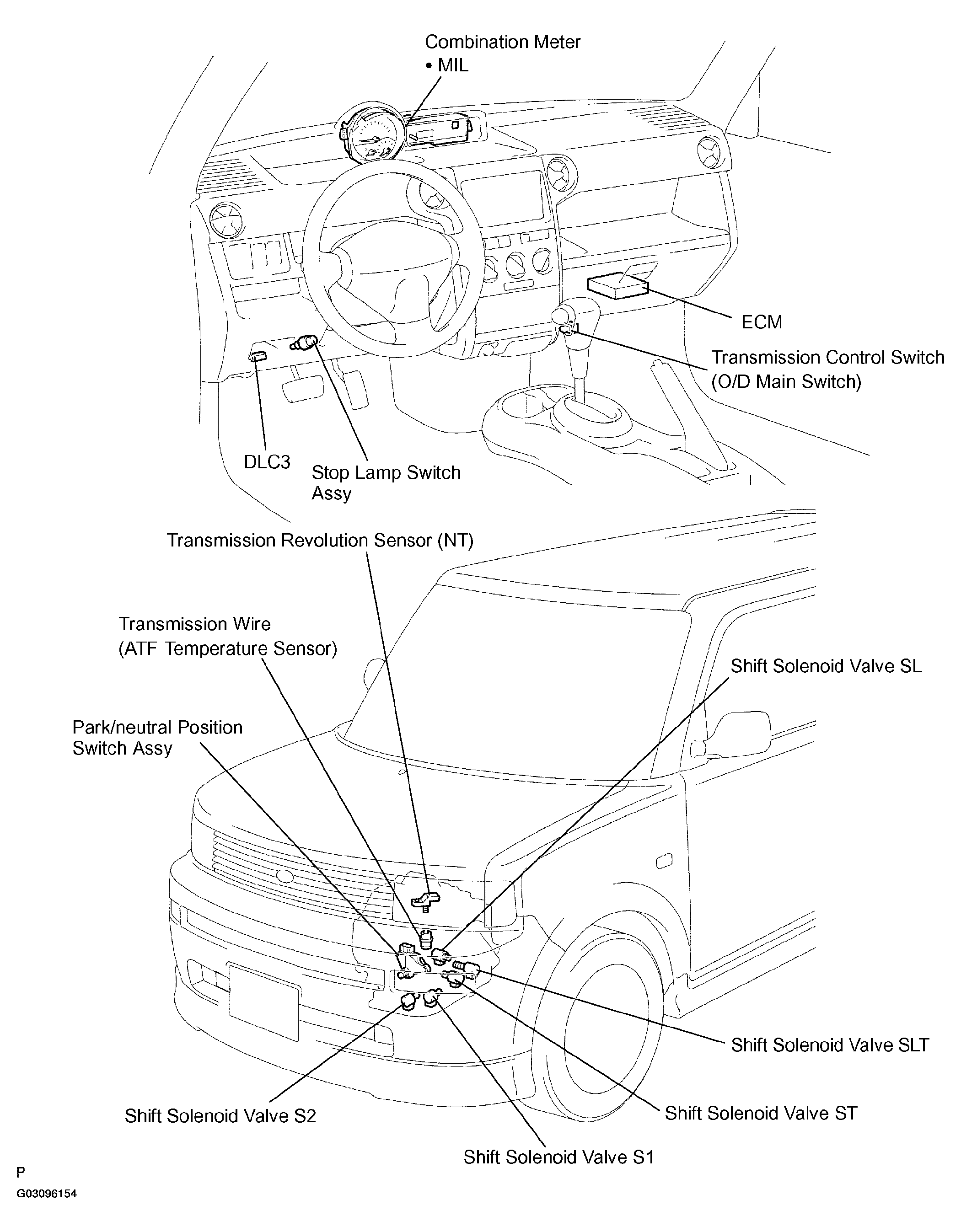

Fig 1: Identifying ECT Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
