Rear Door: Components

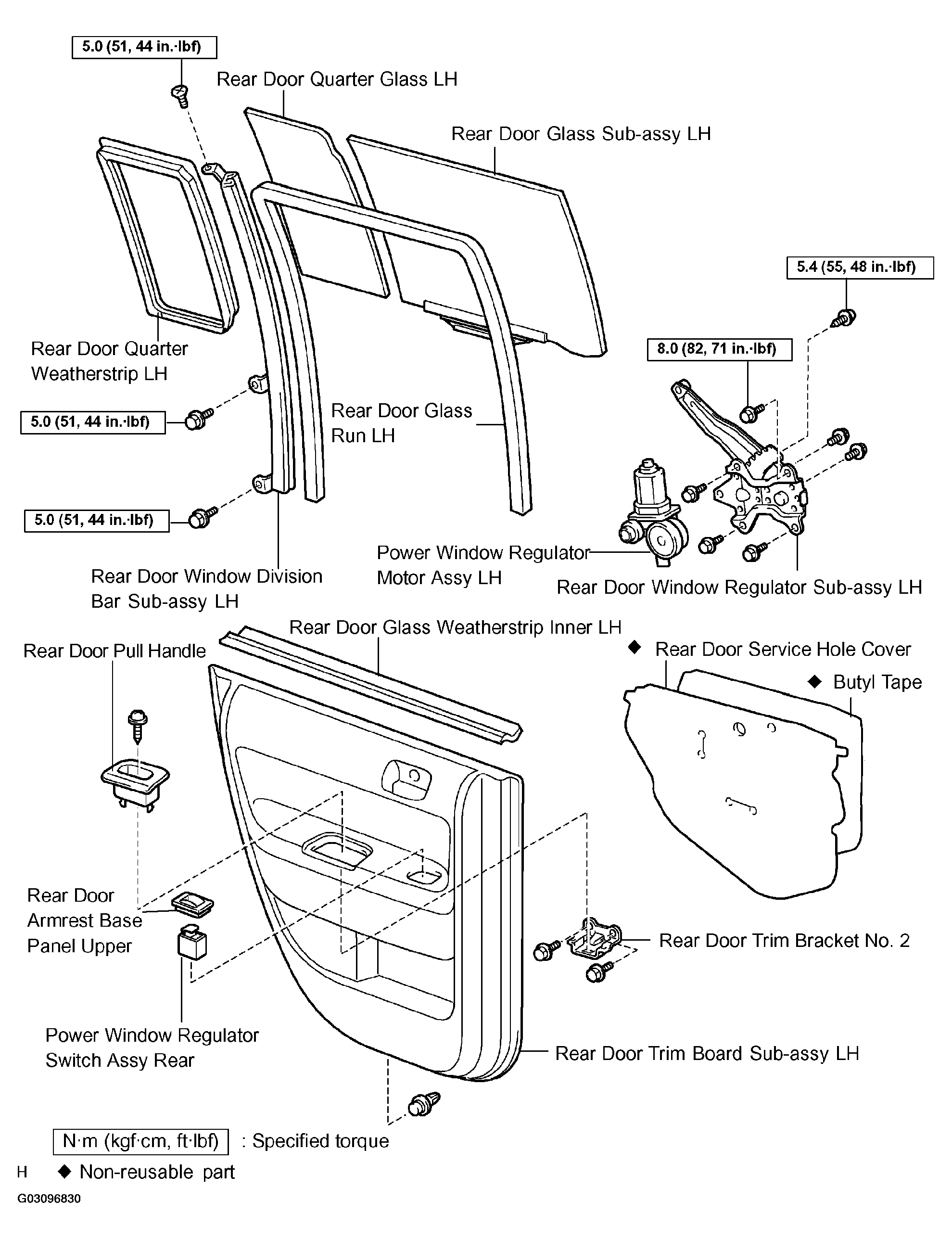

Fig 1: Identifying Rear Door Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

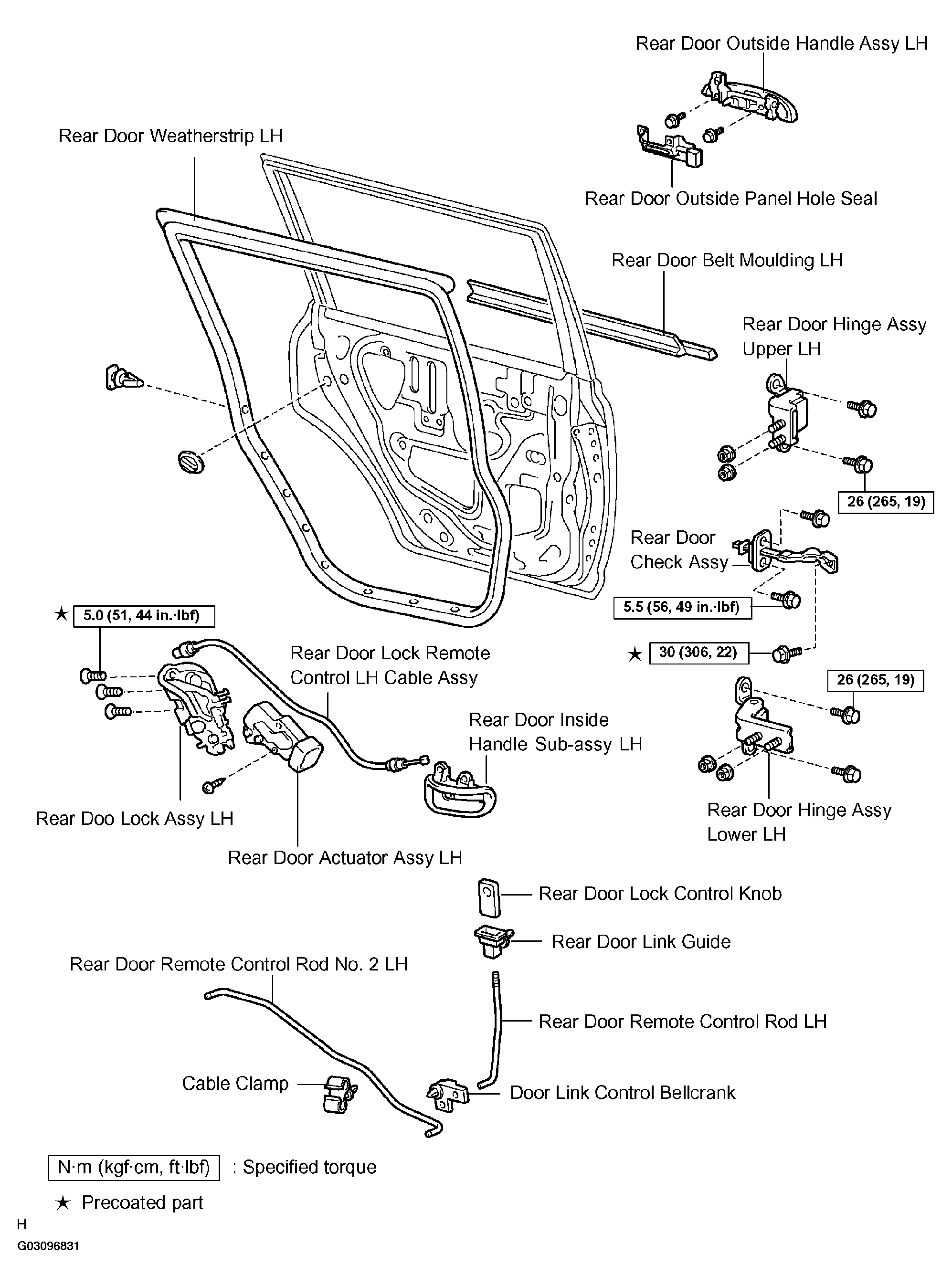

Fig 2: Identifying Rear Door Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
