Combination Meter: Location

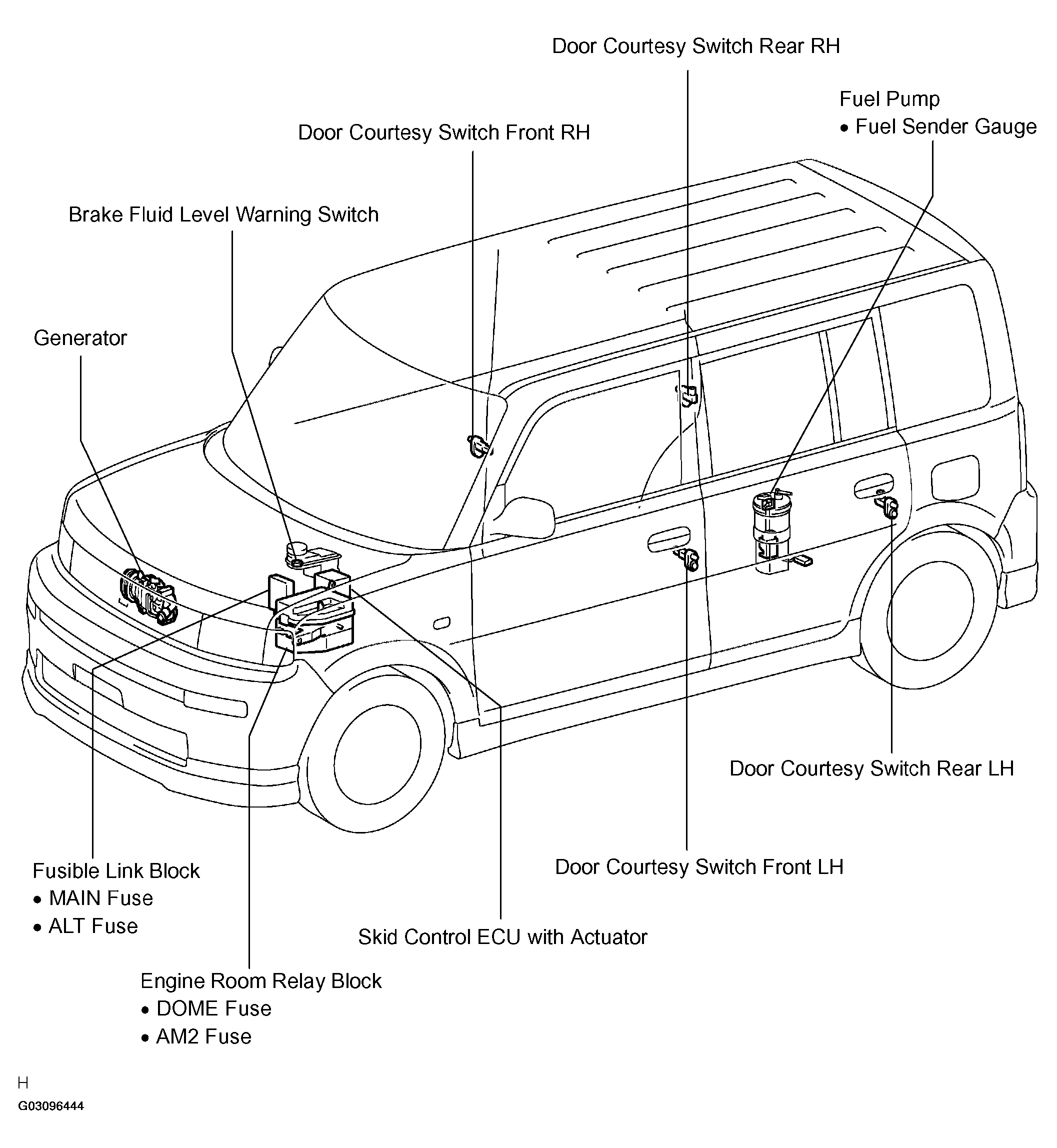

Fig 1: Identifying Combination Meter Components Location (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

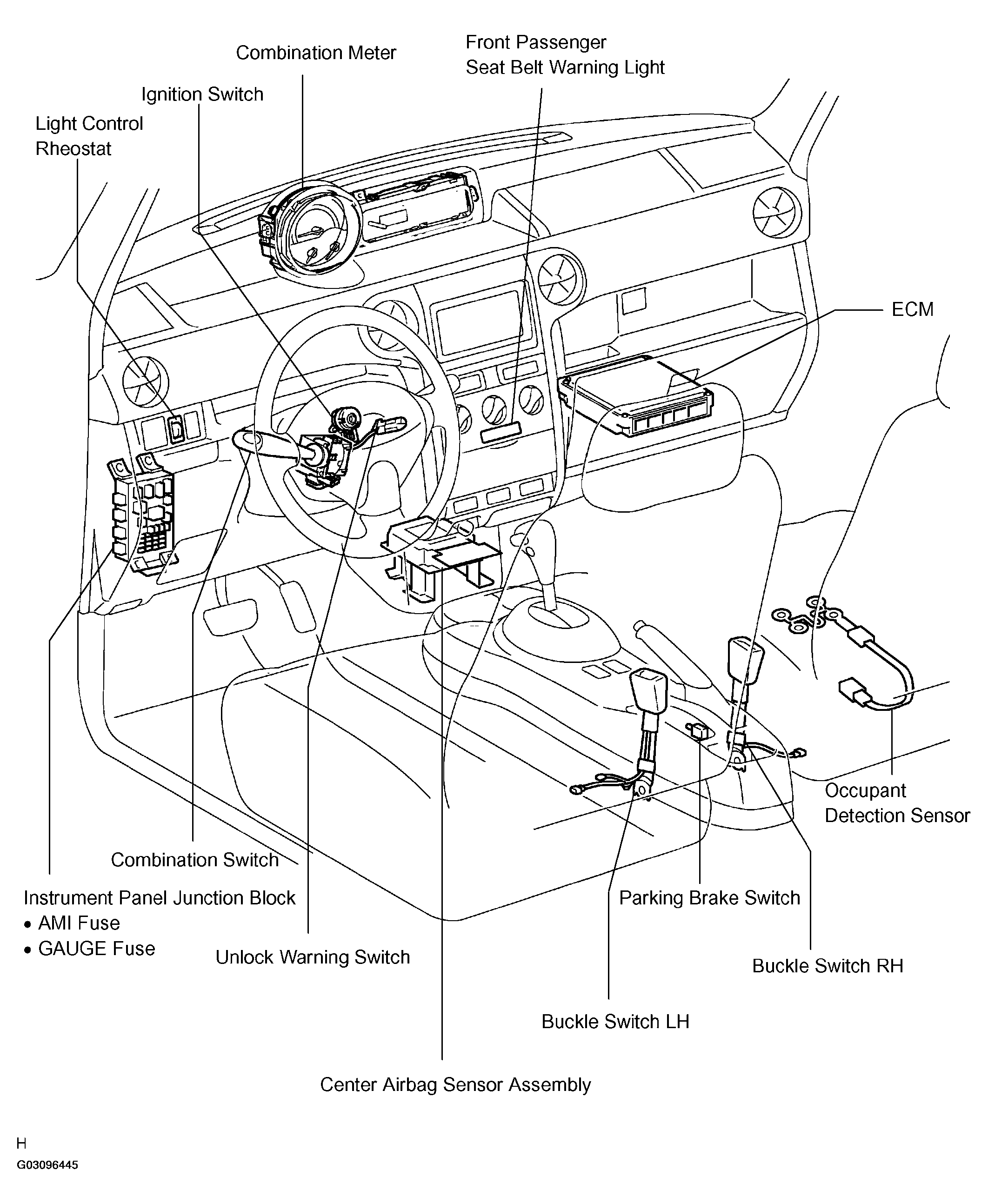

Fig 2: Identifying Combination Meter Components Location (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

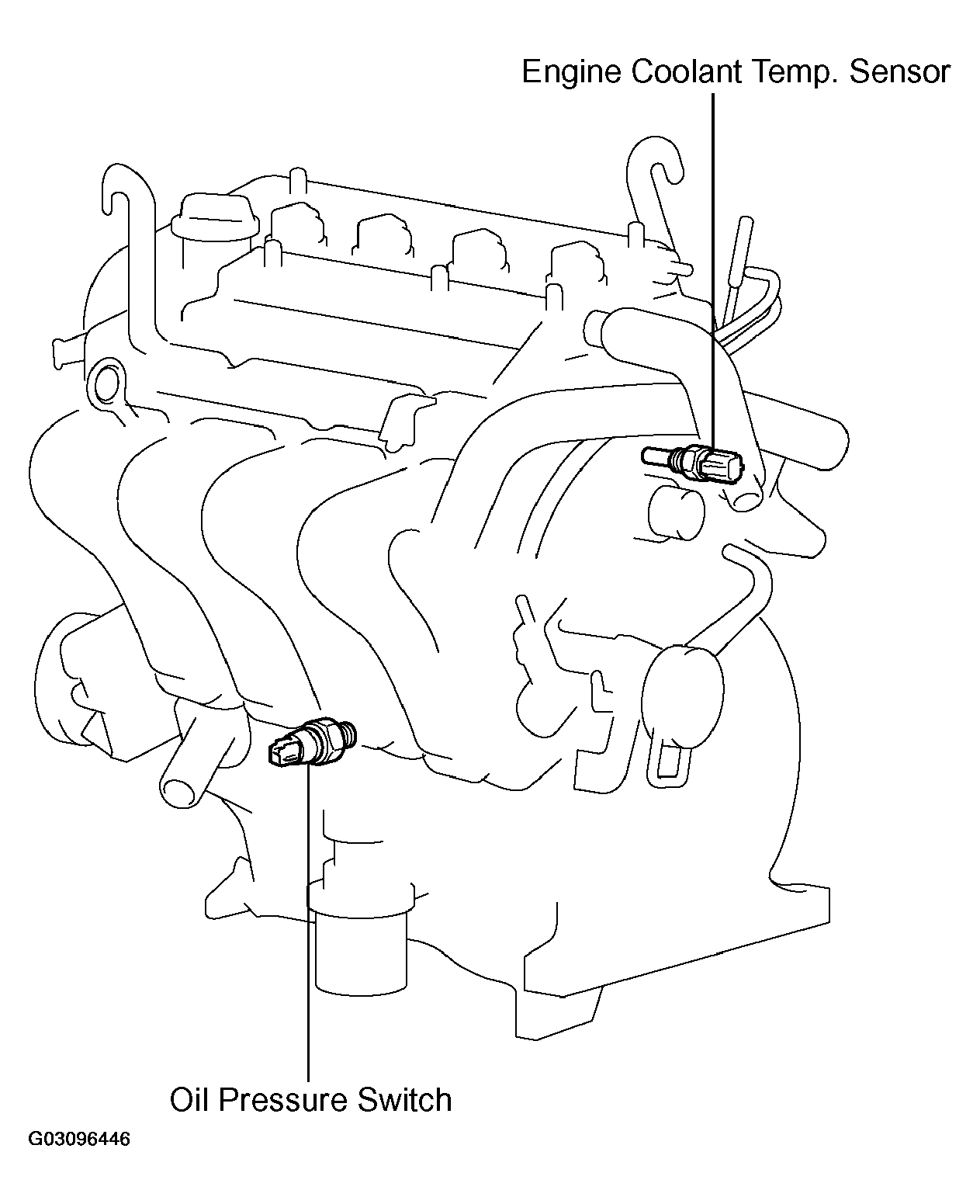

Fig 3: Identifying Combination Meter Components Location (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
