Starting System & Charging System - Service Specifications
›
Starting System & Charging System
›
Torque Specifications
Torque Specifications

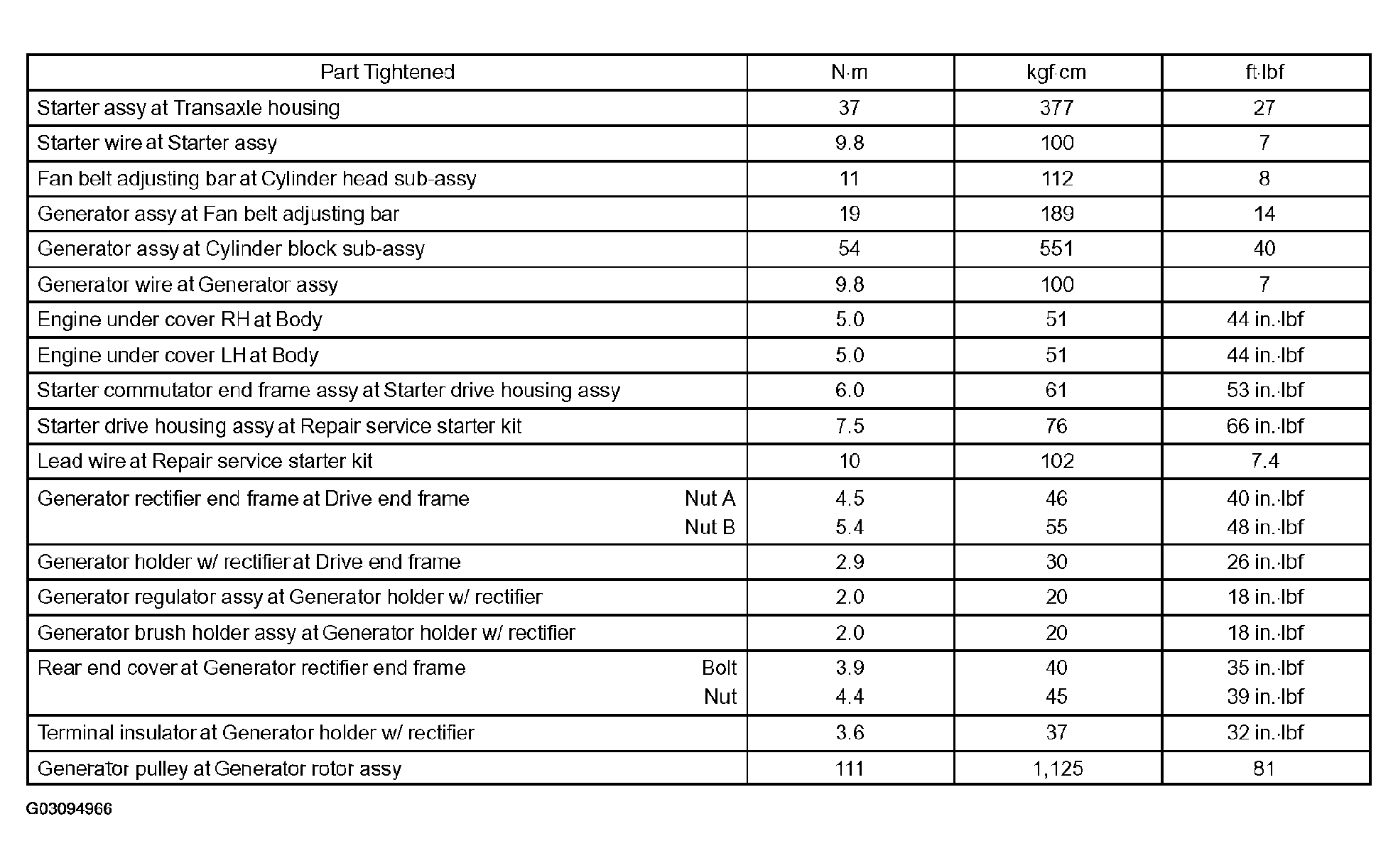

Fig 1: Starting And Charging Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
