Power Window Control System
›
Parts Location
Parts Location

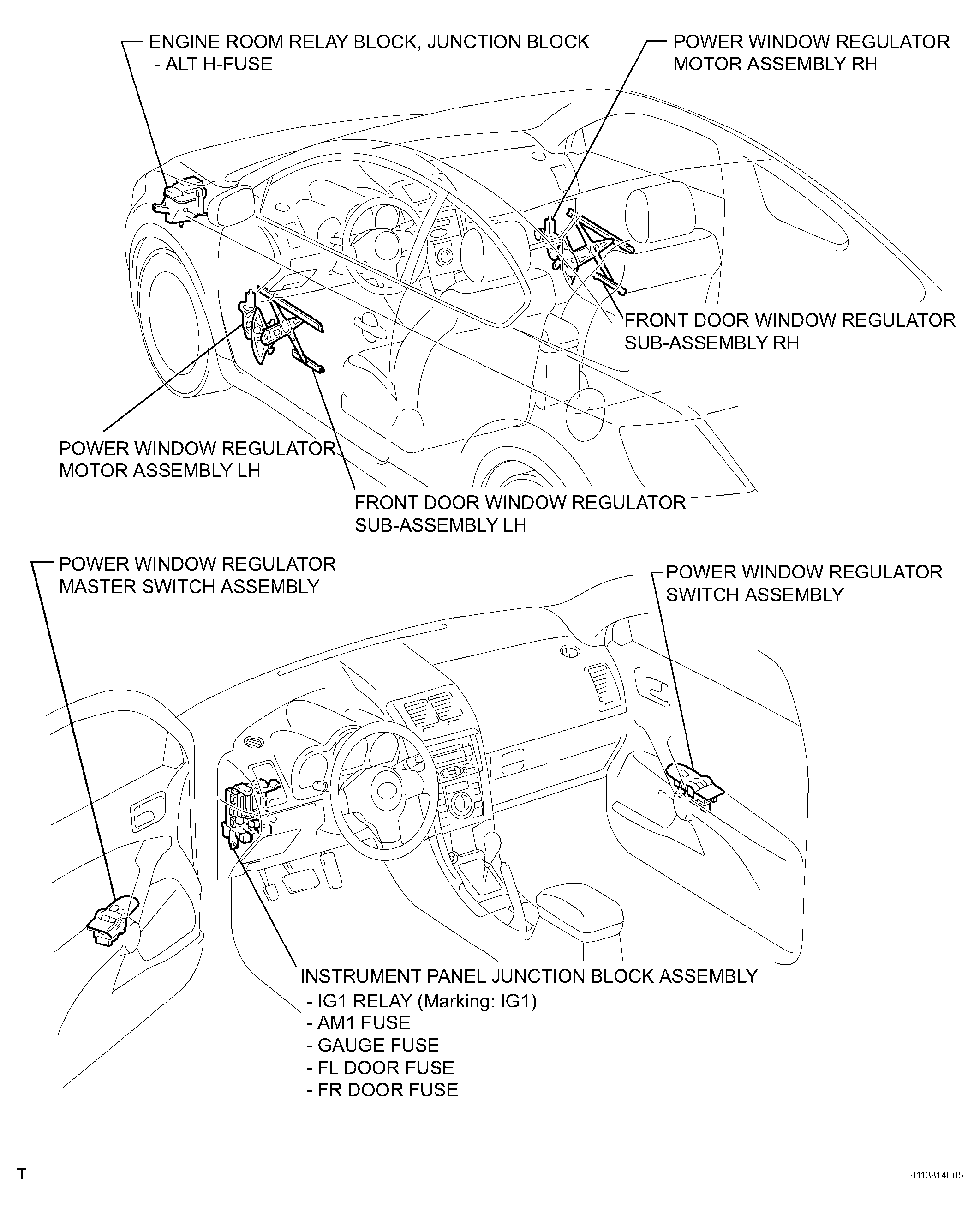

Fig 1: Identifying Power Window Control System Parts Location
