Light Reminder
›
Notes
Light Reminder: Notes

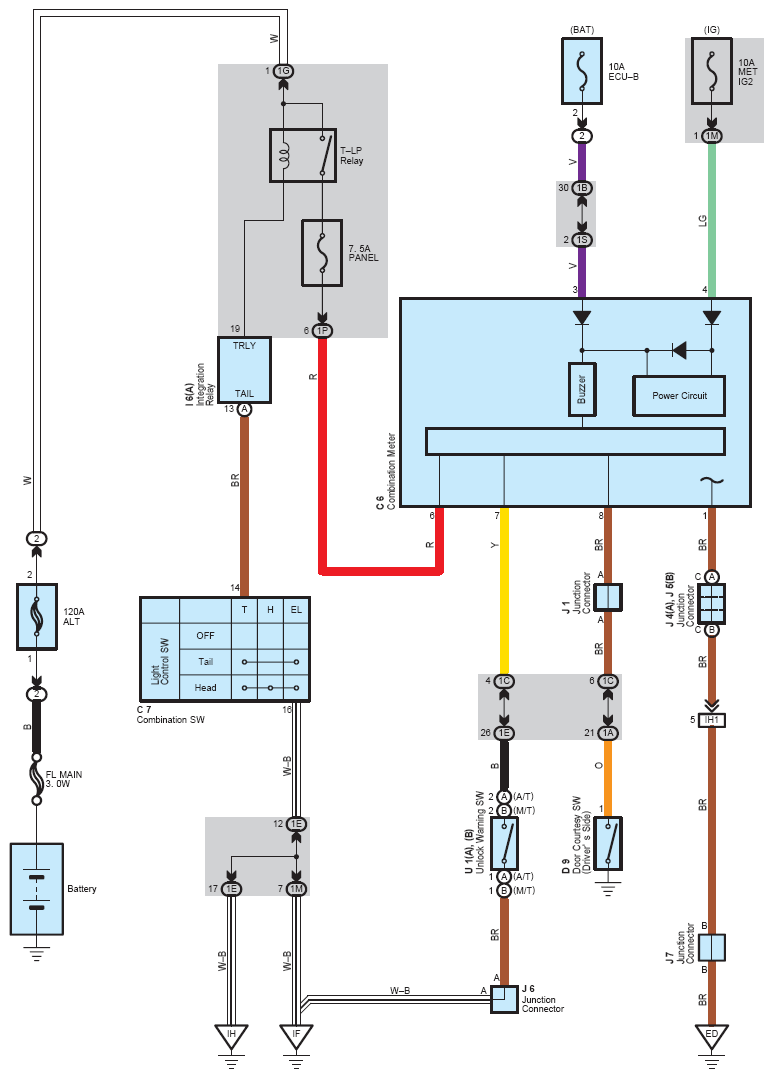

Fig 1: Light Reminder System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
