Seat Belt Warning: Notes

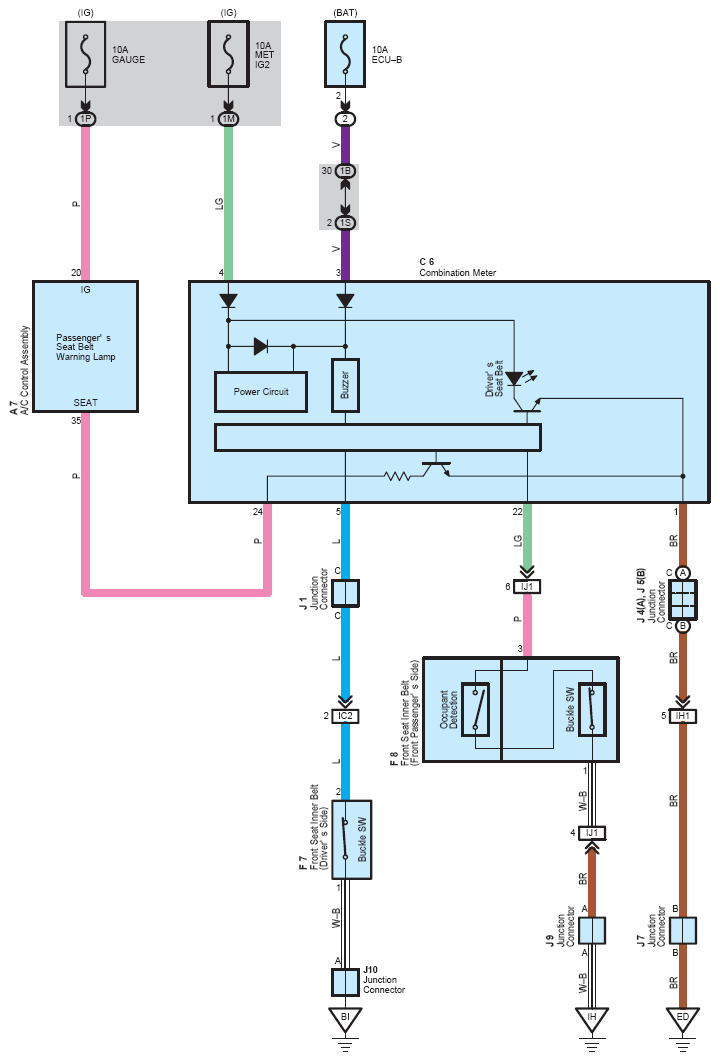

Fig 1: Seat Belt Warning System Wiring Diagram
G08758364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
