OEM System Circuits: Taillight: Notes

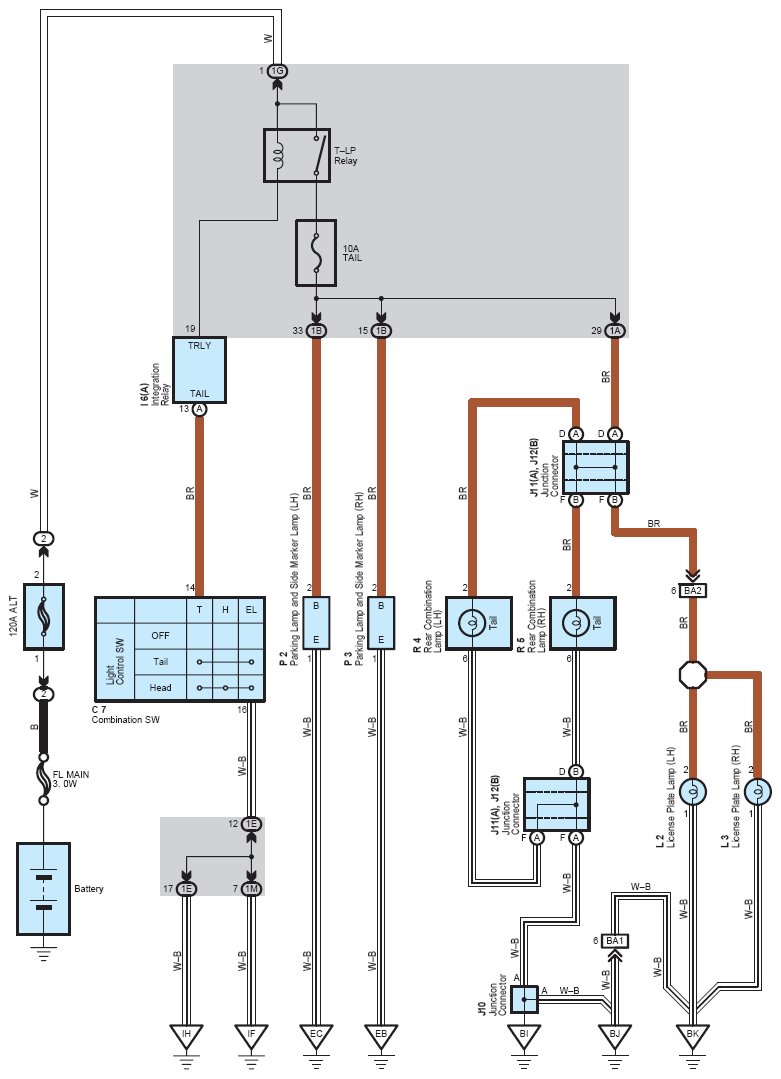

Fig 1: Taillight Wiring Diagram
G08758326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
