Camshaft Timing Oil Control Valve Assembly: Removal

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE ENGINE COVER (see  ON-VEHICLE INSPECTION  )
3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
   1. Disconnect the oil control valve connector.
   2. Remove the bolt and oil control valve.

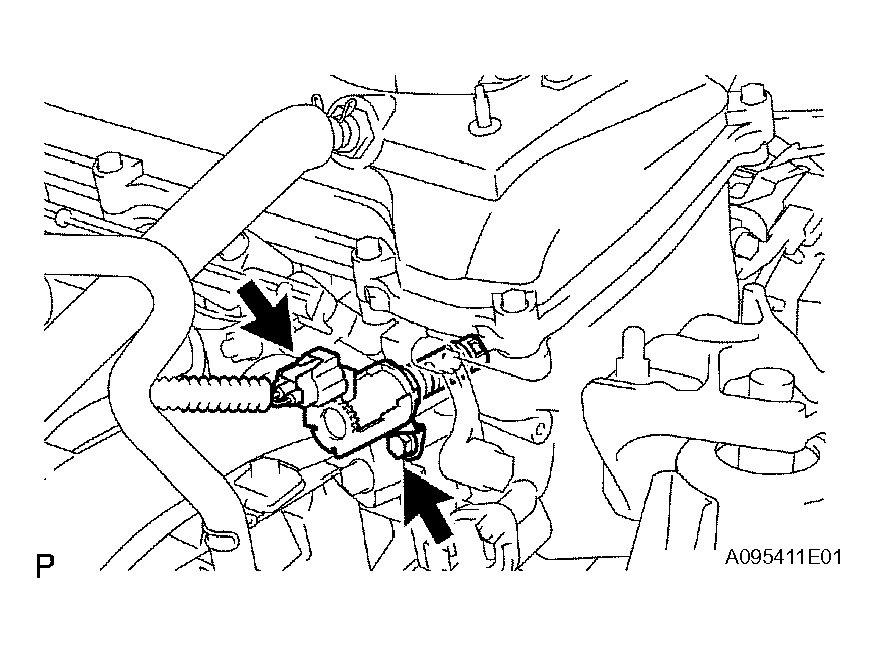

Fig 1: Removing Bolt And Oil Control Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
