Mass Air Flow Meter: Removal

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
   CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE MASS AIR FLOW METER
   1. Disconnect the mass air flow meter connector.
   2. Remove the 2 screws and mass air flow meter.

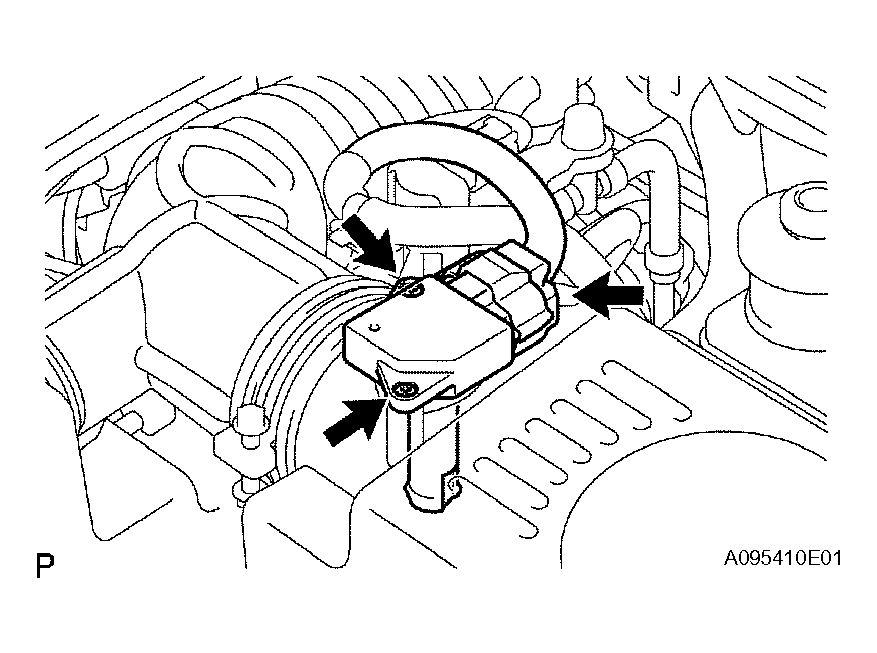

Fig 1: Disconnecting Mass Air Flow Meter Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
