Fuel Pump: Components

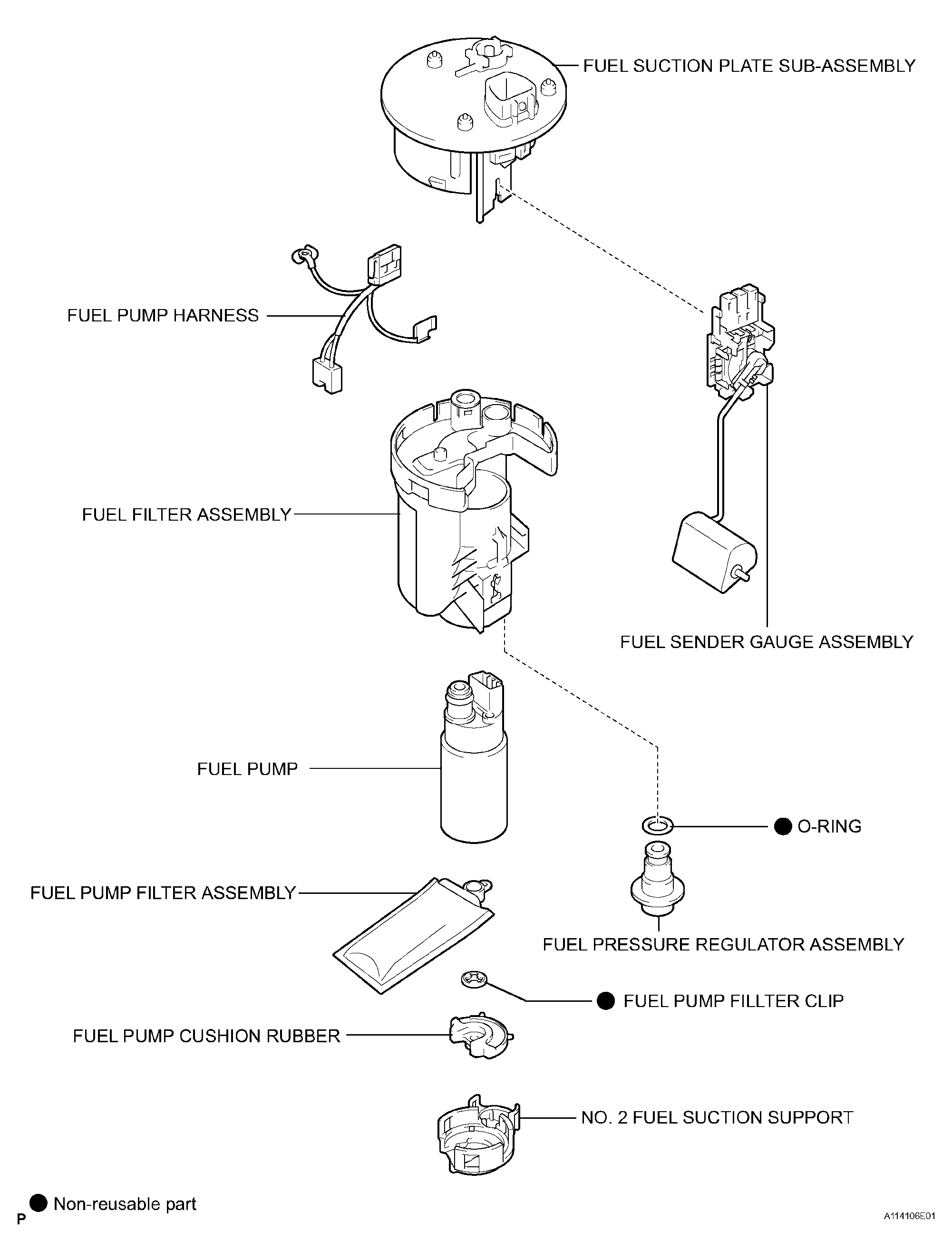

Fig 1: Fuel Pump, Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

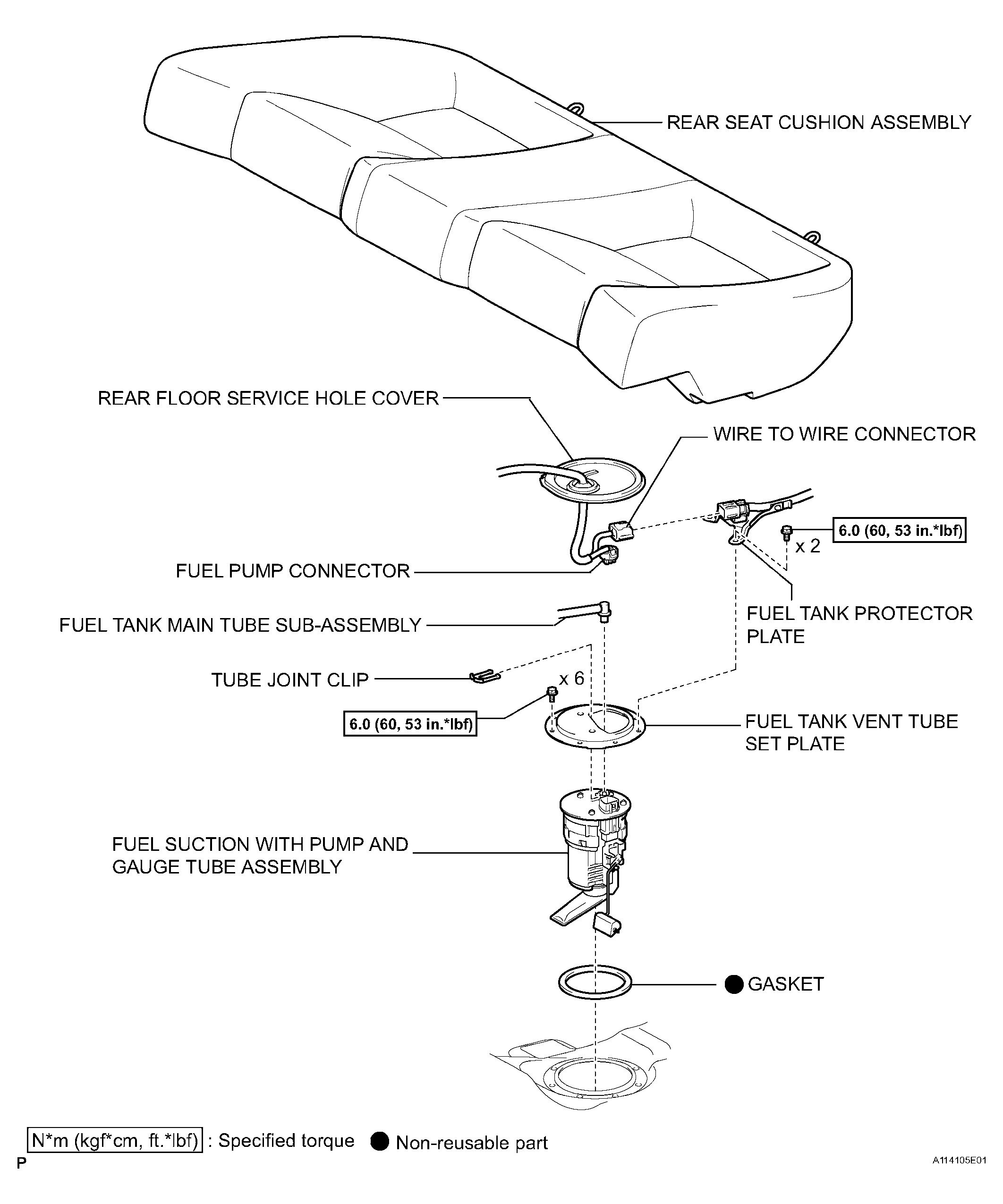

Fig 2: Fuel Pump, Replacement Components With Torque Specifications (2 Of 2)
