Ignition Coil: Installation

INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coil with the 4 bolts.
  Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)

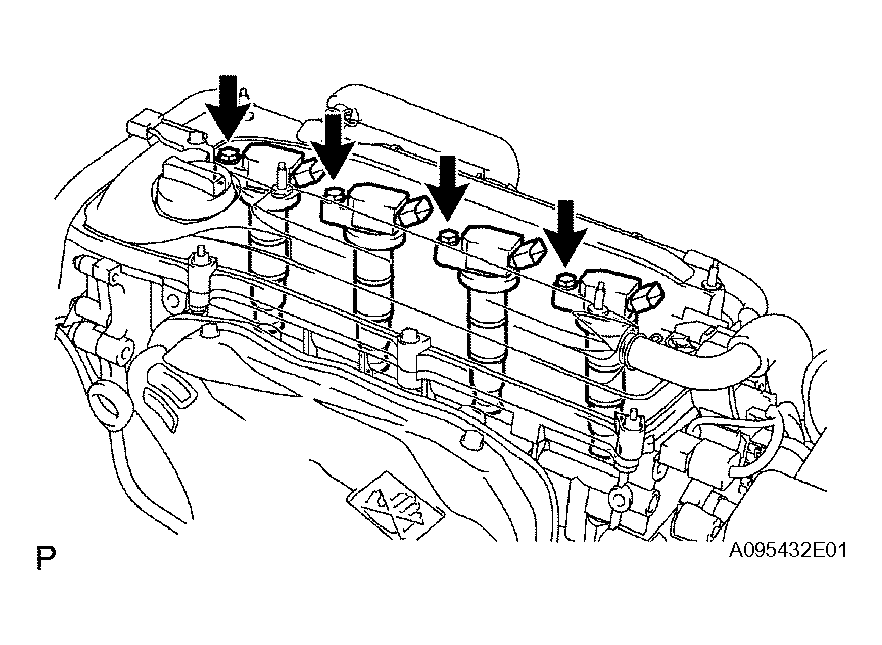

  Fig 1: Installing Ignition Coil With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 4 ignition coil connectors.
INSTALL ENGINE COVER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

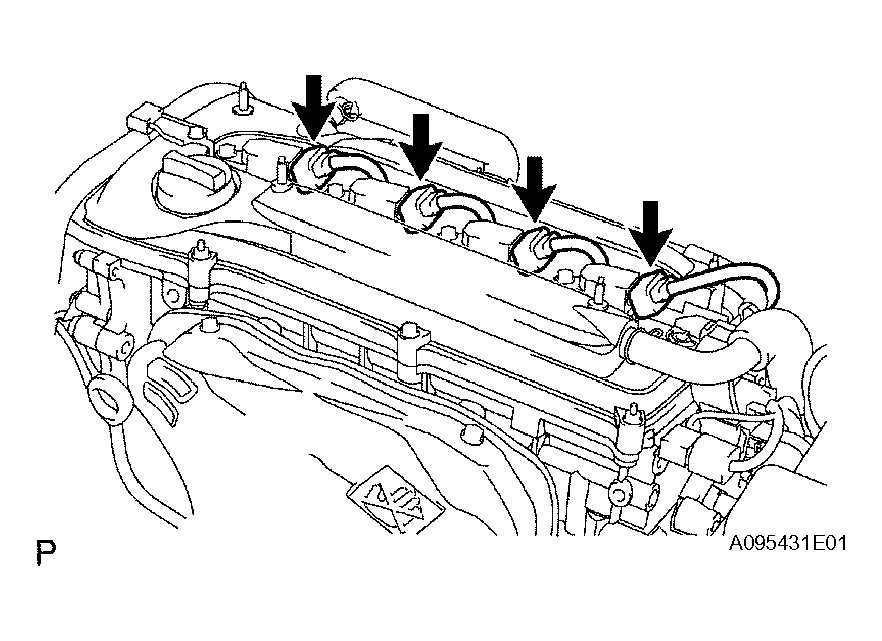

Fig 2: Connecting Ignition Coil Connectors
