Rear Seat Inner Belt Assembly: Components

Fig 1: Identifying Rear Seat Inner Belt Assembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

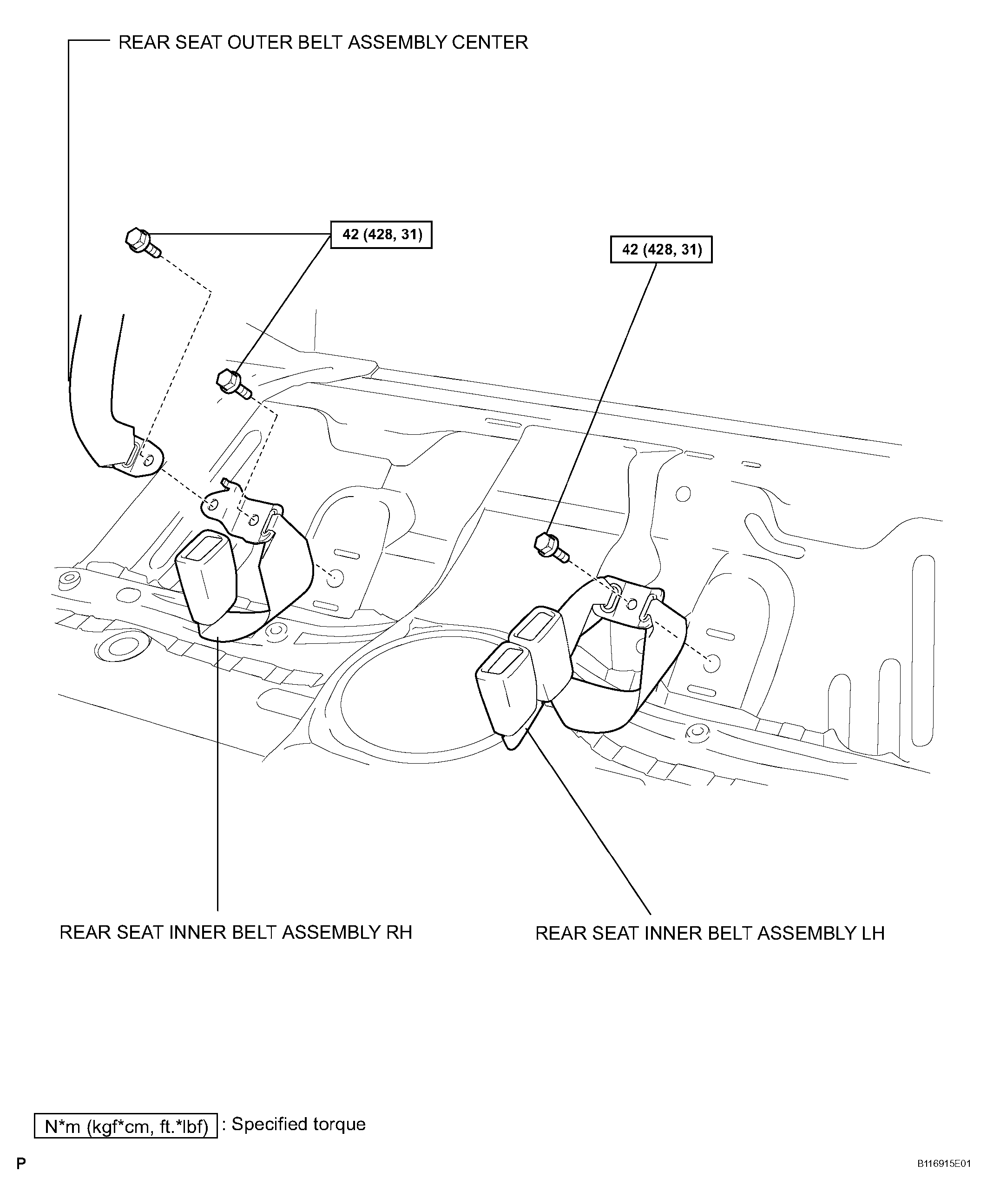

Fig 2: Identifying Rear Seat Inner Belt Assembly Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
