Terminals Of ECM

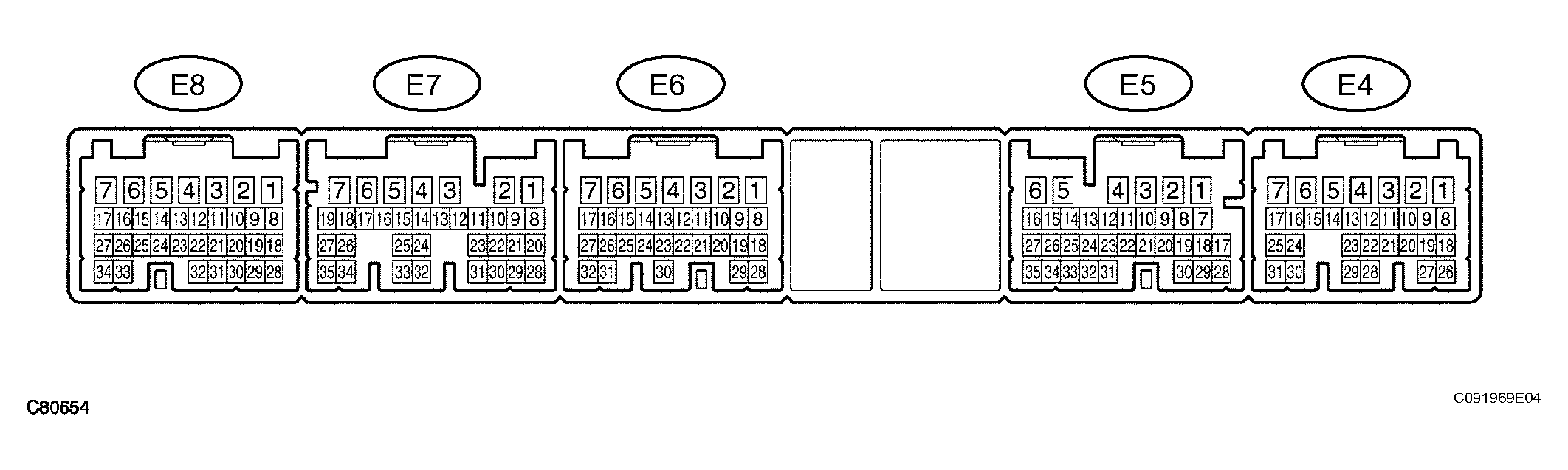

Fig 1: Identifying Terminals Of ECM
G04222166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition".

Look under "Symbols (Terminal No.)" for the terminals to be inspected. The standard voltage between the terminals is shown under "Specified Condition".

Use the illustration above as a reference for the ECM terminals.

TERMINAL SPECIFICATION CHART

Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition
L (E5-8) - E1 (E6-1) LG - L L shift position switch signal Ignition switch ON and transfer shift lever on L 10 to 14 V
L (E5-8) - E1 (E6-1) LG - L L shift position switch signal Ignition switch ON and transfer shift lever not on L Below 1 V
2 (E5-9) - E1 (E6-1) R - L 2 shift position switch signal Ignition switch ON and transfer shift lever on 2 and L 10 to 14 V
2 (E5-9) - E1 (E6-1) R - L 2 shift position switch signal Ignition switch ON and transfer shift lever not on 2 and L Below 1 V
R (E5-11) - E1 (E6-1) P - L R shift position switch signal Ignition switch ON and transfer shift lever on R 10 to 14 V
R (E5-11) - E1 (E6-1) P - L R shift position switch signal Ignition switch ON and transfer shift lever not on R Below 1 V
D (E5-10) - E1 (E6-1) W - L D shift position switch signal Ignition switch ON and transfer shift lever on D or 3 10 to 14 V
D (E5-10) - E1 (E6-1) W - L D shift position switch signal Ignition switch ON and transfer shift lever not on D or 3 Below 1 V
3 (E5-16) - E1 (E6-1) G - L 3 shift position switch signal Ignition switch ON and transfer shift lever on 3 10 to 14 V
3 (E5-16) - E1 (E6-1) G - L 3 shift position switch signal Ignition switch ON and transfer shift lever not on 3 Below 1 V
STP (E5-19) - E1 (E6-1) L - L Stop light switch signal Brake pedal is depressed Between 7.5 V and 14 V
STP (E5-19) - E1 (E6-1) L - L Stop light switch signal Brake pedal is released Below 1.5 V
SLT+ (E7-13) - SLT- (E7-12) BR - GR SLT solenoid signal Engine idle speed Pulse generation (see waveform 1)
SL2+ (E7-15) - SL2- (E7-14) LG - V SL2 solenoid signal Engine idle speed Pulse generation (see waveform 2)
SL2+ (E7-15) - SL2- (E7-14) LG - V SL2 solenoid signal Ignition switch ON Below 1 V
SL2+ (E7-15) - SL2- (E7-14) LG - V SL2 solenoid signal 1st or 2nd gear 10 to 14 V
SL2+ (E7-15) - SL2- (E7-14) LG - V SL2 solenoid signal 3rd or O/D gear Below 1 V
SL1+ (E7-19) - SL1- (E7 - 18) B - P SL1 solenoid signal Engine idle speed Pulse generation (see waveform 3)
SL1+ (E7-19) - SL1- (E7 - 18) B - P SL1 solenoid signal Ignition switch ON 10 to 14 V
SL1+ (E7-19) - SL1- (E7 - 18) B - P SL1 solenoid signal 1st gear 10 to 14 V
SL1+ (E7-19) - SL1- (E7 - 18) B - P SL1 solenoid signal Not on 1st gear Below 1 V
S4 (E7-11) - E1 (E6-1) V - L S4 solenoid signal Ignition switch ON Below 1 V
S4 (E7-11) - E1 (E6-1) V - L S4 solenoid signal O/D gear 10 to 14 V
S4 (E7-11) - E1 (E6-1) V - L S4 solenoid signal Not on O/D gear Below 1 V
DSL (E7-9) - E1 (E6-1) Y - L DSL solenoid signal Vehicle speed 65 km/h (40 mph), lock up (ON to OFF) Below 1 V
DSL (E7-9) - E1 (E6-1) Y - L DSL solenoid signal Vehicle driving under lockup position Pulse generation (see waveform 4)
THO1 (E7-32) - E2 (E8-28) G - R ATF temperature sensor signal ATF temperature: 115°C (239°F) or more Below 1.5 V
NT+ (E7-27) - NT- (E7-35) L - LG Speed sensor (NT) signal Vehicle speed 20 km/h (12 mph) Pulse generation (see waveform 5)
NSW (E8-16) - E1 (E6-1) Y - L PNP switch signal Ignition switch ON and shift lever on P or N Below 2 V
NSW (E8-16) - E1 (E6-1) Y - L PNP switch signal Ignition switch ON and shift lever not on P or N 10 to 14 V
NC+ (E7-26) - NC- (E7-34) R - G Speed sensor (NC) signal Vehicle speed 30 km/h (19 mph): (3rd gear) Engine speed 1,400 RPM Pulse generation (see waveform 6)
  1. Waveform 1 (Reference)
    Waveform 1 (Reference)

    Item Content
    Symbols (Terminal No.) SLT+ (E7-13) - SLT- (E7-12)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition Engine idle speed
    Fig 2: Waveform Graph
    G04222167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Waveform 2 (Reference)
    WAVEFORM 2 (REFERENCE)

    Item Content
    Symbols (Terminal No.) SL2+ (E7-15) - SL2- (E7-14)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition Engine idle speed
    Fig 3: Waveform Graph
    G04222168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Waveform 3 (Reference)
    WAVEFORM 3 (REFERENCE)

    Item Content
    Symbols (Terminal No.) SL1+ (E7-19) - SL1- (E7-18)
    Tool Setting 5 V/DIV., 1 msec./DIV.
    Condition Engine idle speed
    Fig 4: Waveform Graph
    G04222169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Waveform 4 (Reference)
    WAVEFORM 4 (REFERENCE)

    Item Content
    Symbols (Terminal No.) DSL (E7-9) - E1 (E6-1)
    Tool Setting 10 V/DIV., 100 msec./DIV.
    Condition Vehicle speed 65 km/h (40 mph), lockup (ON to OFF)
    Fig 5: Waveform Graph
    G04222170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Waveform 5 (Reference)
    WAVEFORM 5 (REFERENCE)

    Item Content
    Symbols (Terminal No.) NT+ (E7-27) - NT- (E7-35)
    Tool Setting 5 V/DIV., 0.5 msec./DIV.
    Condition Vehicle speed 20 km/h (12 mph)
    Fig 6: Waveform Graph
    G04222171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Waveform 6 (Reference)
    WAVEFORM 6 (REFERENCE)

    Item Content
    Symbols (Terminal No.) NC+ (E7-26) - NC- (E7-34)
    Tool Setting 1 V/DIV., 1 msec./DIV.
    Condition Vehicle speed 30 km/h (19 mph): (3rd gear)
    Engine speed 1,400 RPM
    Fig 7: Waveform Graph
    G04222172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
