Transmission Control Cable Assembly: Installation

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Put the cable into the body.
2. Install the No. 2 shift cable grommet retainer to the floor shift cable.
3. Install the floor shift cable as shown in the illustration.
  HINT:

  Securely engage the claws.

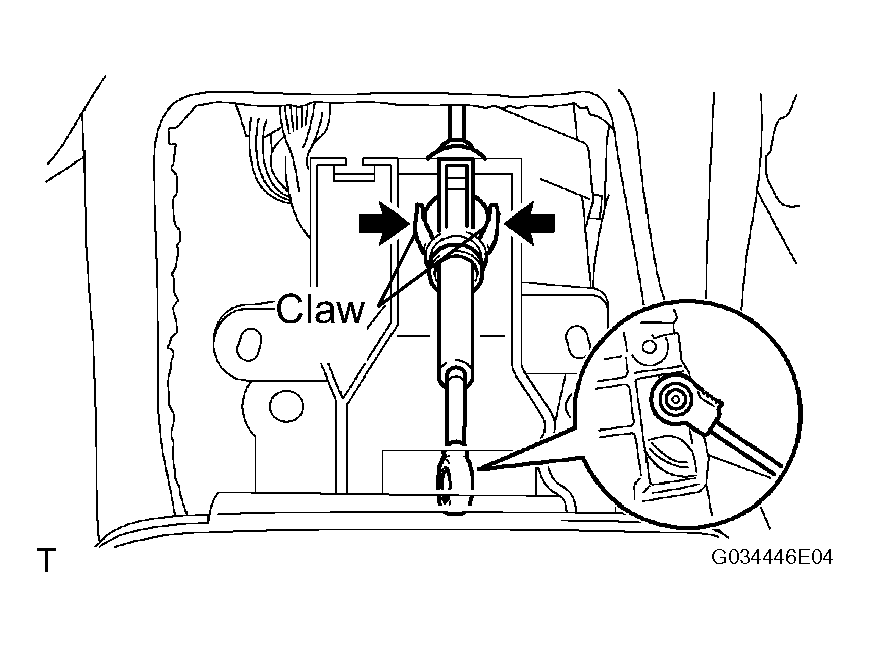

  Fig 1: Installing Floor Shift Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the No. 2 shift cable grommet retainer with the 2 bolts.
  Torque: 5.0 N*m (50 kgf*cm, 43 in.*lbf)

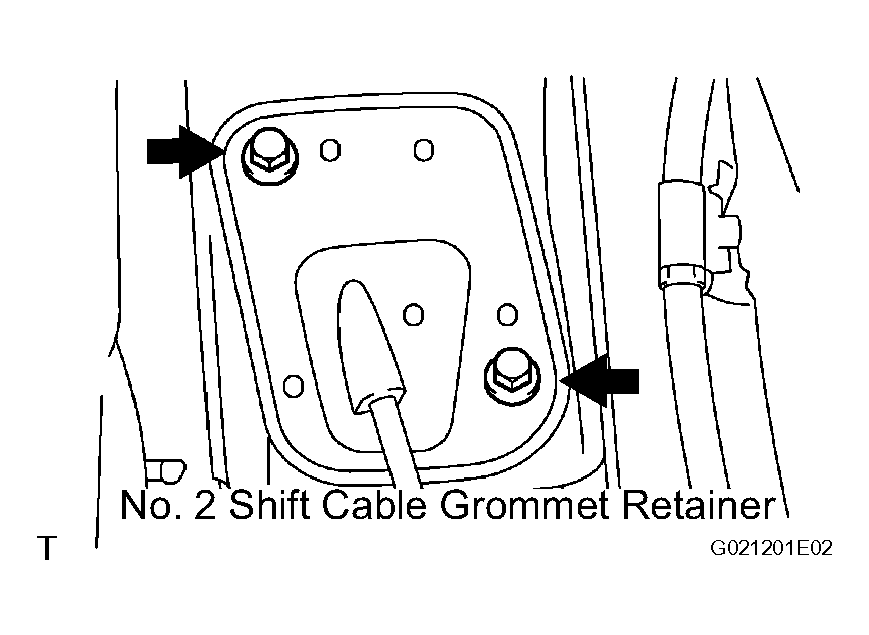

  Fig 2: Installing No. 2 Shift Cable Grommet Retainer With 2 Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the cable to the control cable clamp.

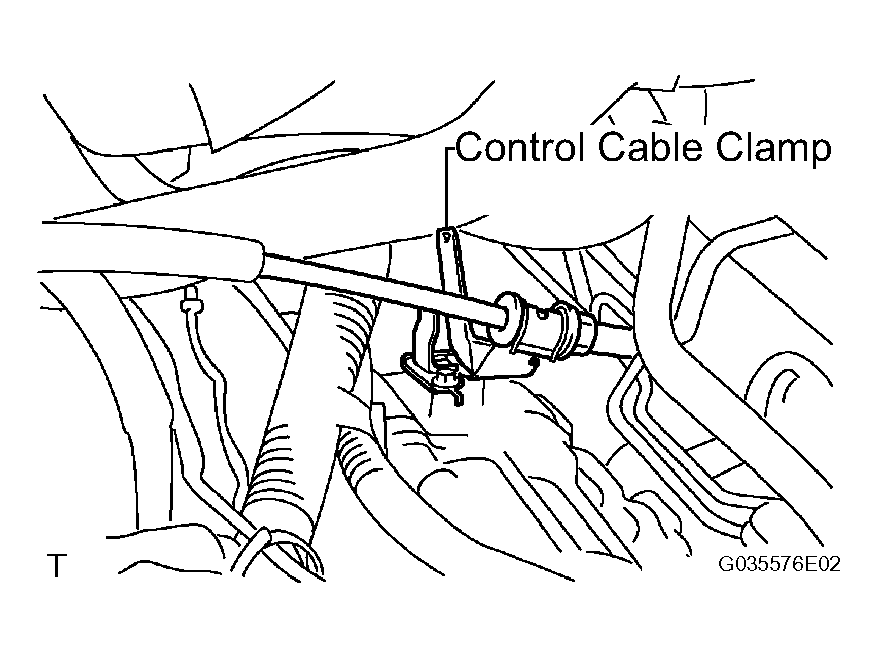

  Fig 3: Connecting Cable To Control Cable Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cable to the bracket with the clip.

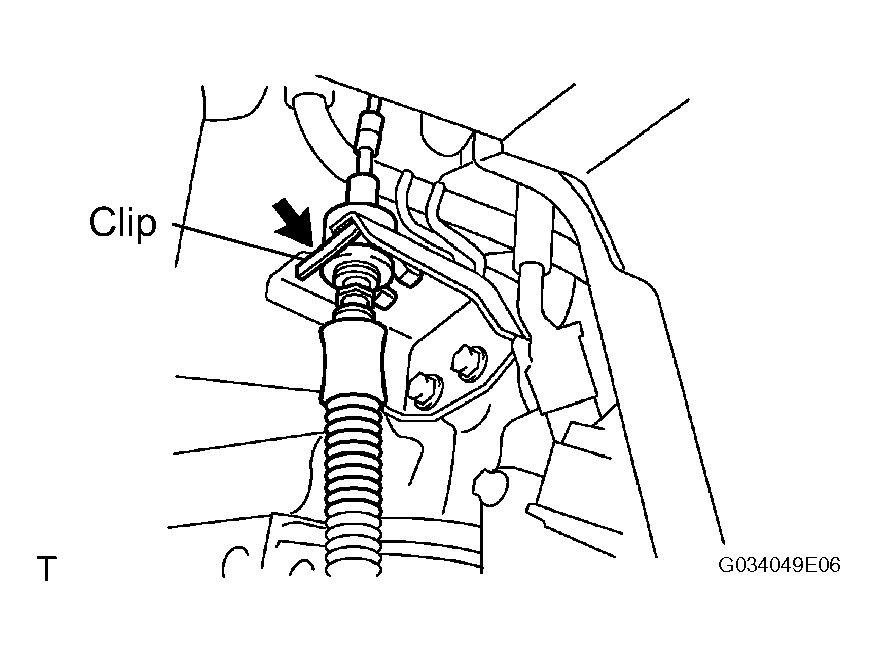

  Fig 4: Connecting Cable To Bracket With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Temporarily install the cable to the control shaft lever with the nut.
INSTALL AIR CONDITIONING RADIATOR ASSEMBLY (See INSTALLATION )
INSTALL EXHAUST PIPE ASSEMBLY
1. Install exhaust pipe (See INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
INSPECT SHIFT LEVER POSITION (See ADJUSTMENT )
ADJUST SHIFT LEVER POSITION (See ADJUSTMENT )
INSTALL ENGINE UNDER COVER LH

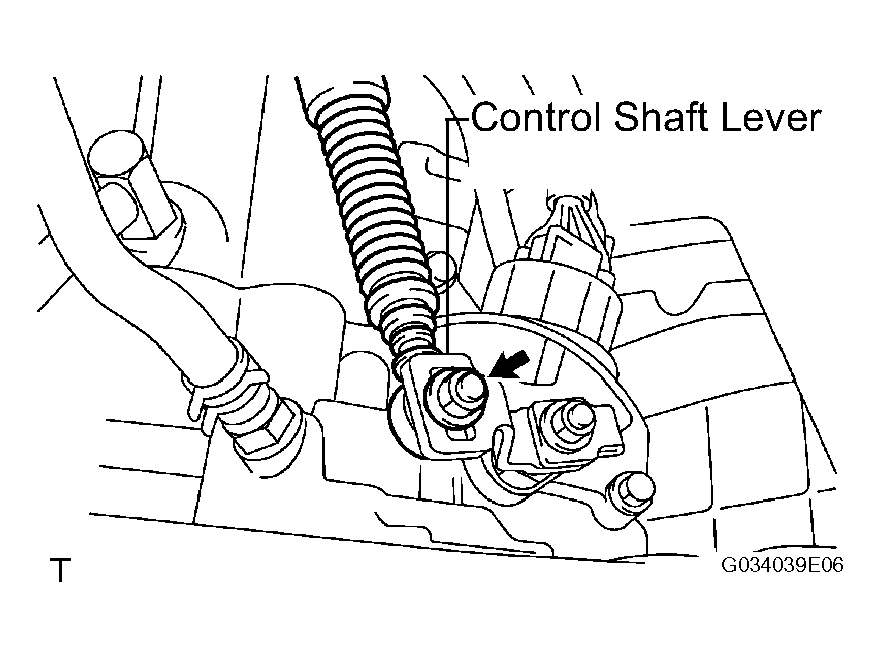

Fig 5: Installing Cable To Control Shaft Lever With Nut
