Transmission Control Cable Assembly: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE AIR CONDITIONING RADIATOR ASSEMBLY (See REMOVAL )
REMOVE EXHAUST PIPE ASSEMBLY
1. Remove the exhaust pipe (See EXHAUST PIPE ).
REMOVE ENGINE UNDER COVER LH
DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the nut from the control shaft lever.

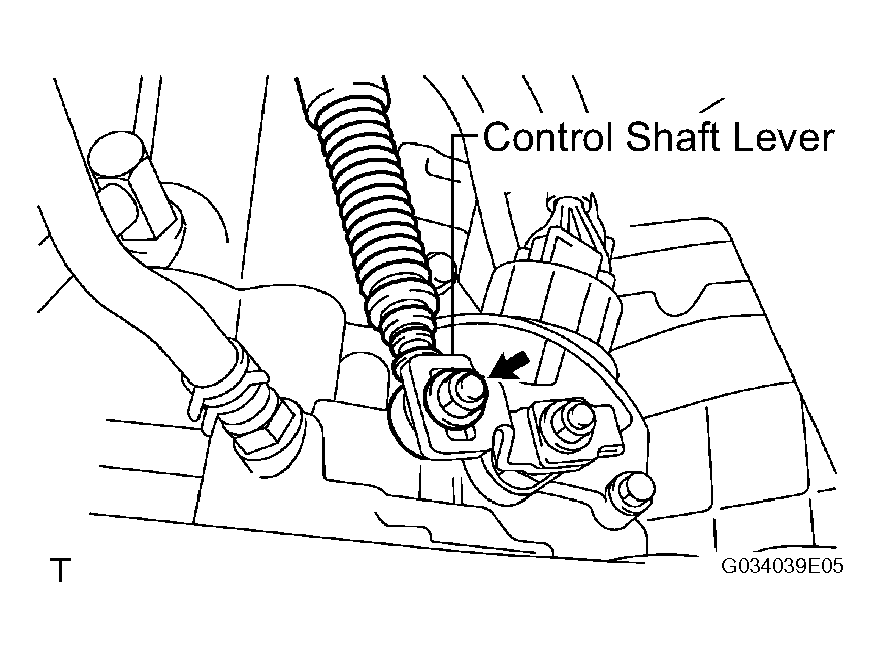

  Fig 1: Removing Nut From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cable from the control shaft lever.

  Fig 2: Disconnecting Cable From Control Shaft Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

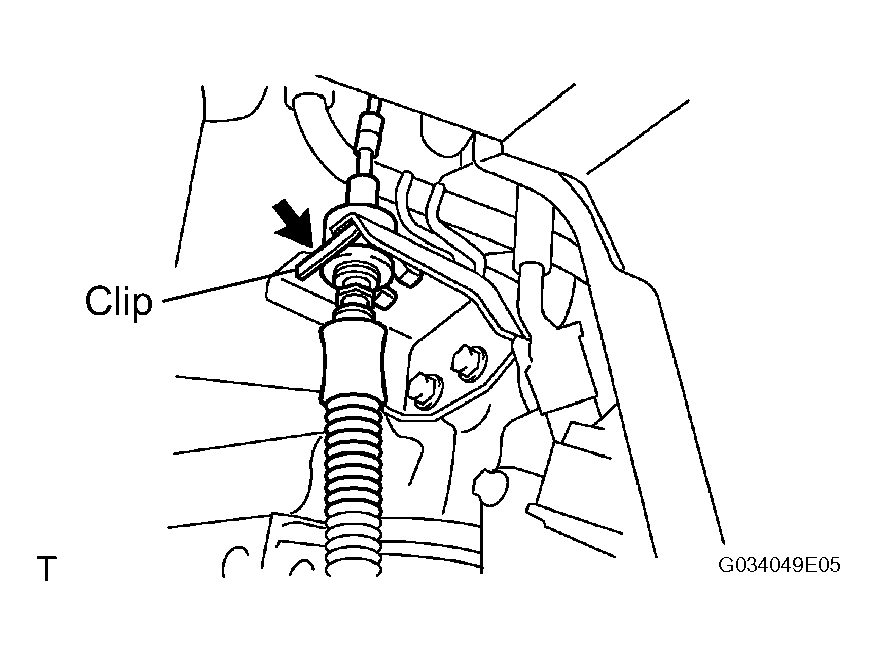

3. Remove the clip and disconnect the cable from the control cable bracket.
4. Disconnect the cable from the control cable clamp.

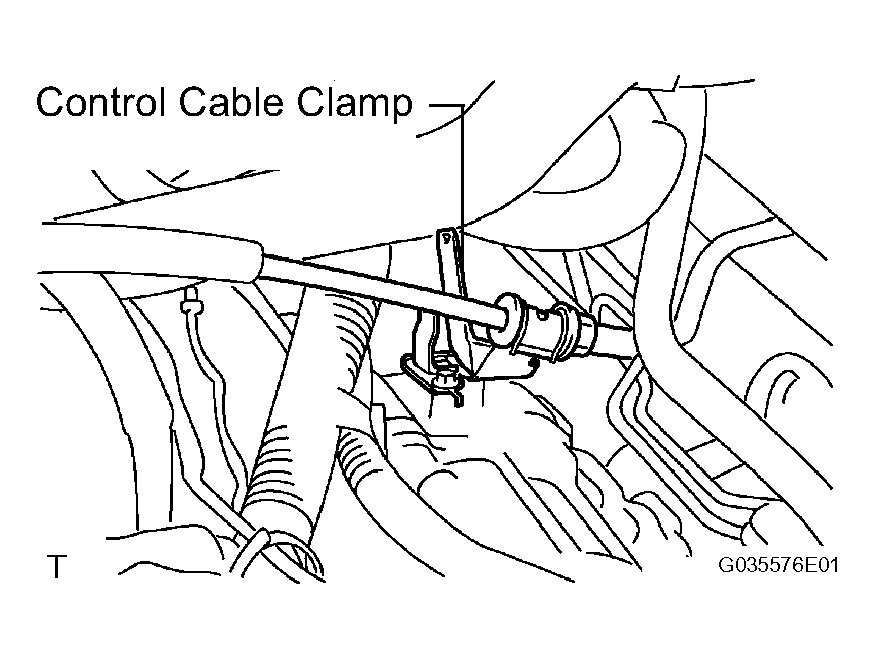

Fig 3: Disconnecting Cable From Control Cable Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Remove the 2 bolts and disconnect the No. 2 shift cable grommet retainer.

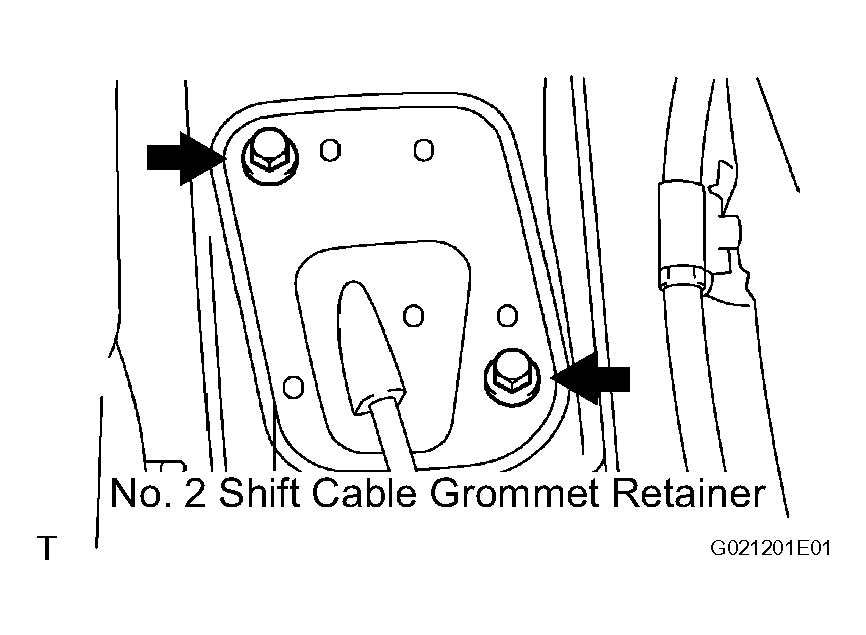

  Fig 4: Disconnecting 2 Shift Cable Grommet Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the floor shift cable from the transmission floor shift assembly.
3. Pull out the cable from the body.
4. Remove the No. 2 shift cable grommet retainer.

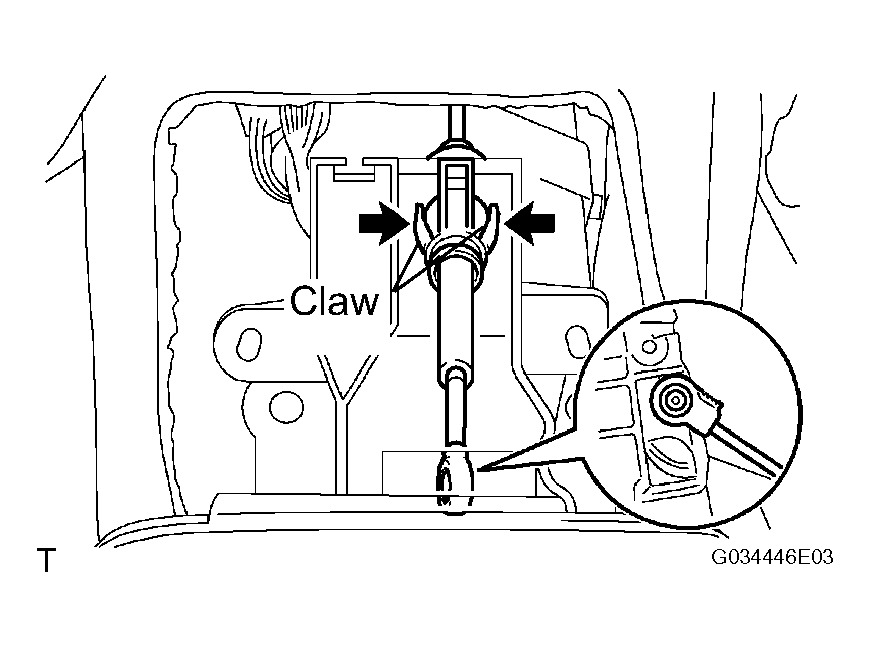

Fig 5: Removing No. 2 Shift Cable Grommet Retainer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
