Roof Headlining: Components

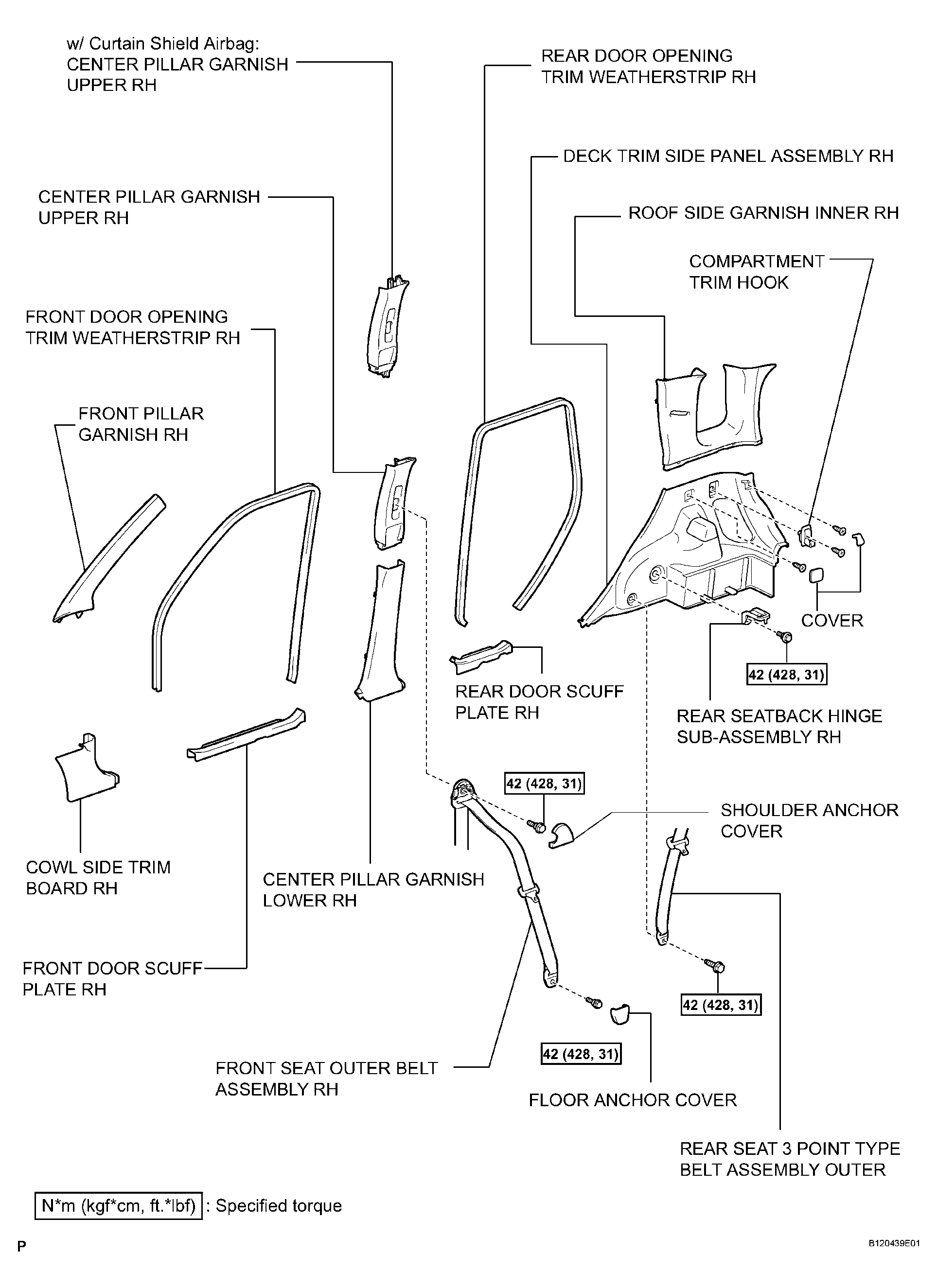

Fig 1: Identifying Roof Headlining Replacement Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

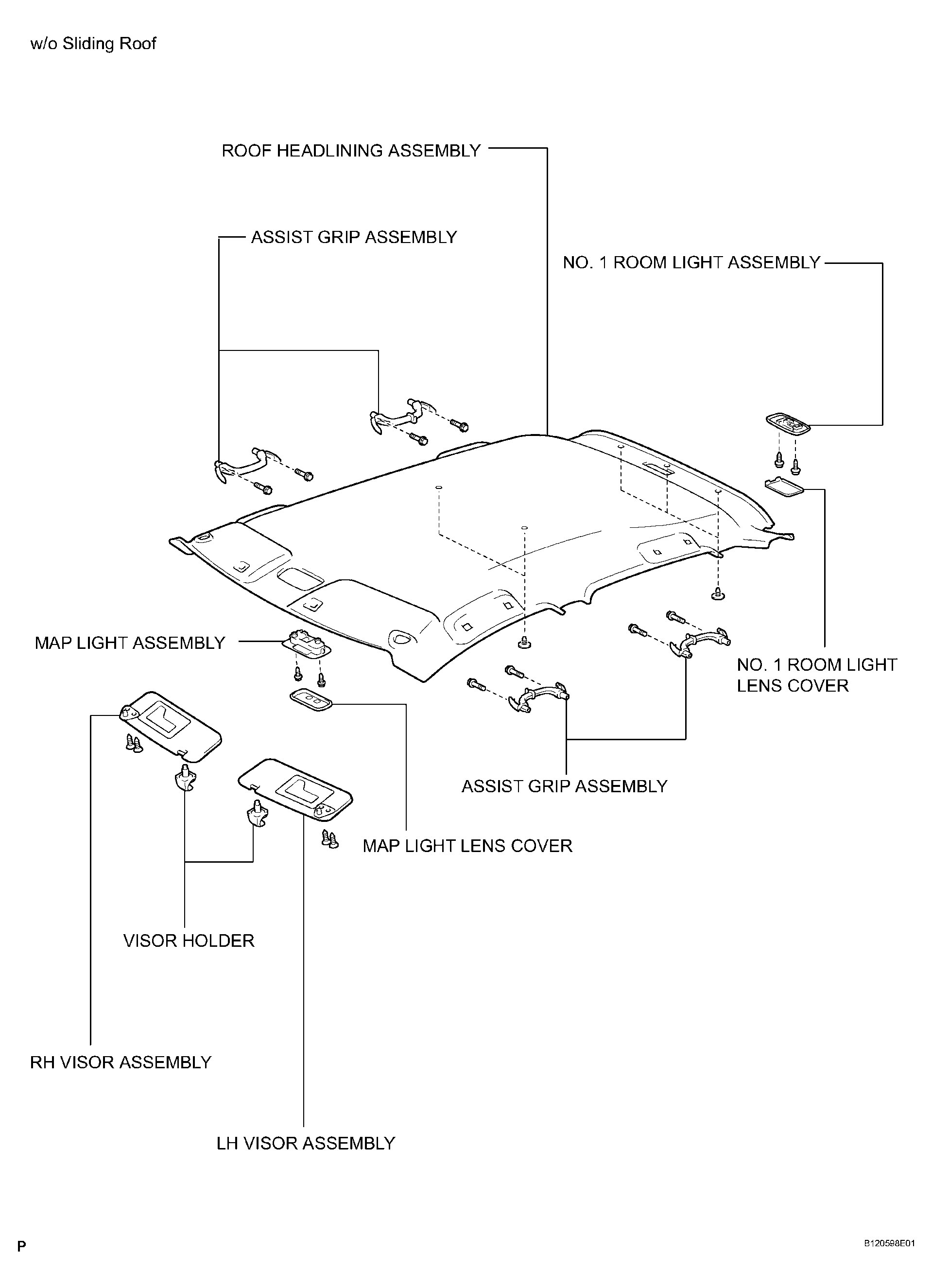

Fig 2: Identifying Roof Headlining Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

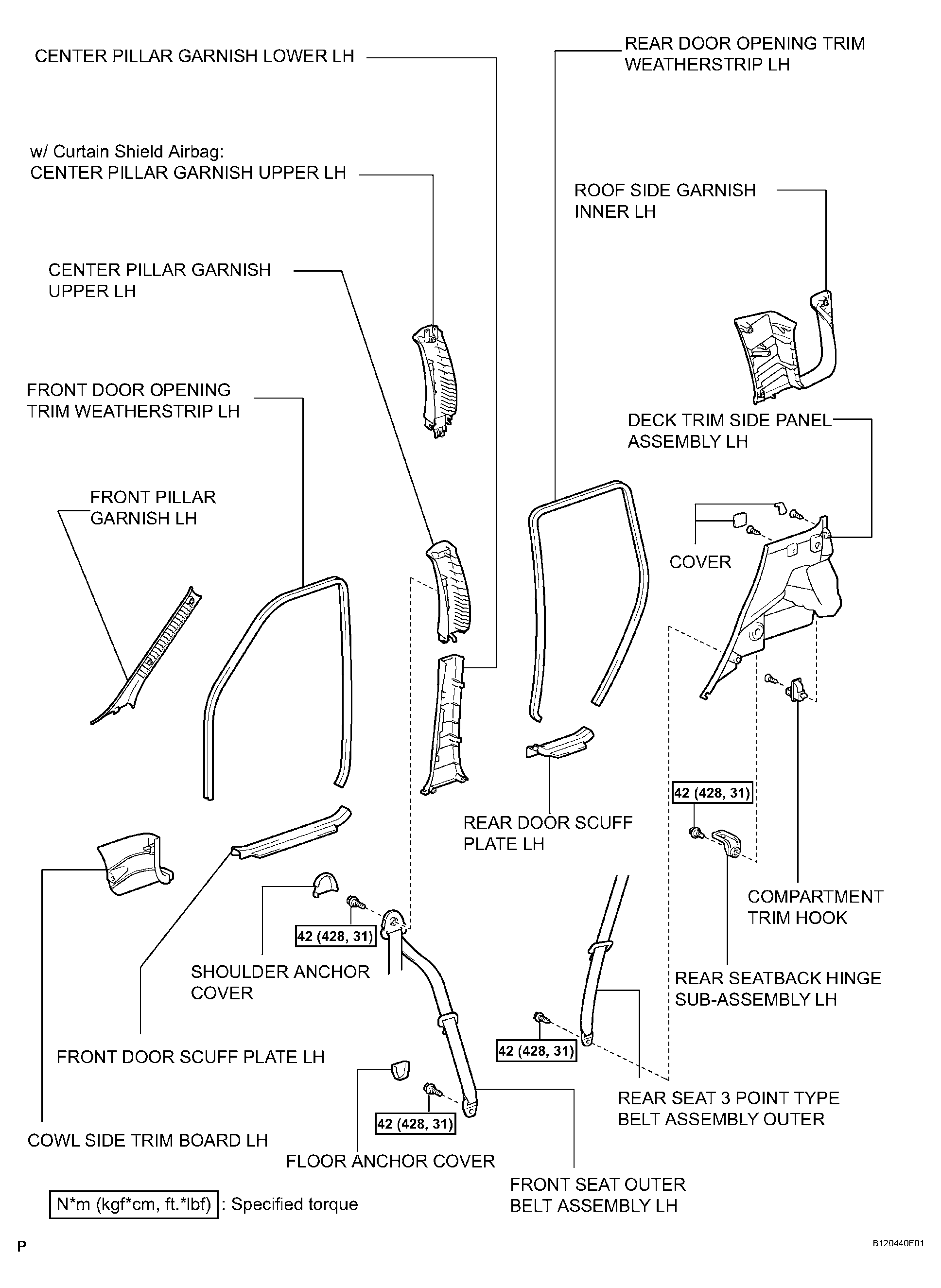

Fig 3: Identifying Roof Headlining Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

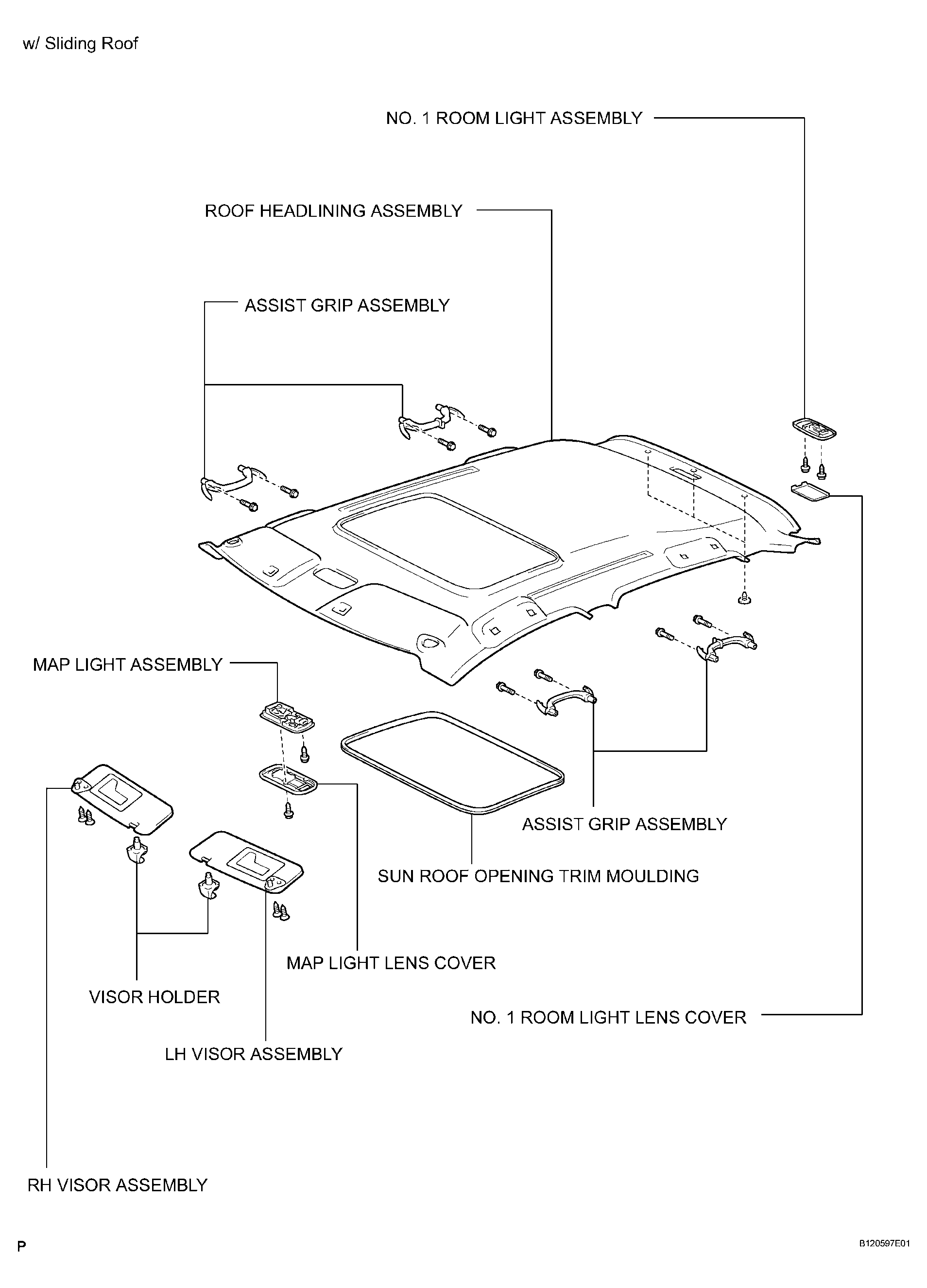

Fig 4: Identifying Roof Headlining Replacement Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Roof Headlining Replacement Components (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Roof Headlining Replacement Components (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
