System Diagram

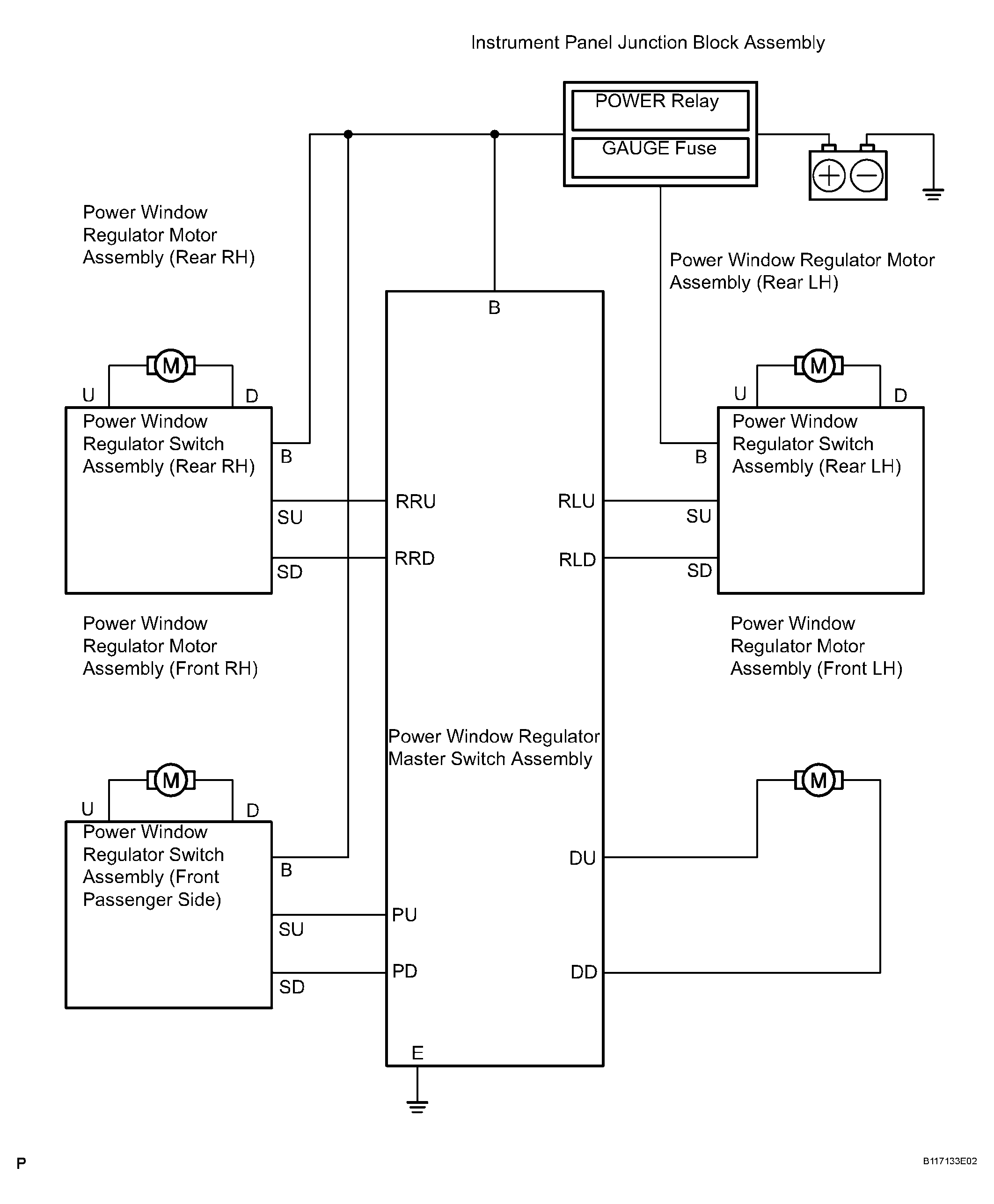

  1. POWER WINDOW CONTROL SYSTEM DIAGRAM
    Fig 1: Power Window Control System Diagram
    G04158987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

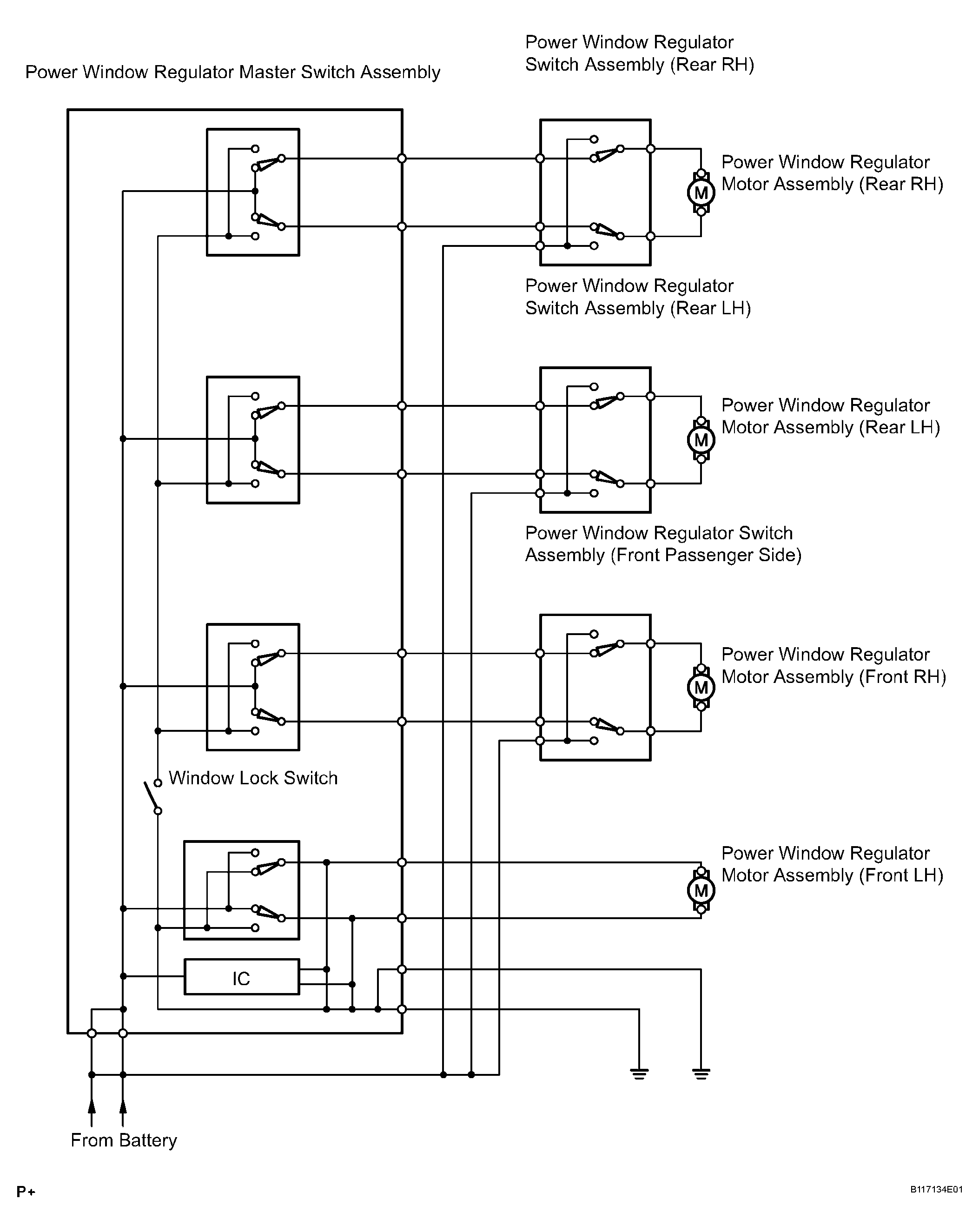

  2. POWER WINDOW SWITCH INNER CIRCUIT
    Fig 2: Power Window Switch Inner Circuit Diagram
    G04158988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
