Windshield Glass: Components

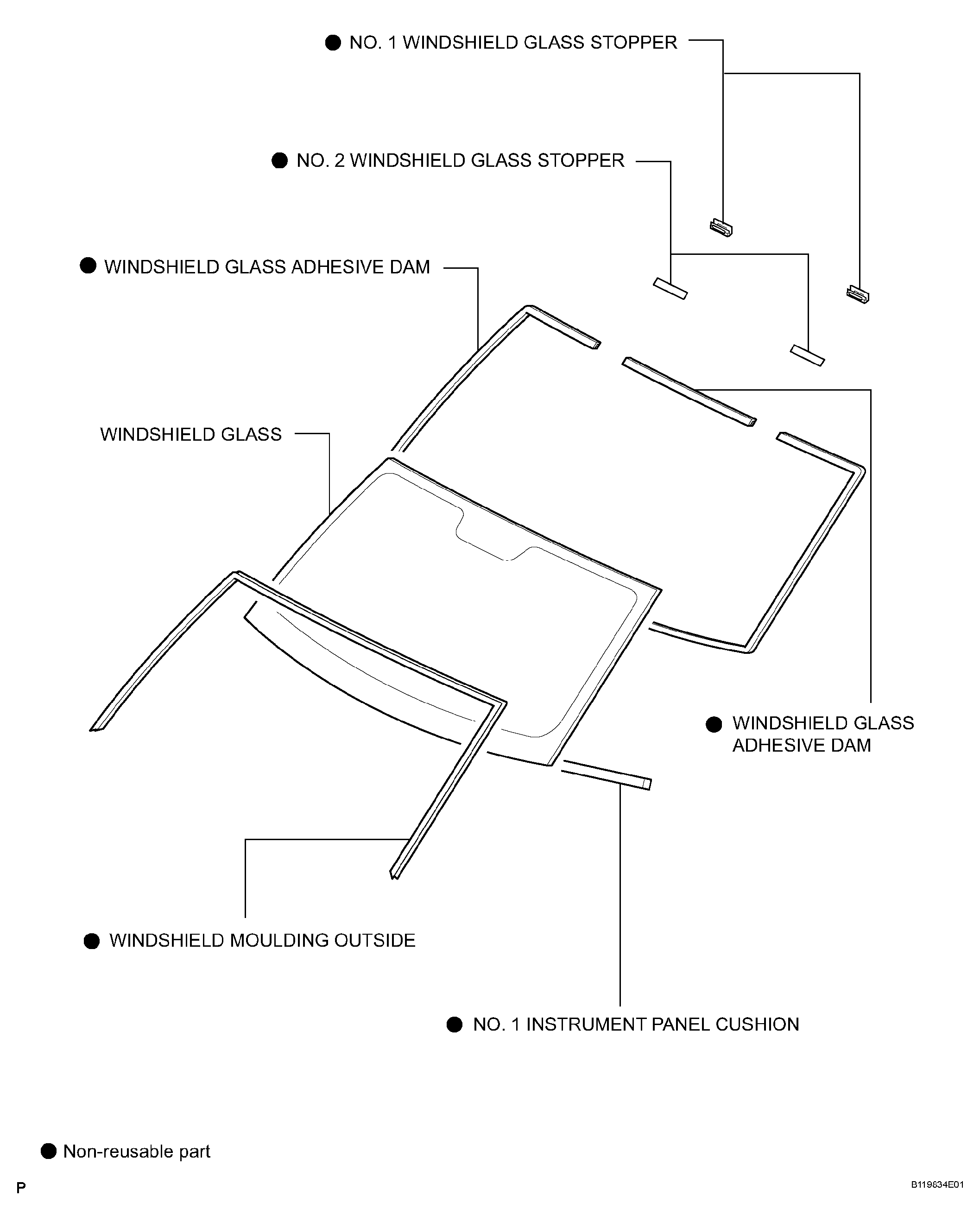

Fig 1: Identifying Windshield Glass And Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Windshield Glass And Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Windshield Glass And Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
