ABS without VSC: Notes

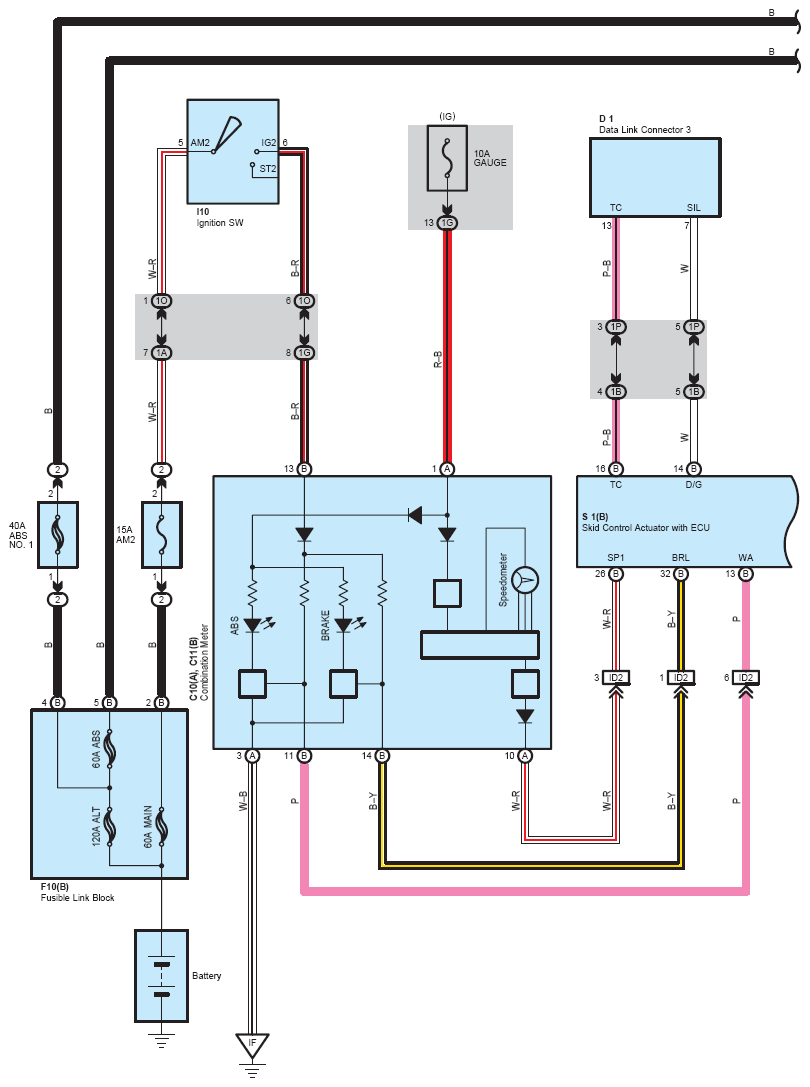

Fig 1: ABS Without VSC System Wiring Diagram (1 Of 2)
G08758684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

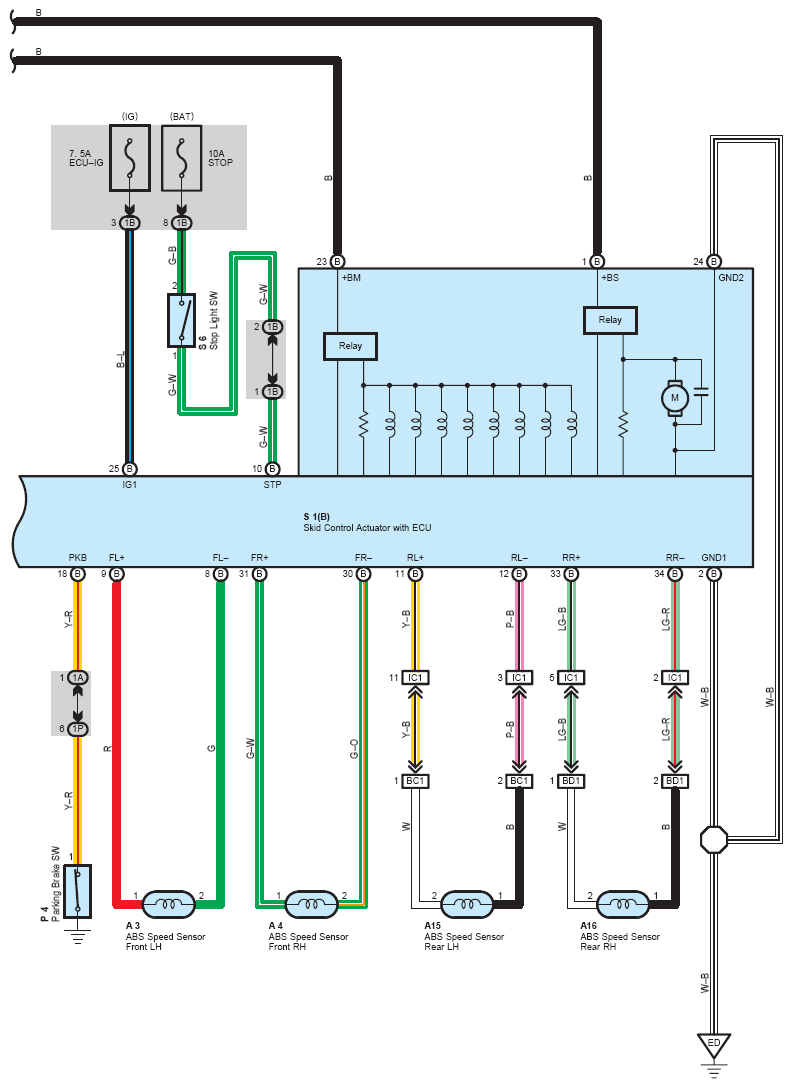

Fig 2: ABS Without VSC System Wiring Diagram (2 Of 2)
G08758685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
