OEM System Circuits: Headlight: Notes

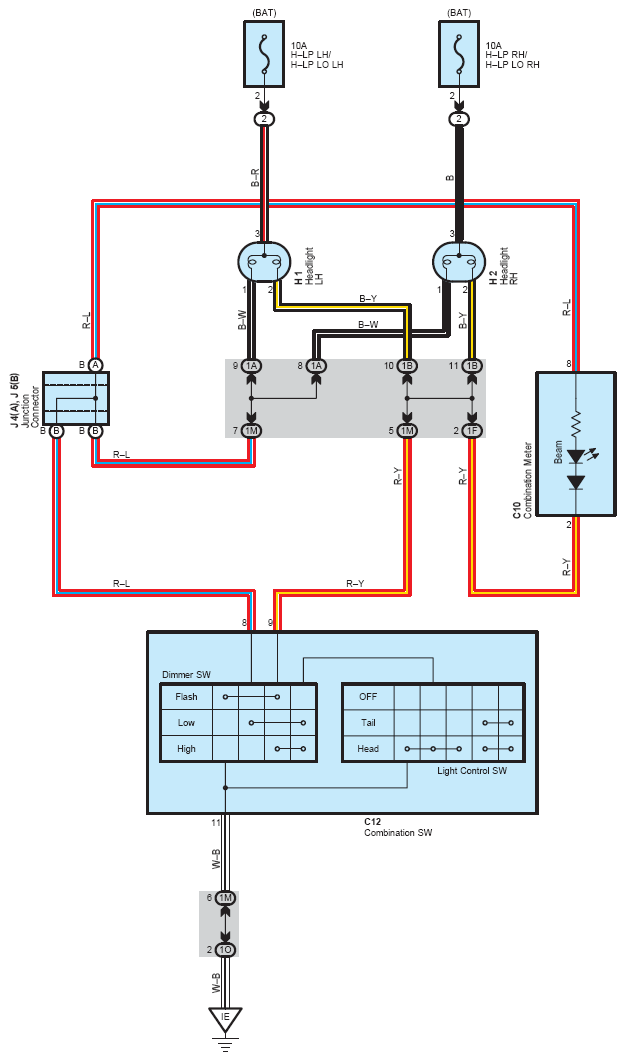

Fig 1: Headlight System Wiring Diagram
G08758657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
