Interior Light: Notes

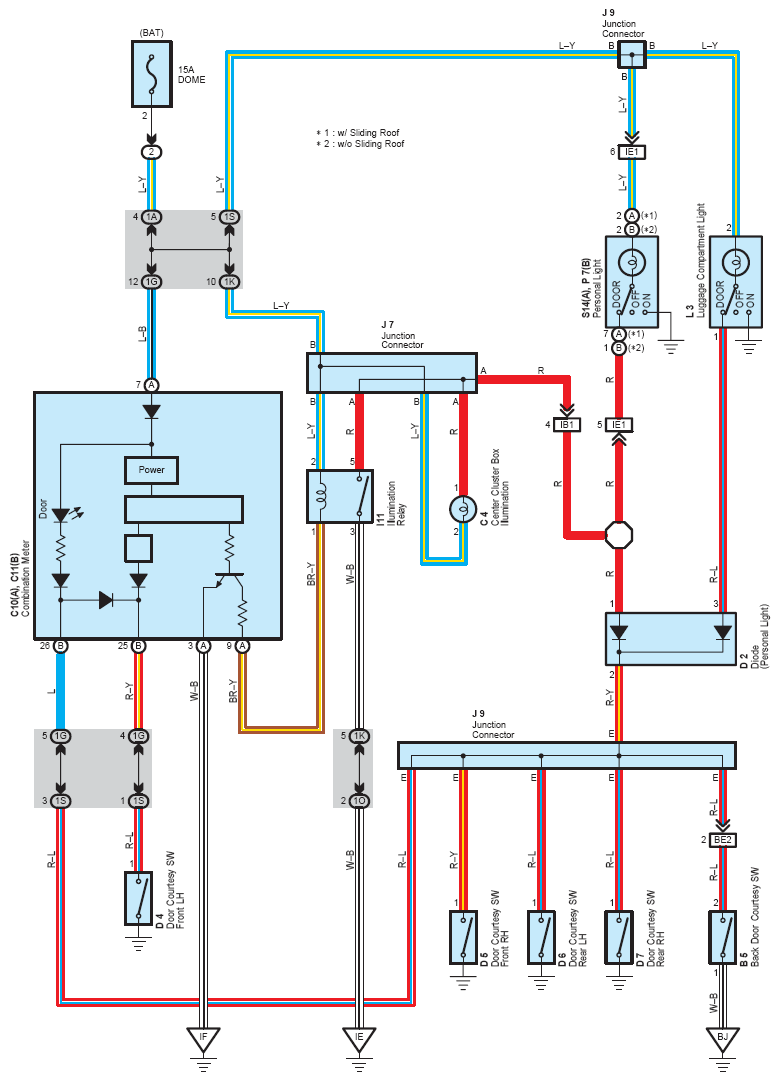

Fig 1: Interior Light System Wiring Diagram
G08758661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
