Lower Instrument Panel: Disassembly

REMOVE NO. 2 HEATER TO REGISTER DUCT
1. Using nippers, cut off the ultrasonic welding portion as shown in the illustration to remove the No. 2 heater to register duct from the instrument panel sub-assembly.

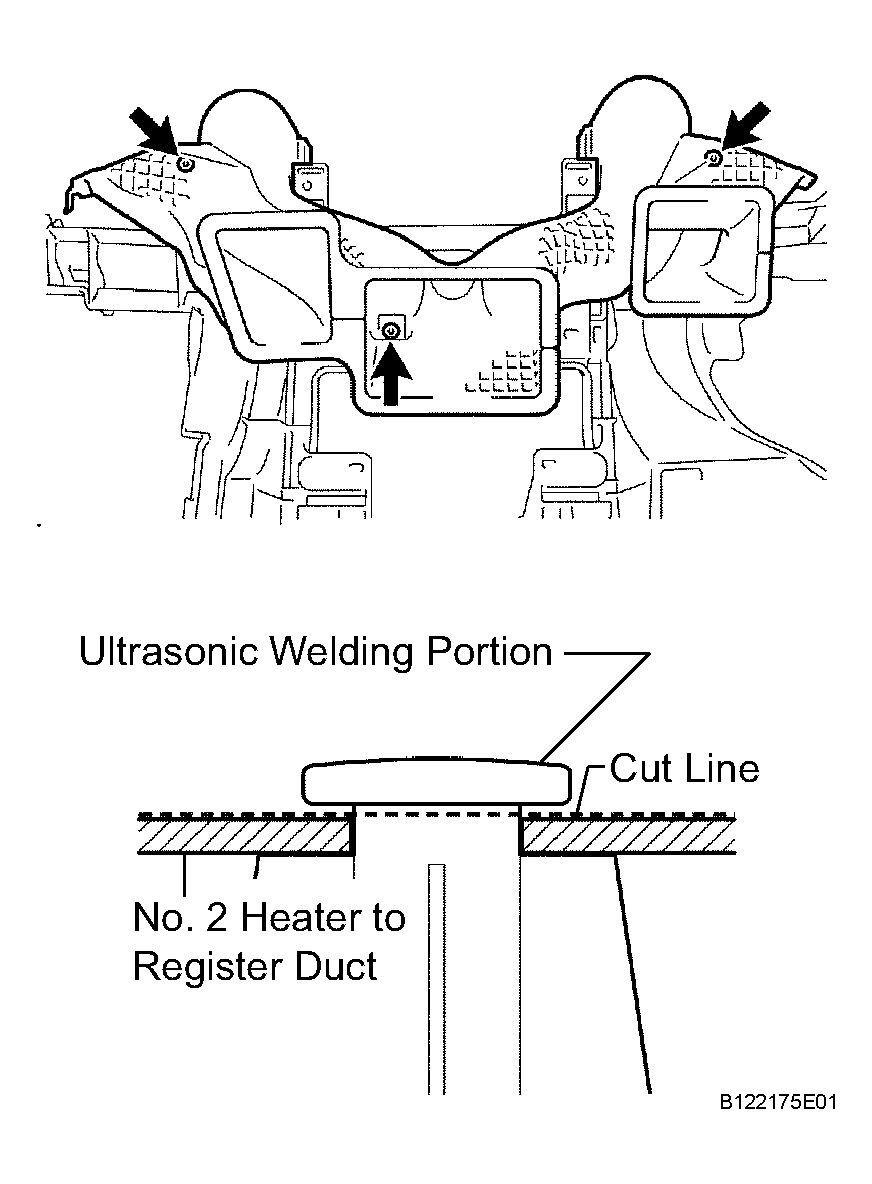

  Fig 1: Removing Heater To Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GLOVE COMPARTMENT DOOR LOCK MOUNTING BRACKET
1. Remove the screw and glove compartment door lock mounting bracket.

  Fig 2: Removing Screw And Glove Compartment Door Lock Mounting Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
