Upper Instrument Panel: Installation

  1. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
    1. Set the instrument panel.
    2. Connect the connectors.
    3. Attach the 3 clips and 9 claws to install the instrument panel.
    4. Install the 4 screws and bolt.

      Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

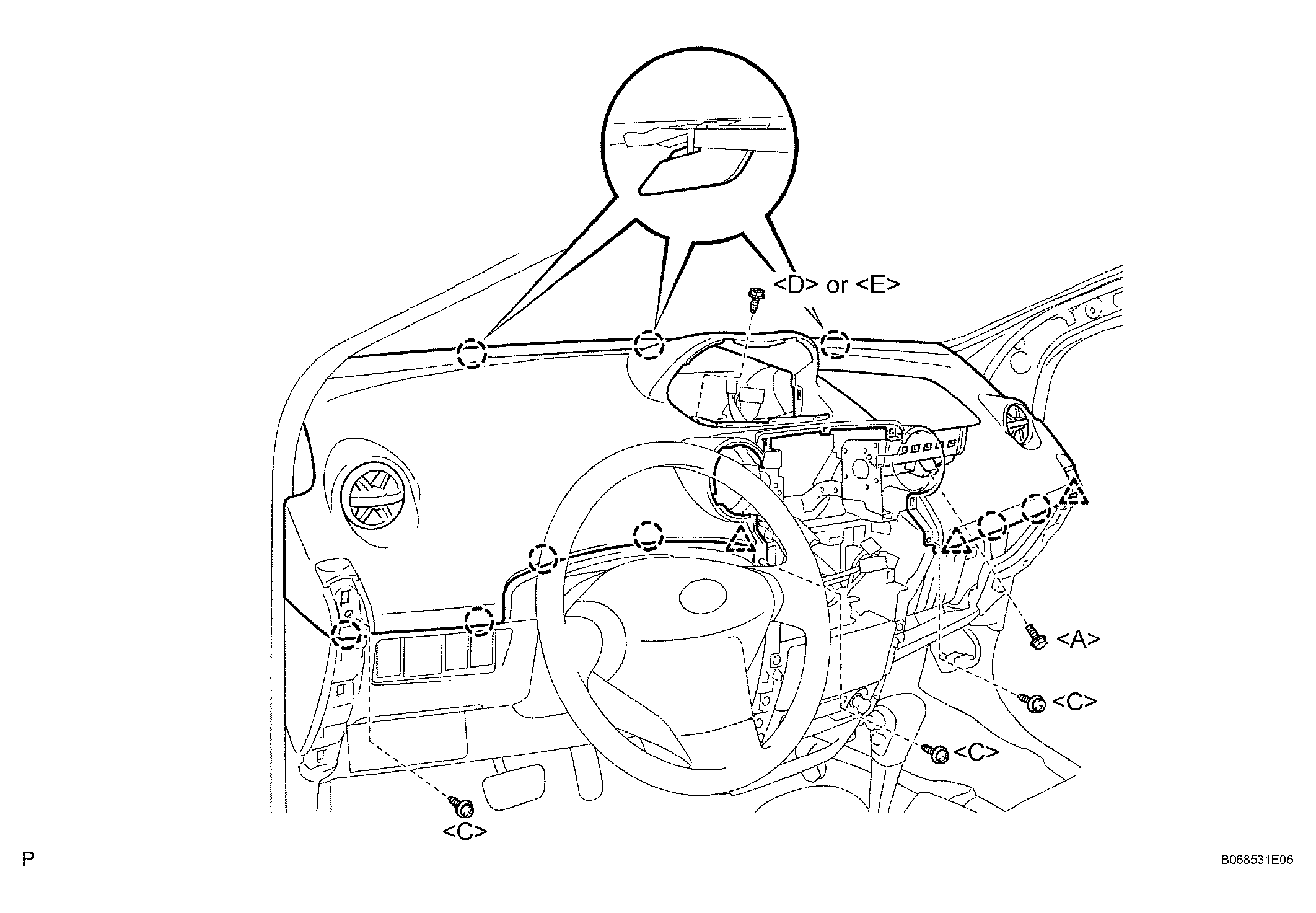

      Fig 1: Installing Instrument Panel Sub-Assembly
      G04159086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT PASSENGER AIRBAG CONNECTOR
  3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Push in the sides of the glove compartment door, as indicated by the arrows in the illustration. Then close the door to engage it to the 2 stoppers.

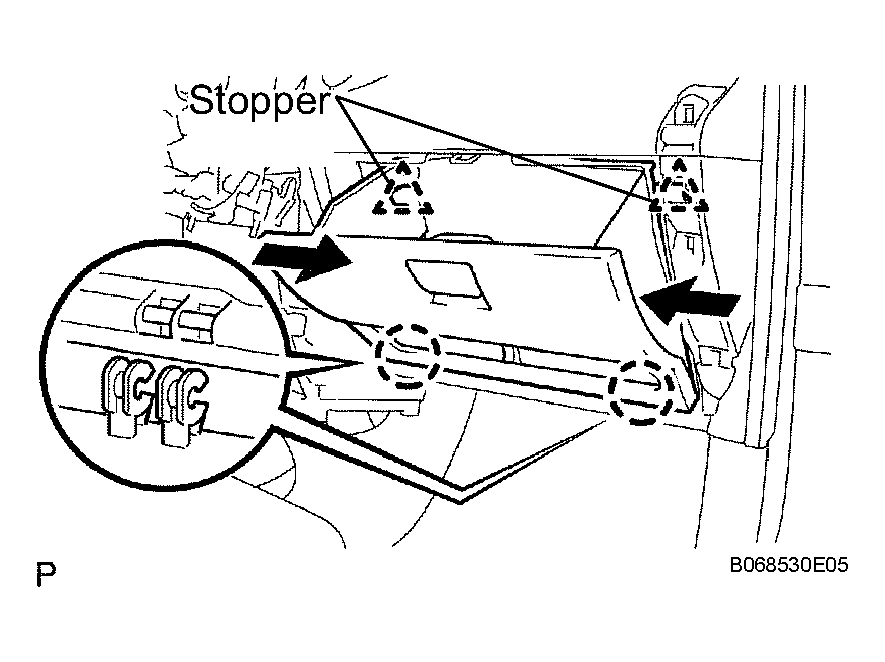

      Fig 2: Installing Glove Compartment Door Assembly
      G04159087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 RADIO BRACKET
    1. Install the radio bracket with the 2 screws.
  5. INSTALL NO. 2 RADIO BRACKET
    1. Install the radio bracket with the 2 screws.

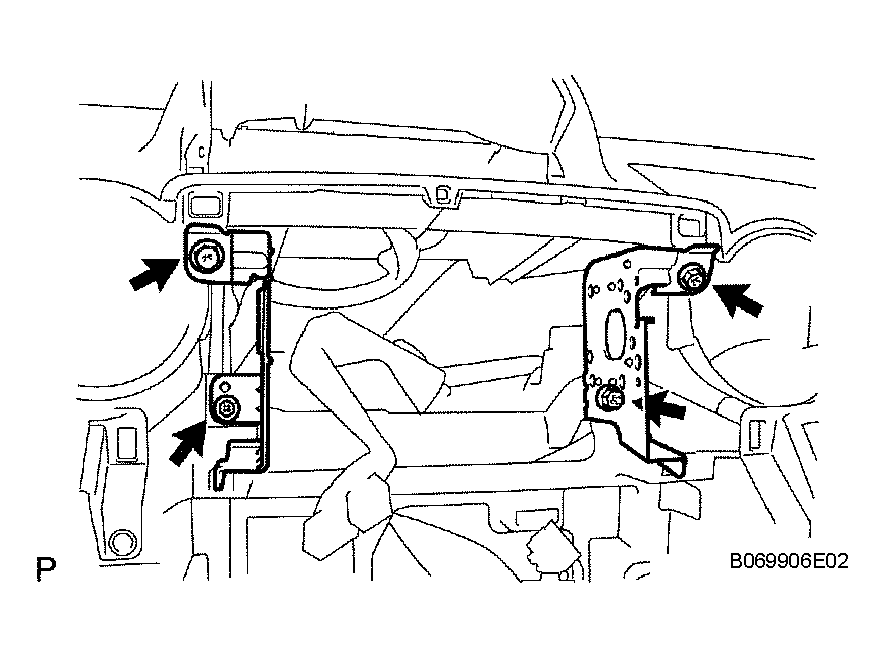

      Fig 3: Installing Radio Bracket With Screws
      G04159088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
    1. Connect the connectors.
    2. Attach the 4 clips and claw to install the instrument panel cluster finish panel.
    3. Install the 4 screws.

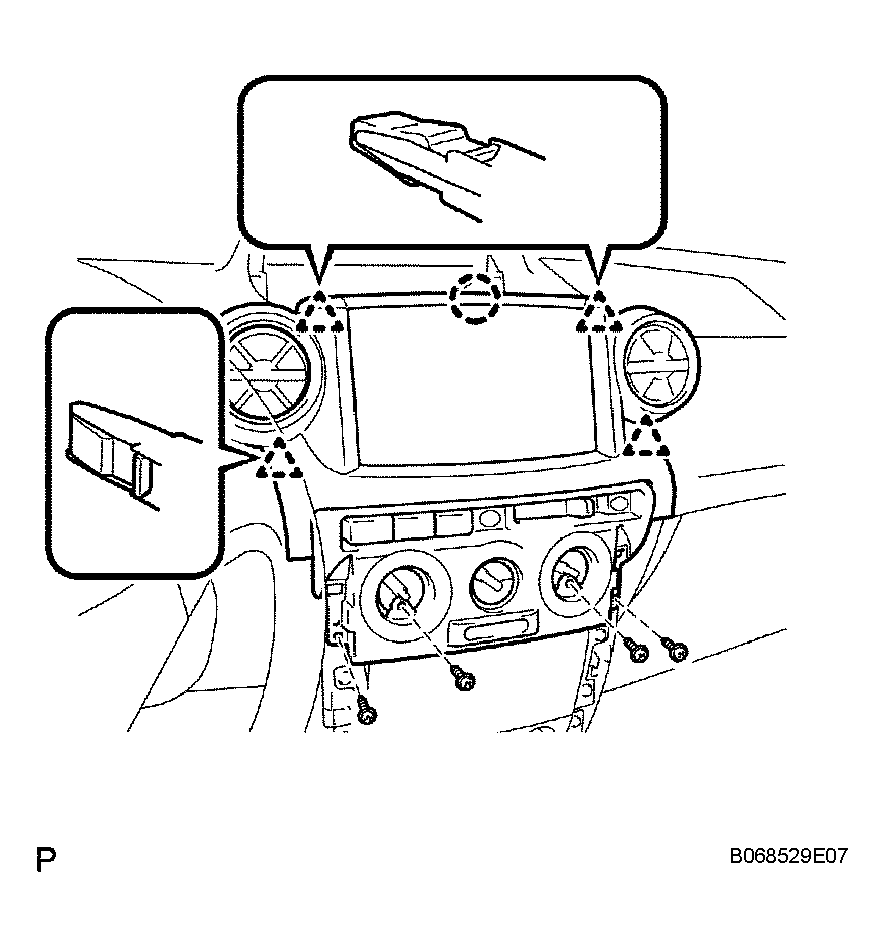

      Fig 4: Installing Instrument Panel Cluster Finish Panel
      G04159089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL HEATER CONTROL KNOB
    1. Install the 3 heater control knobs.

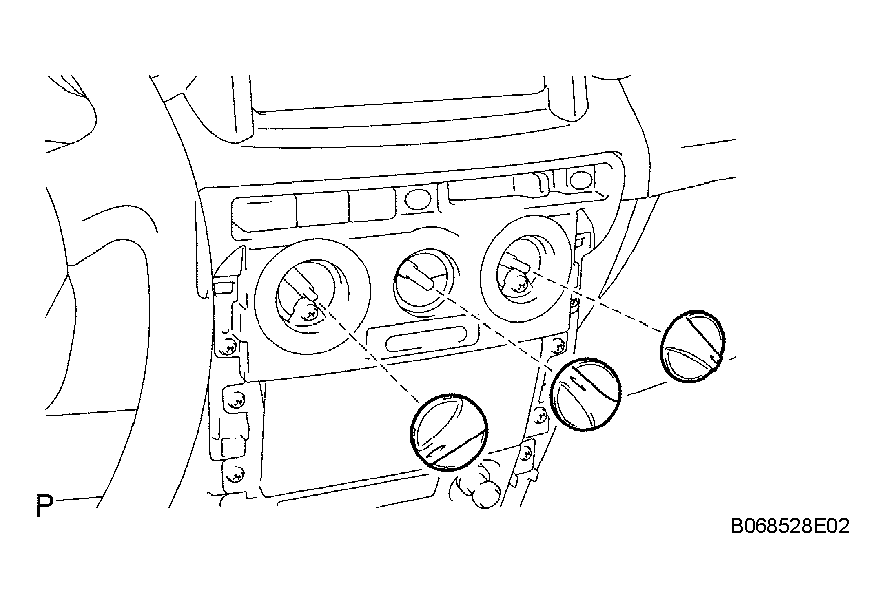

      Fig 5: Installing Heater Control Knob
      G04159090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
    1. Attach the 2 clips and 2 claws to install the instrument cluster finish panel garnish.
  9. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH

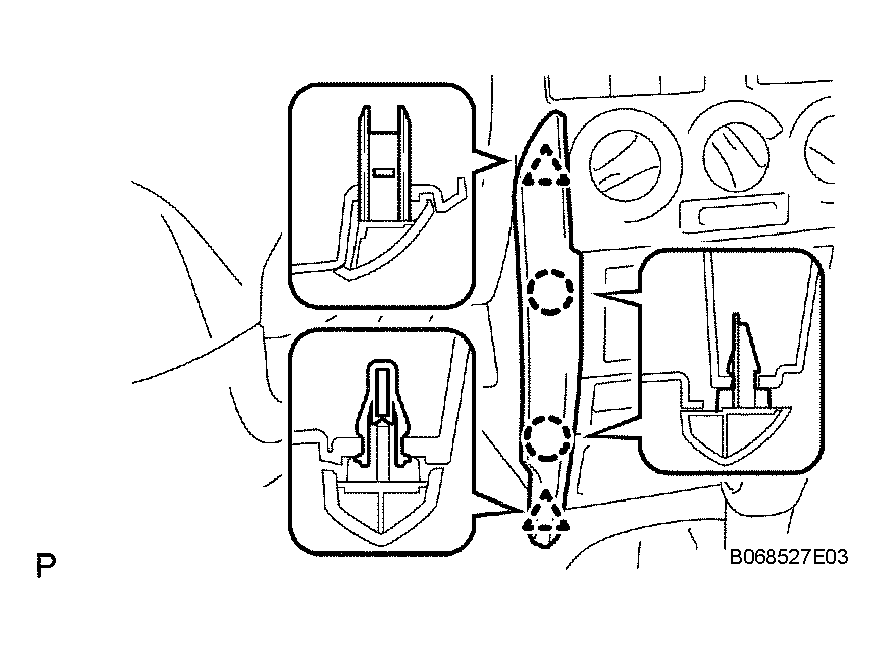

    Fig 6: Installing Instrument Cluster Finish Panel Garnish Clips And Claws
    G04159091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Install the combination meter with the 3 screws.

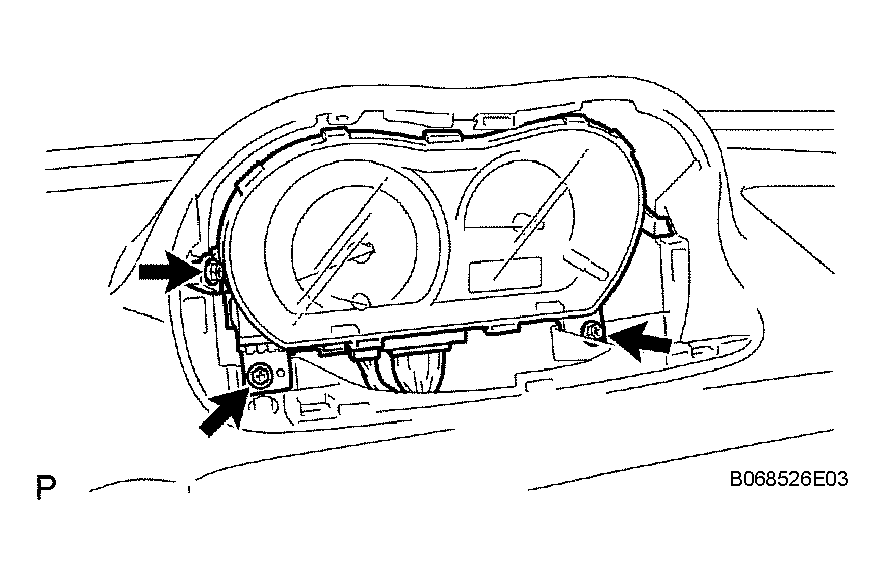

      Fig 7: Installing Combination Meter With Screws
      G04159092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT CLUSTER FINISH PANEL
    1. Attach the 6 claws to install the instrument cluster finish panel.
    2. Install the 2 clips.

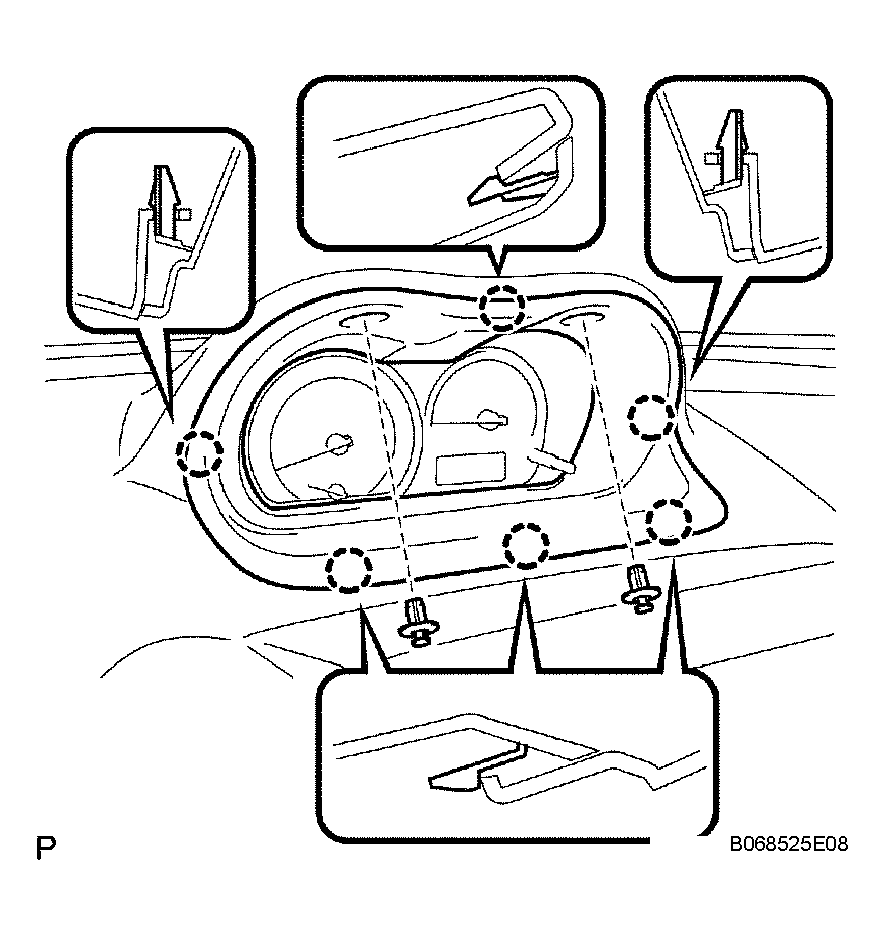

      Fig 8: Installing Instrument Cluster Finish Panel
      G04159093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL LH
    1. Attach the 2 clips and claw to install the instrument panel finish lower panel.
  13. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH

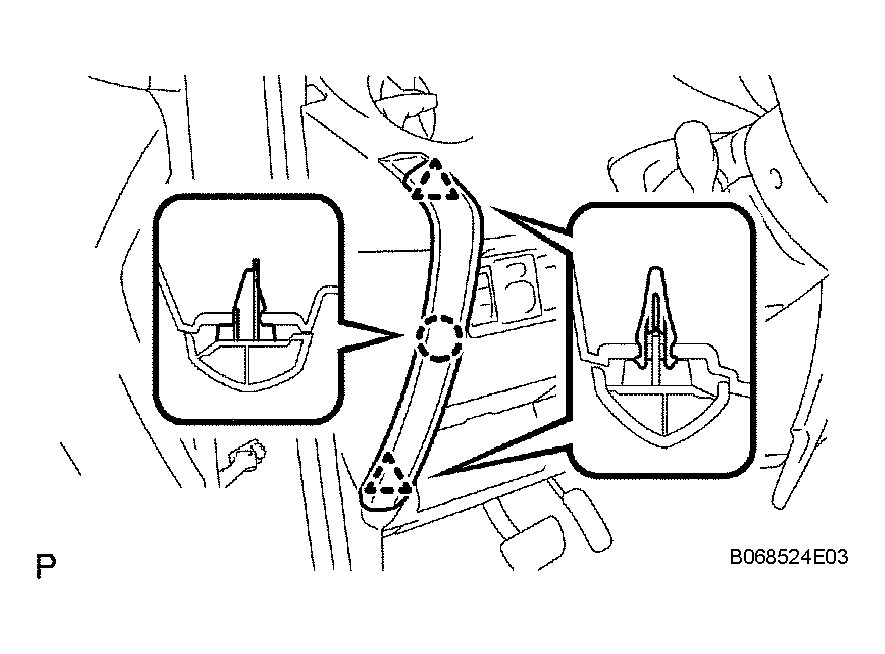

    Fig 9: Installing Instrument Panel Finish Lower Panel
    G04159094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures for the RH side and LH side.

  14. INSTALL FRONT PILLAR GARNISH LH
    1. Attach the 2 clips to install the front pillar garnish.
  15. INSTALL FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and LH side.

  16. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  17. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).

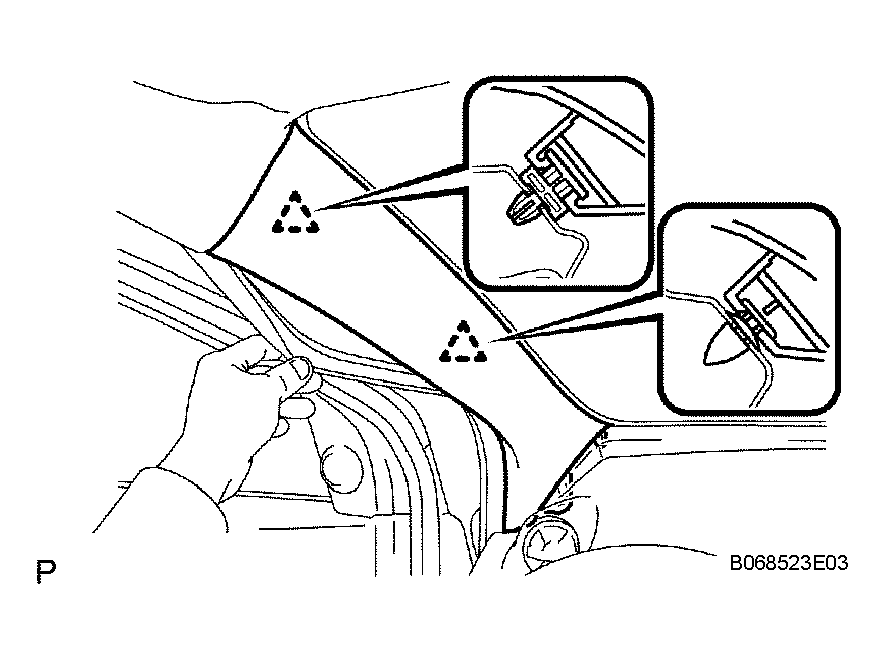

      Fig 10: Installing Front Pillar Garnish
      G04159095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  18. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
