Control Canister: Installation

INSTALL CANISTER
1. Install the canister with the 3 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  Fig 1: Installing Canister
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 tubes and hose.

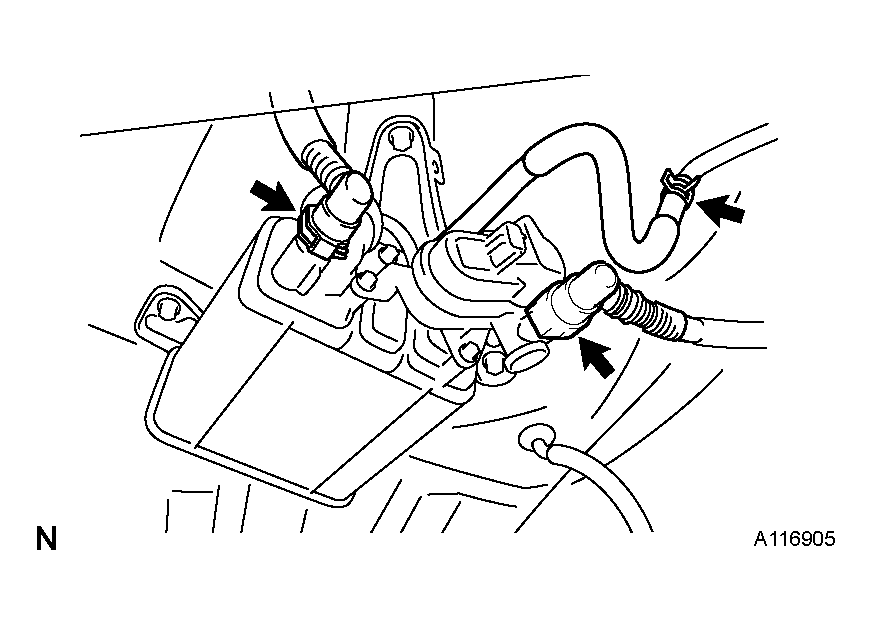

  Fig 2: Connecting Tubes And Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the air inlet line tube to the canister (leak detection pump).
  2. Connect the vent line tube to the canister.
  3. Connect the purge line hose.
    HINT:

    Install the hose to the canister, and then attach the retainer.

    Fig 3: Connecting Air Inlet Line Tube To Canister
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connector and attach the 2 clamps.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

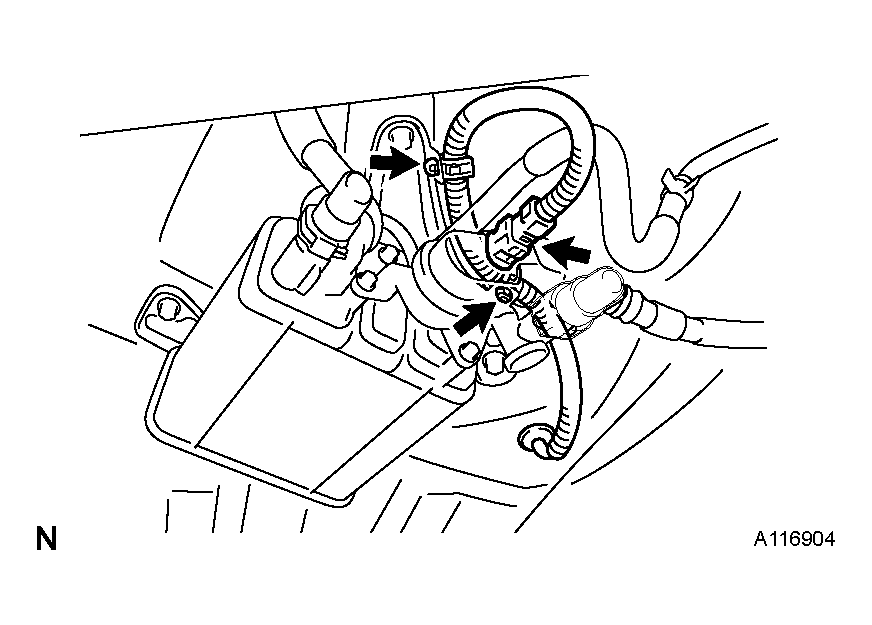

  Fig 4: Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
