Confirmation Driving Pattern

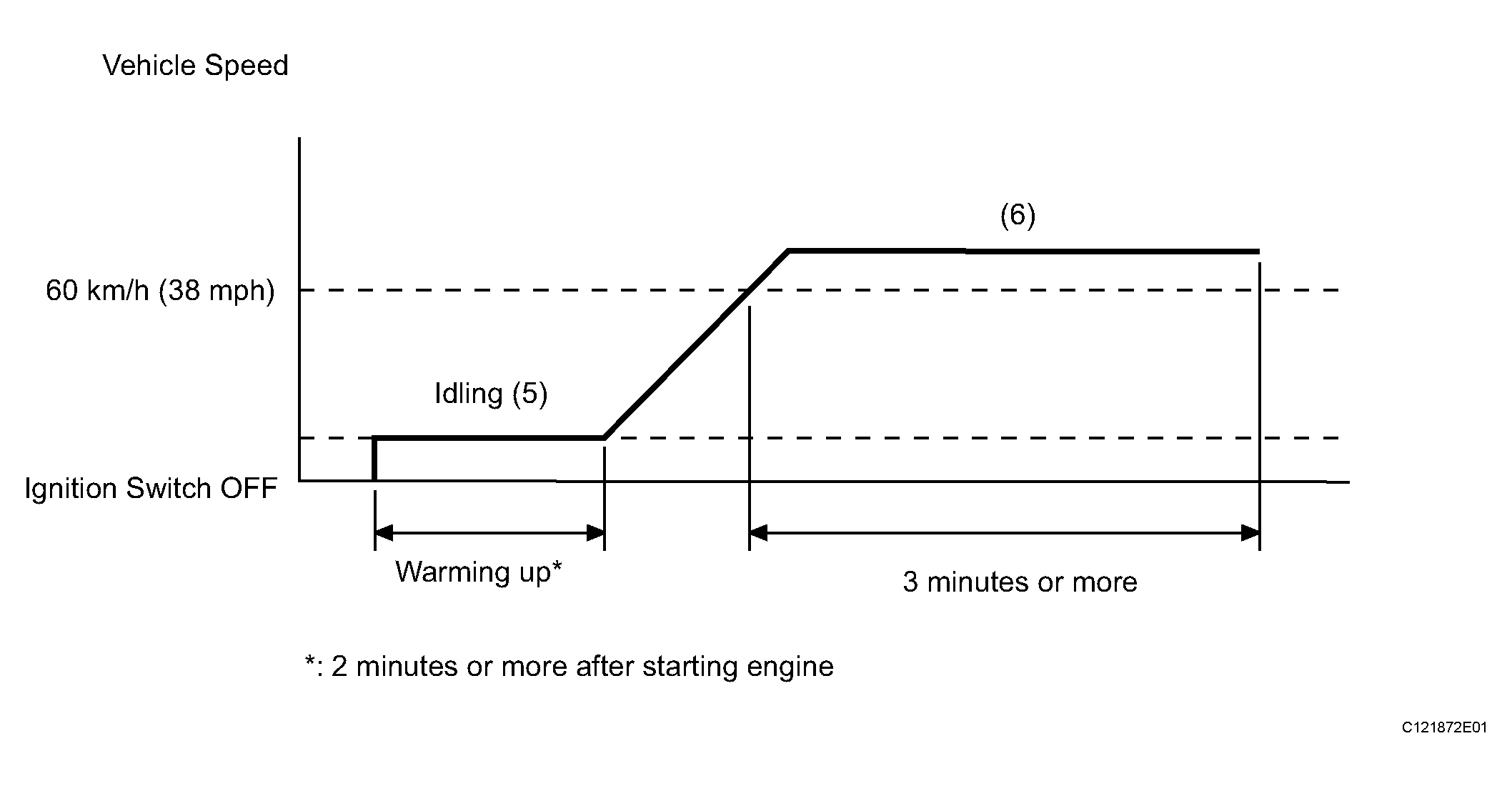

Fig 1: Confirmation Driving Pattern

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

This confirmation driving pattern is used in the "PERFORM CONFIRMATION DRIVING PATTERN" procedure of the following diagnostic troubleshooting procedure.

Connect the intelligent tester to the DLC3.
Turn the ignition switch ON and turn the tester ON.
Clear DTCs (see DTC CHECK / CLEAR ).
Start the engine.
Allow the engine to idle until the engine coolant temperature reaches 40°C (104°F).

Drive the vehicle at a speed of more than 60 km/h (38 mph) for 3 minutes or more.

NOTE: If the conditions in this test are not strictly followed, malfunctions may not be detected.
