Engine Control System (1NZ-FE)
›
SFI System
›
Stop Light Switch Circuit
›
Wiring Diagram
Stop Light Switch Circuit: Wiring Diagram

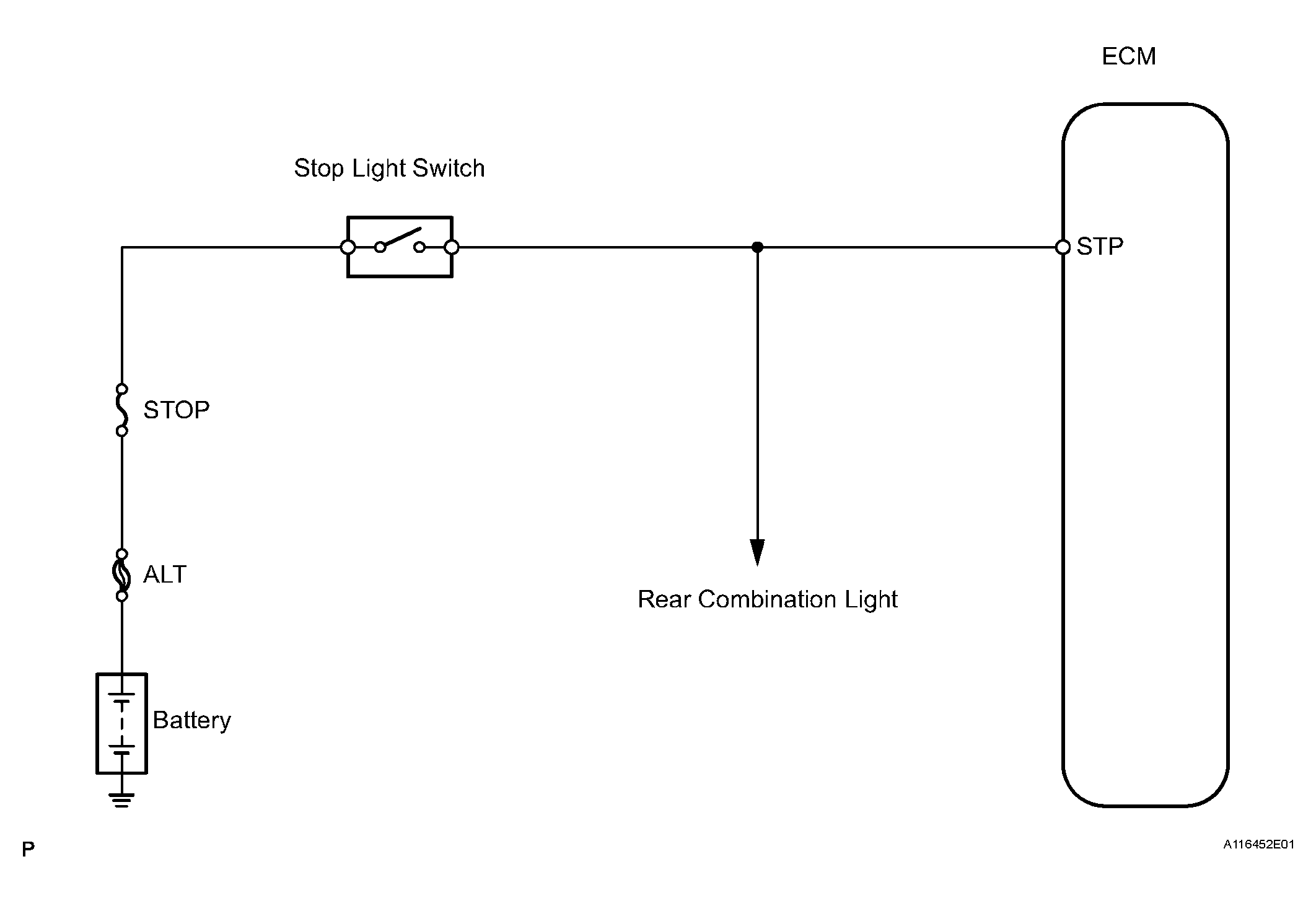

Fig 1: Wiring Diagram - Stop Light Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
