Fuel Tank: Components

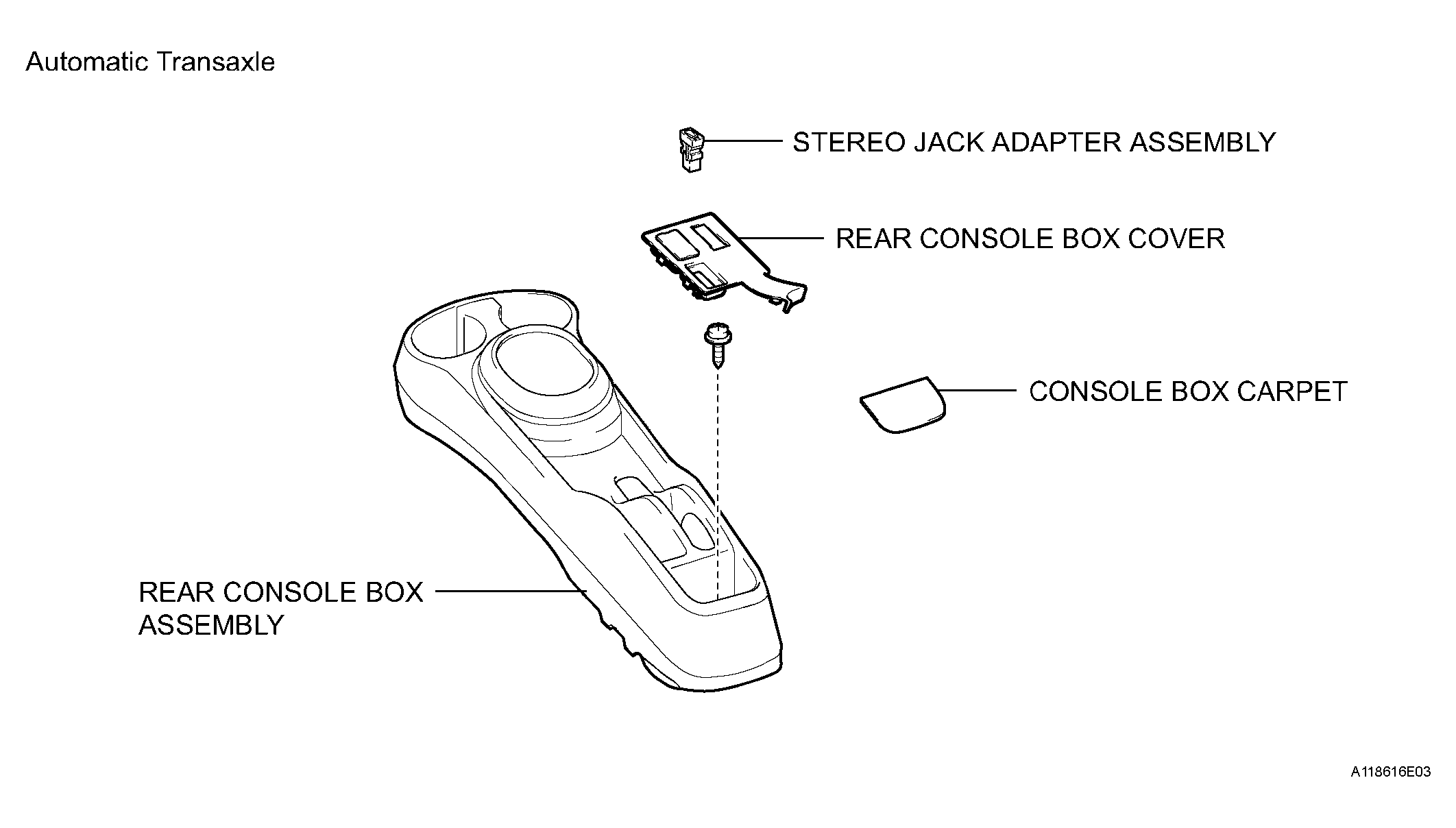

Fig 1: Identifying Console Components (Automatic Transaxle)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

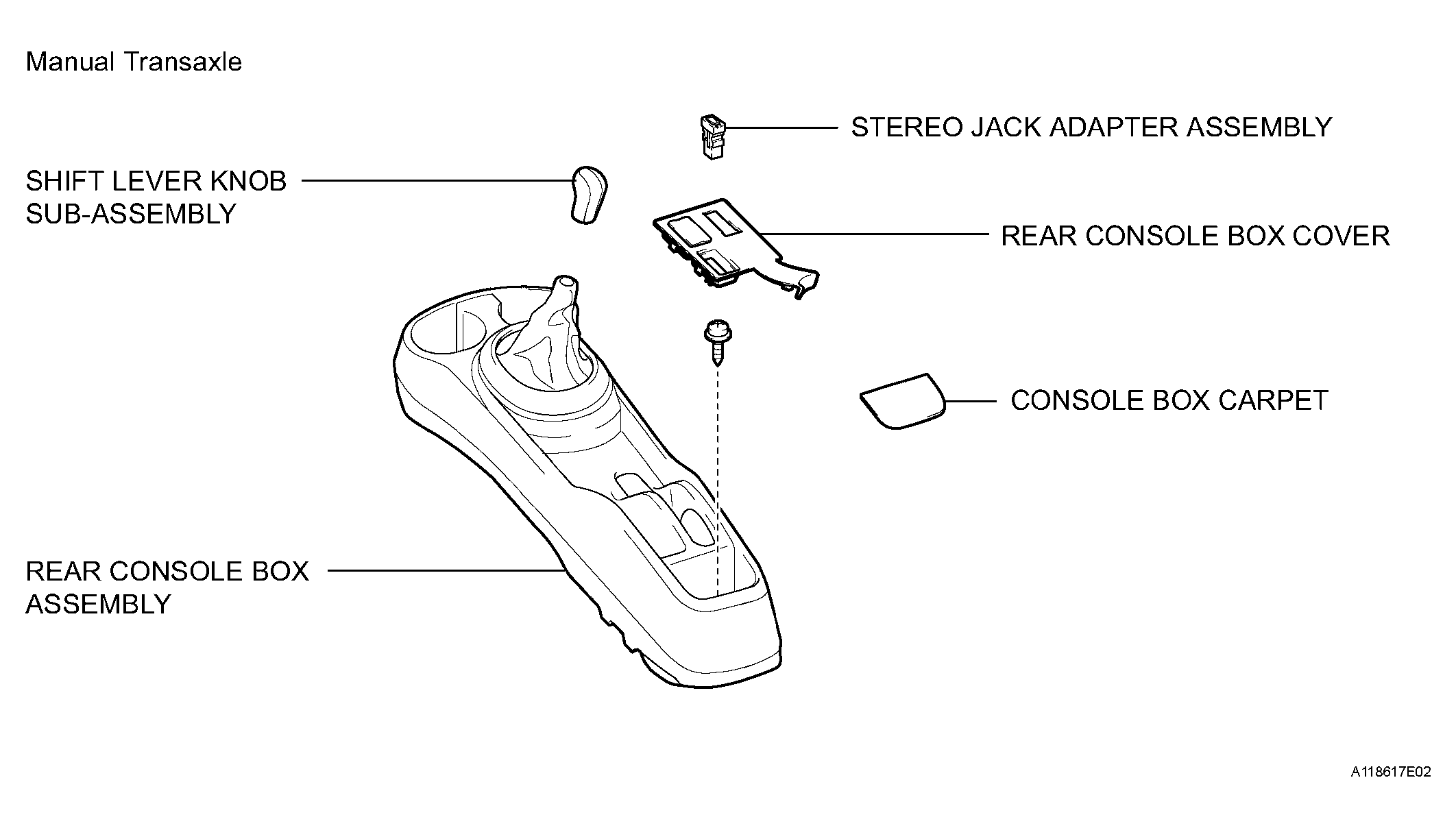

Fig 2: Identifying Console Components (Manual Transaxle)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

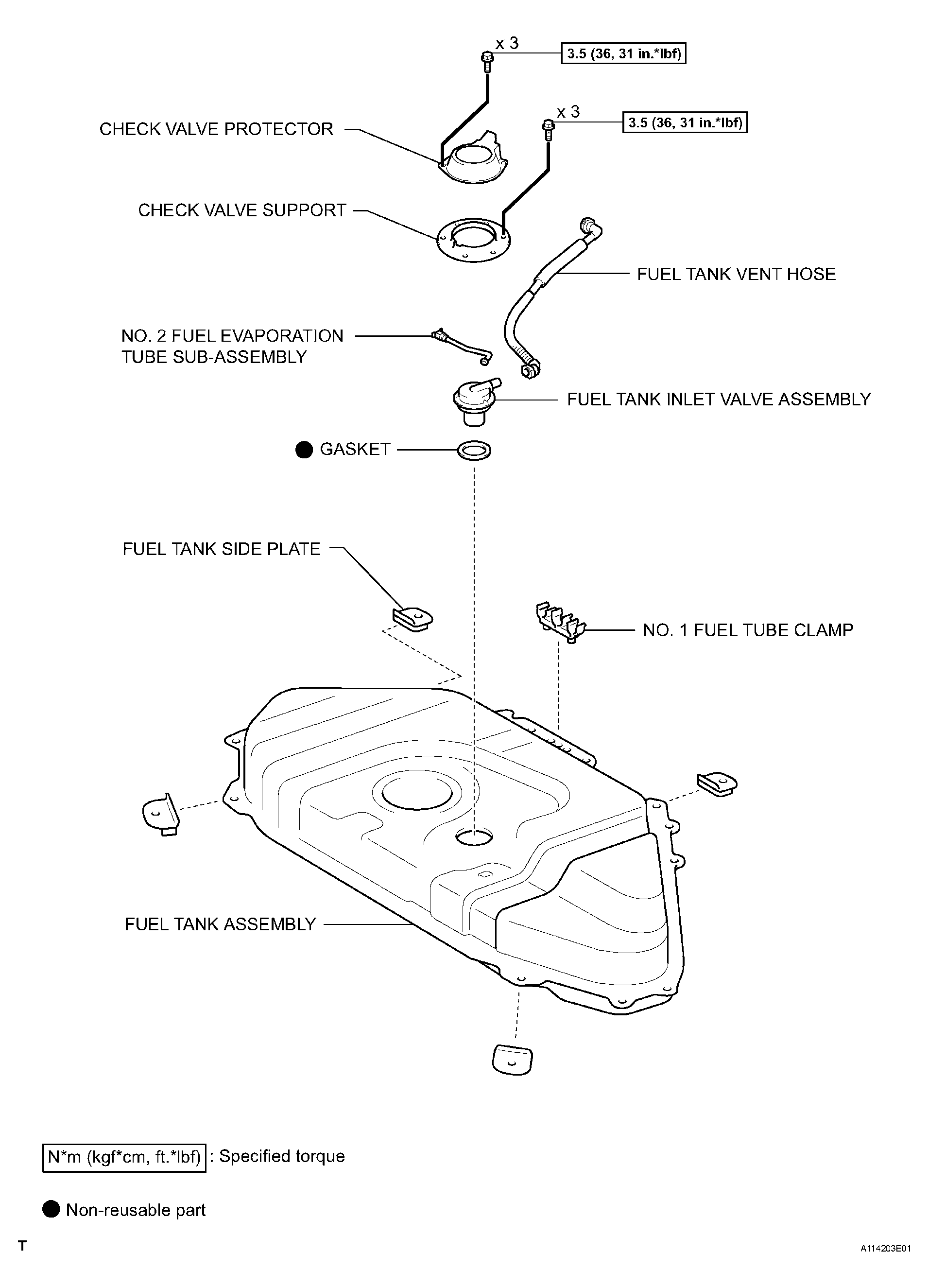

Fig 3: Identifying Fuel Tank Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

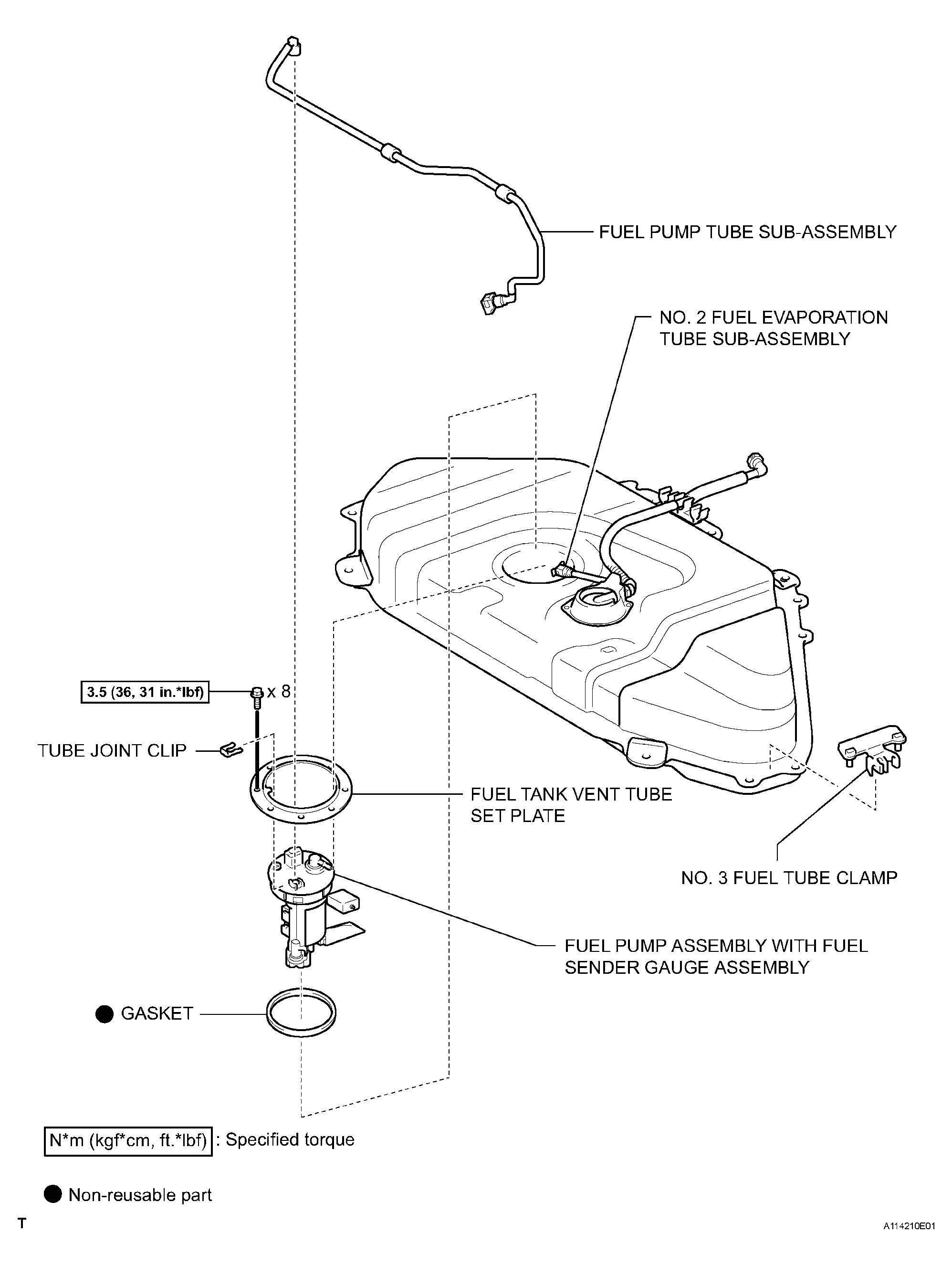

Fig 4: Identifying Fuel Tank Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

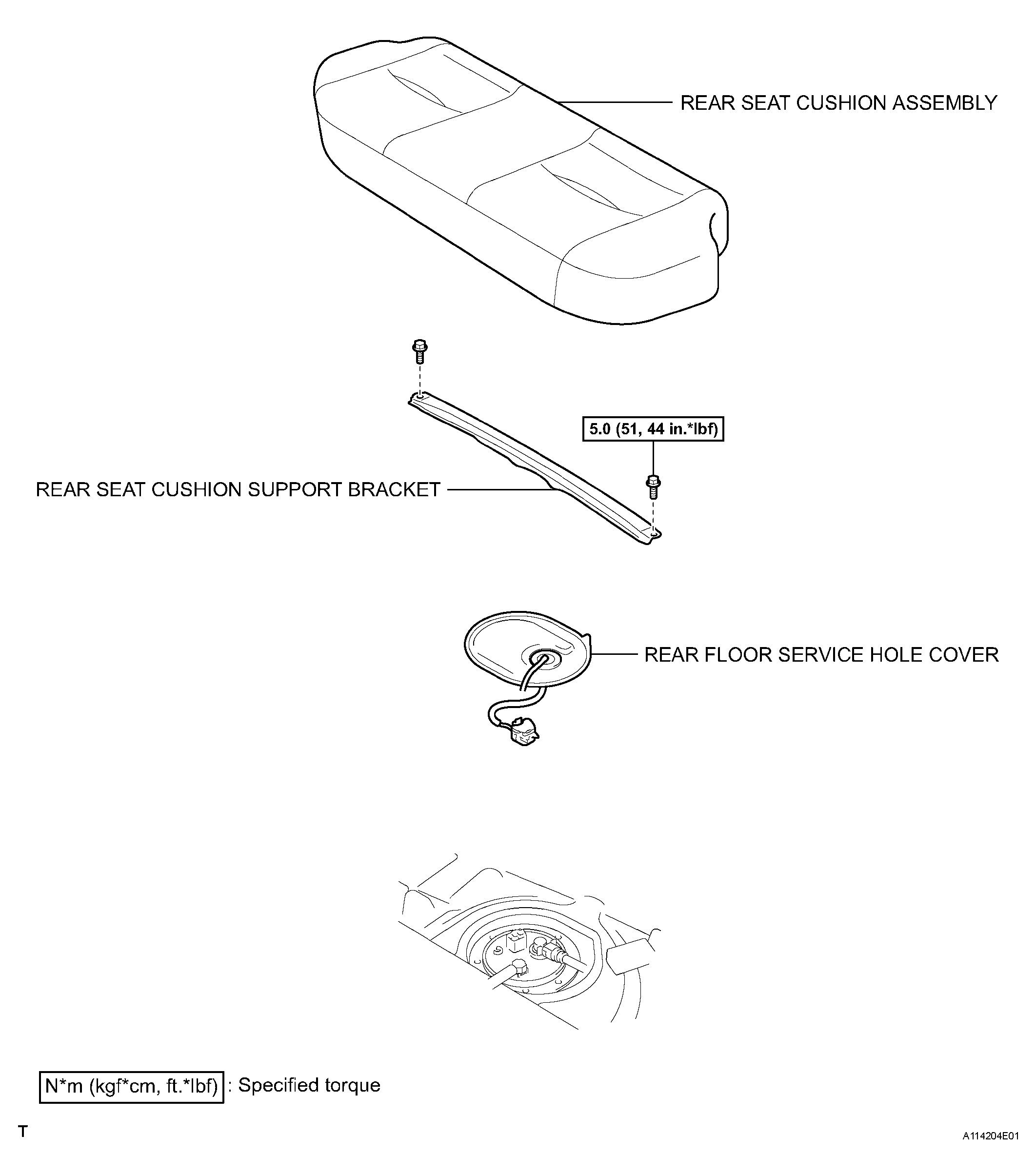

Fig 5: Identifying Fuel Tank Replacement Components (3 Of 5)

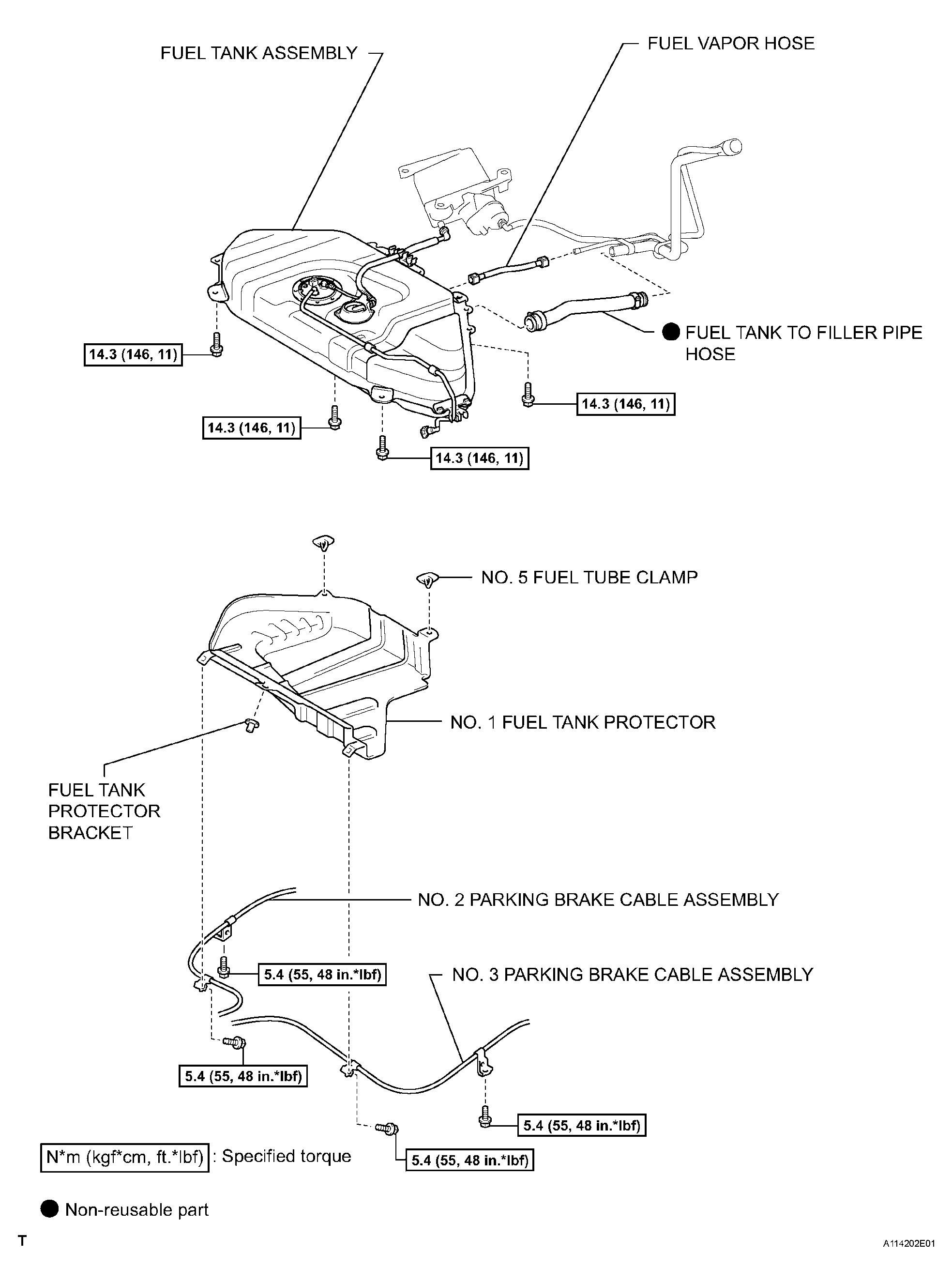

Fig 6: Identifying Fuel Tank Replacement Components (4 Of 5)

Fig 7: Identifying Fuel Tank Replacement Components (5 Of 5)
