Ignition Coil: Installation

INSTALL IGNITION COIL ASSEMBLY
1. Install the 4 ignition coils with the 4 bolts.

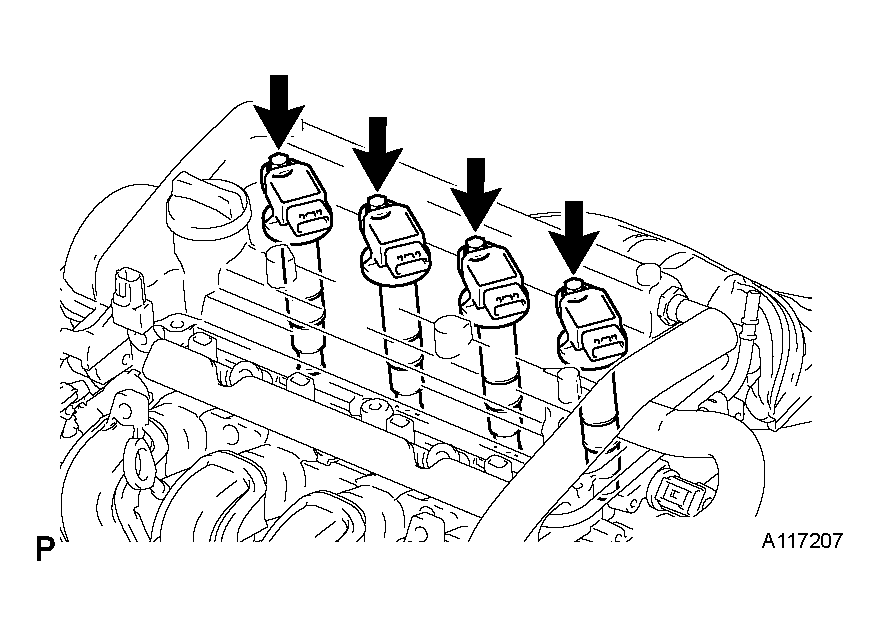

  Fig 1: Installing Ignition Coil Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N*m (90 kgf*cm, 80 in.*lbf)
2. Connect the 4 ignition coil connectors.
INSTALL NO. 2 CYLINDER HEAD COVER
1. Install the head cover with the 4 cap nuts.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
