Rear Seat Outer Belt Assembly: Components

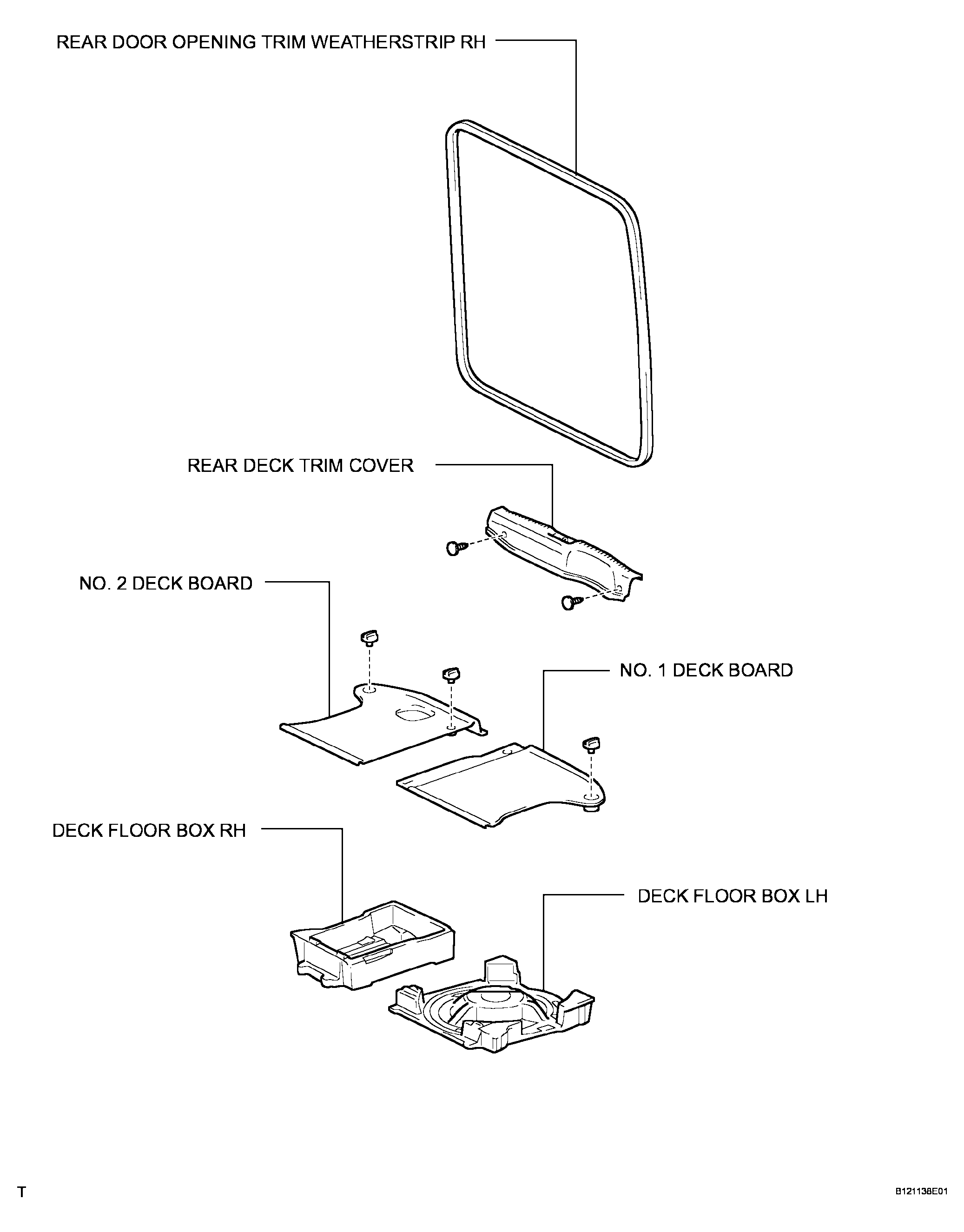

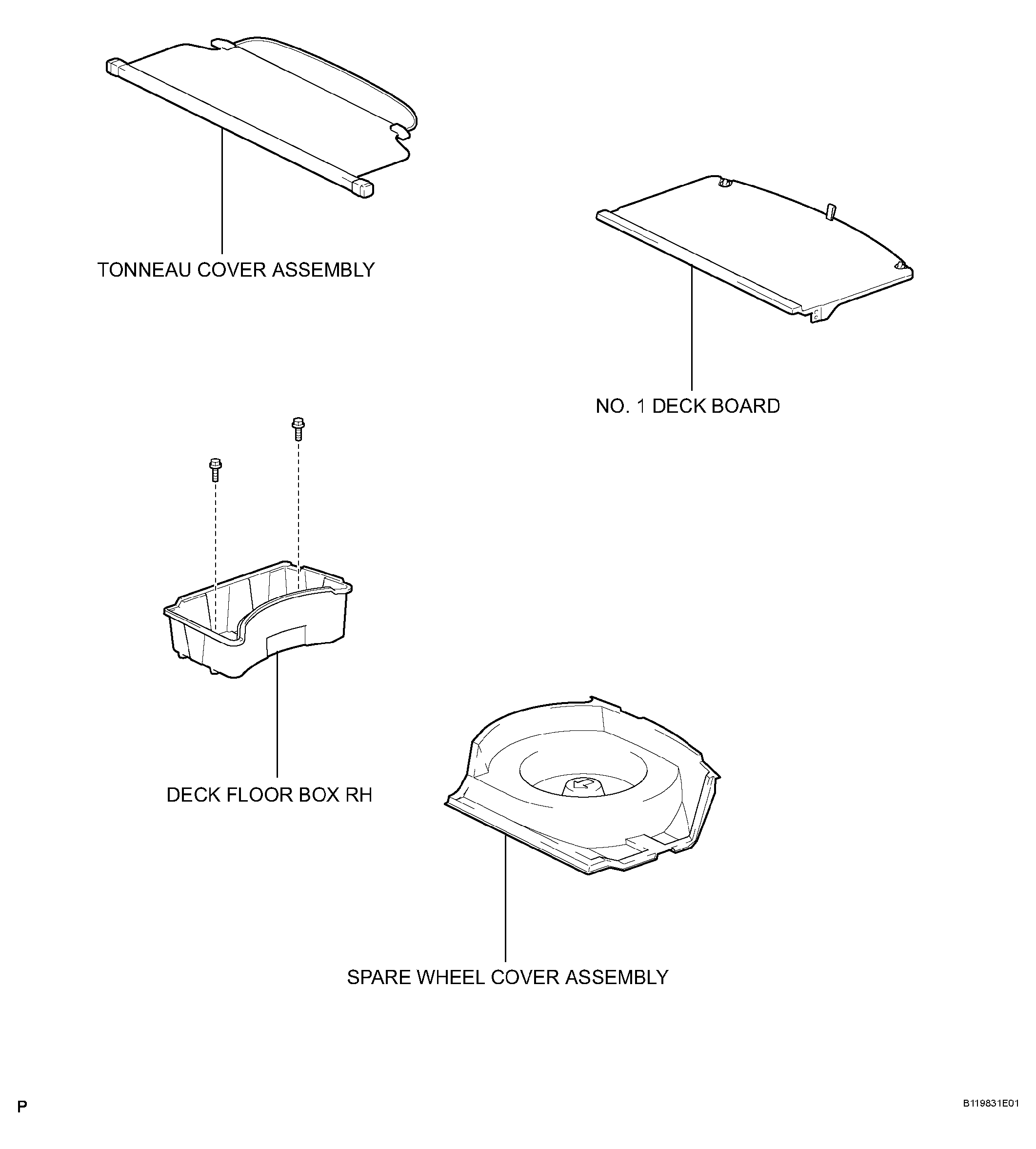

Fig 1: Identifying Rear Seat Outer Belt Assembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

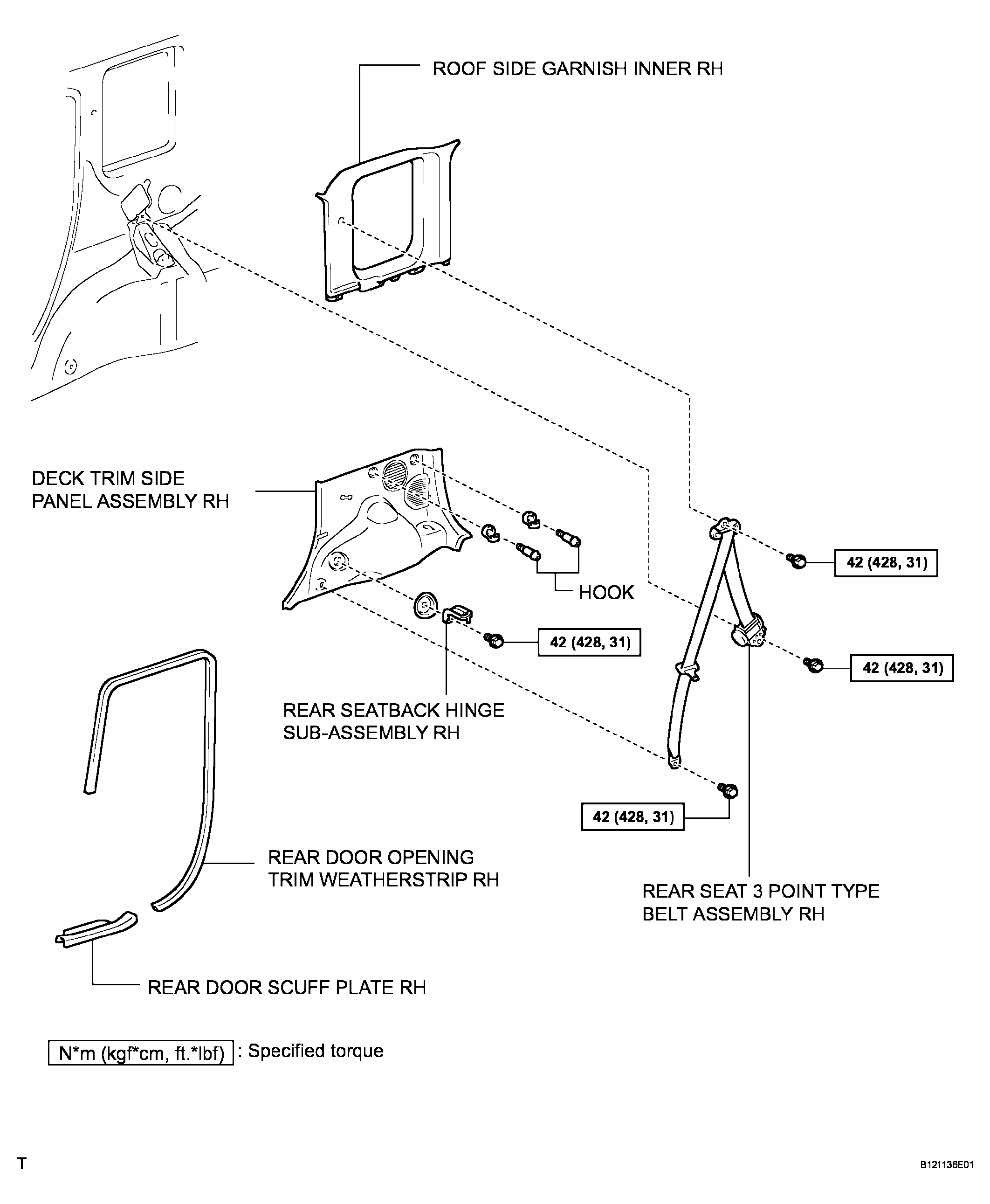

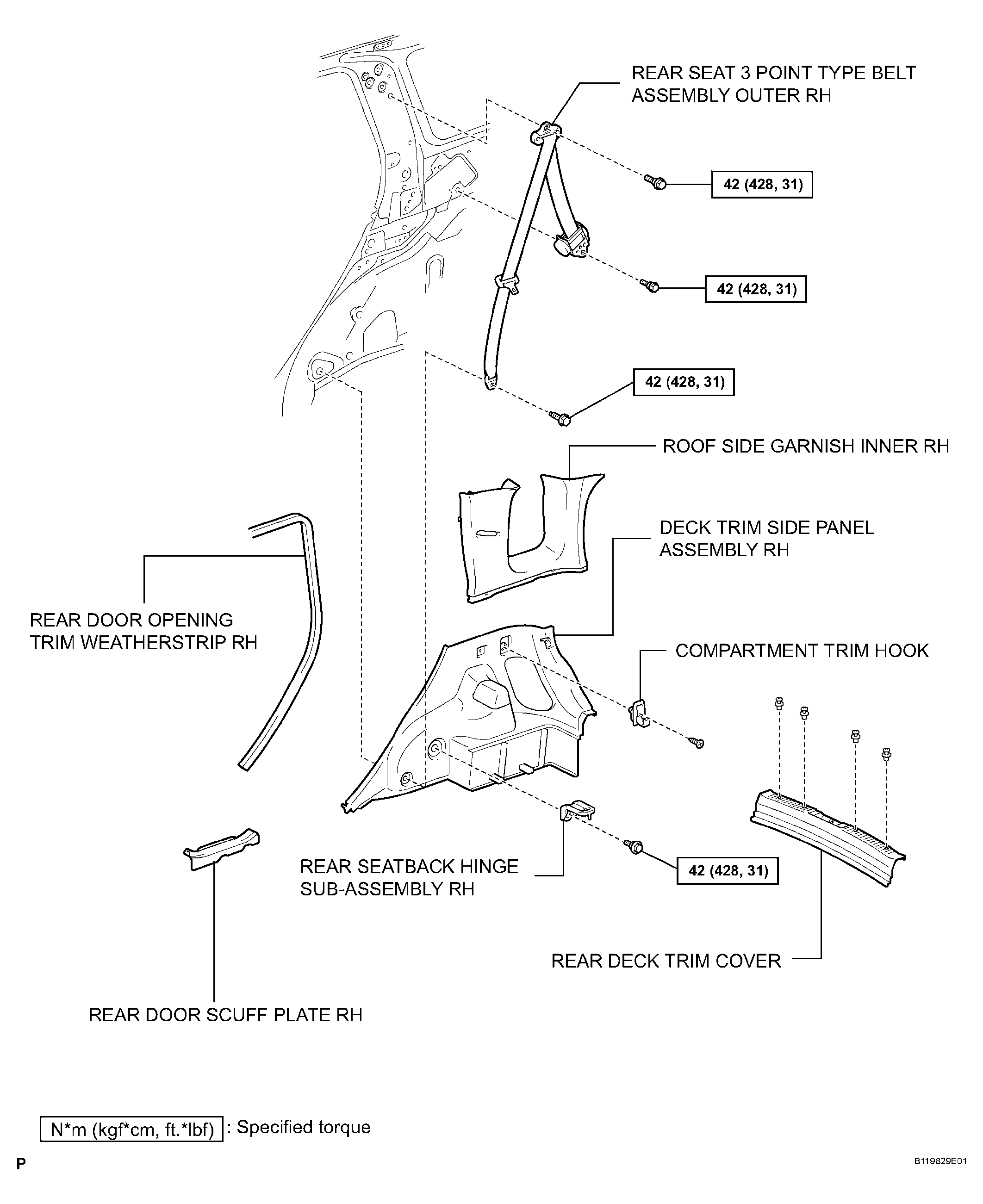

Fig 2: Identifying Rear Seat Outer Belt Assembly Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

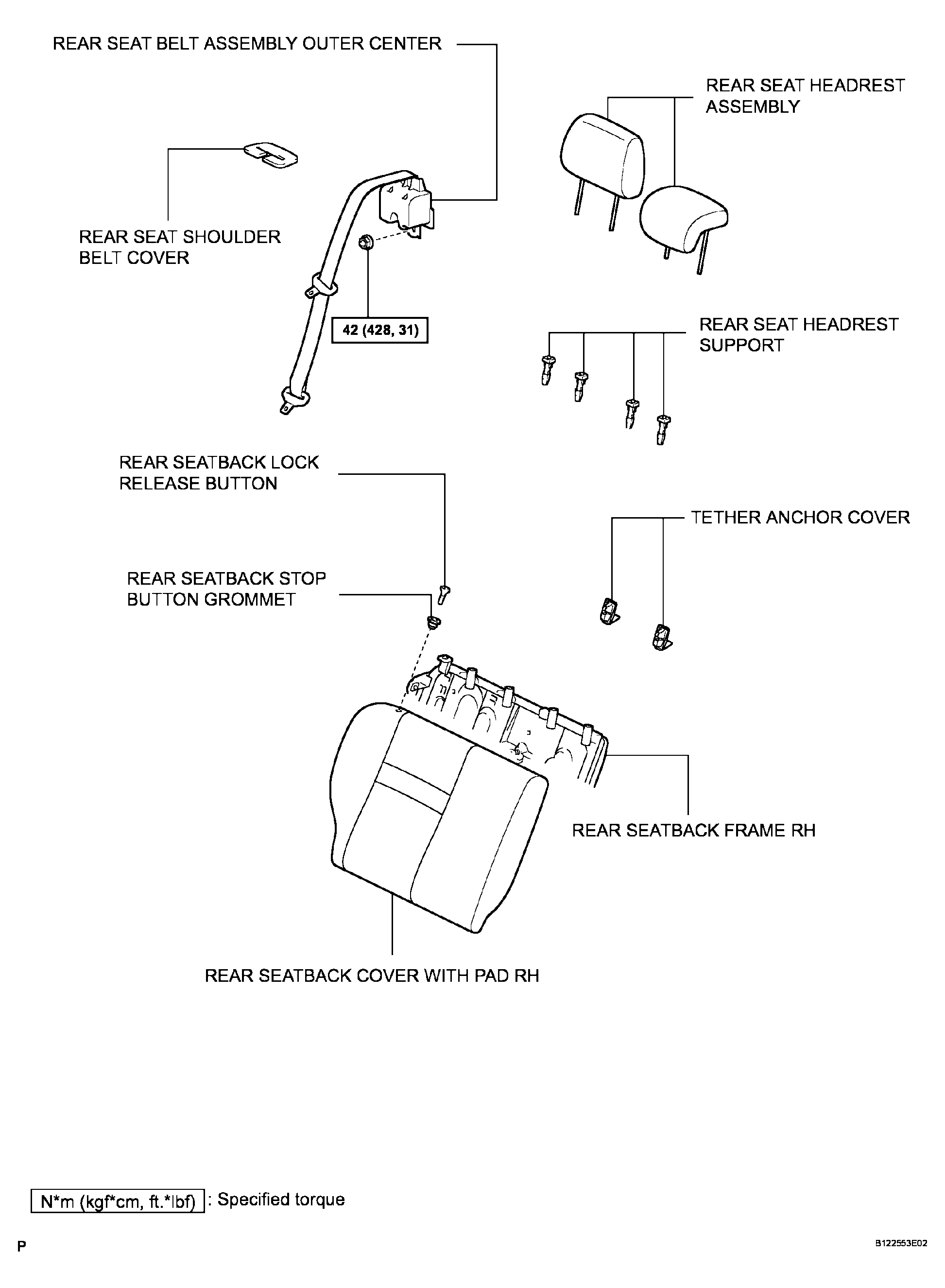

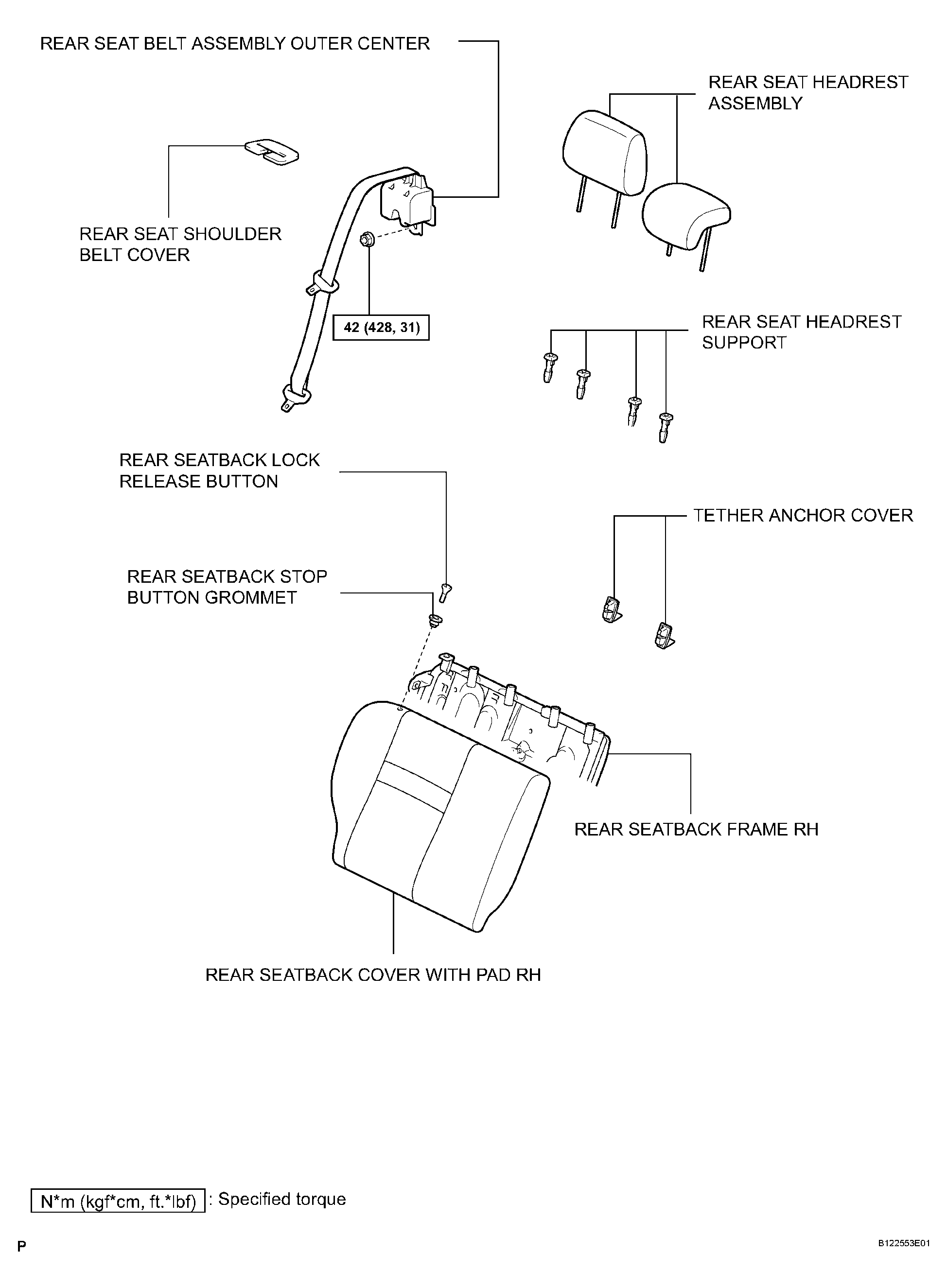

Fig 3: Identifying Rear Seat Outer Belt Assembly Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

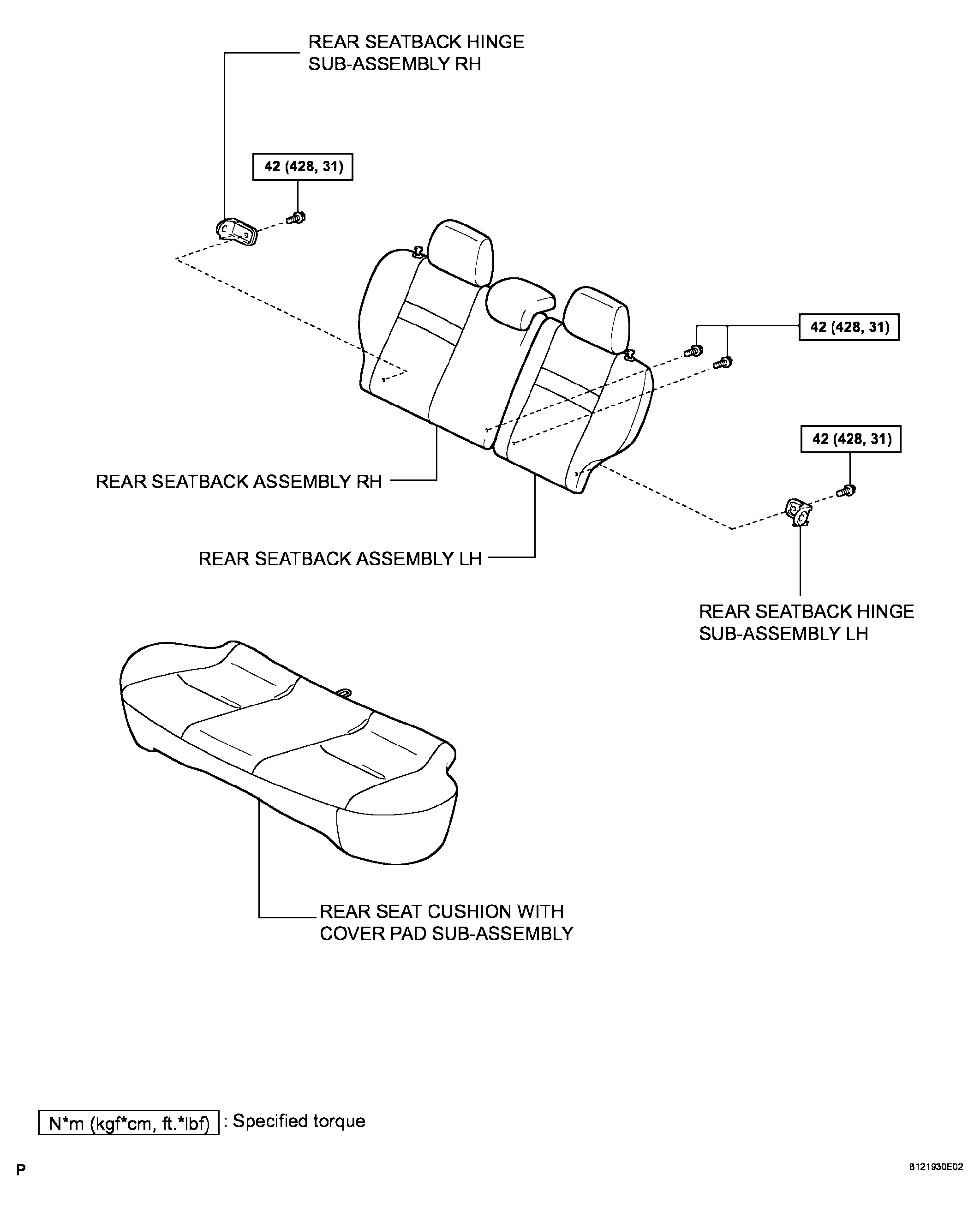

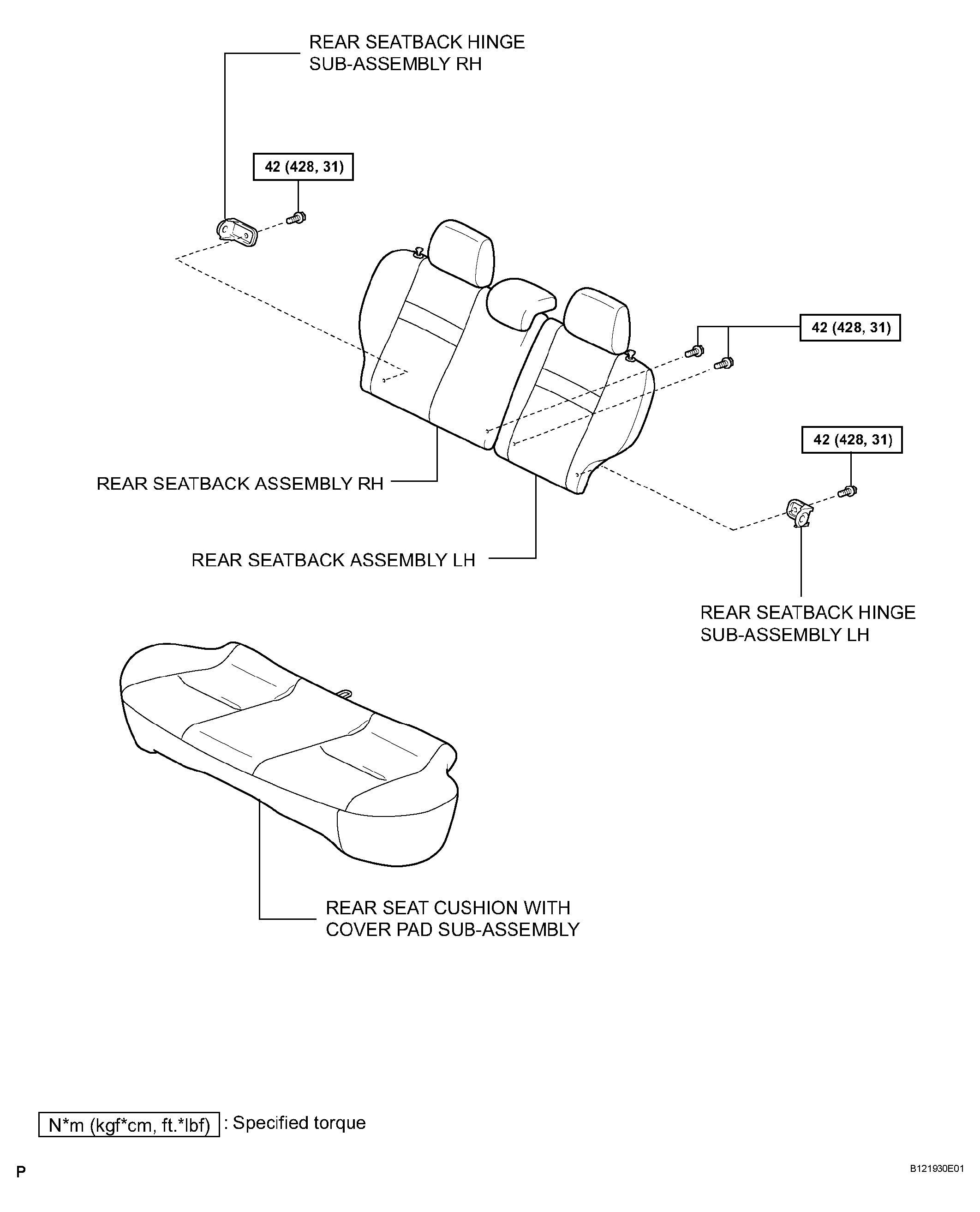

Fig 4: Identifying Rear Seat Outer Belt Assembly Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
