Differential Case: Reassembly

  1. INSTALL COUNTER DRIVEN GEAR
    1. Using SST and a press, press in the counter driven gear to the differential drive pinion.

      SST 09950-60010 (09951-00350), 09950-70010 (09951-07150)

      NOTE: When replacing the counter driven gear, replace the counter drive gear in the transaxle case, too.

      HINT:

      The differential drive pinion should be pressed in until it comes in contact with the counter driven gear.

      Fig 1: Installing Counter Driven Gear
      G04154461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DIFFERENTIAL DRIVE PINION PLUG
    1. Using SST and a plastic-faced hammer, tap in a new differential drive pinion plug to the differential drive pinion.

      SST 09221-25026 (09221-00071)

      Standard clearance A: 2.5 to 2.6 mm (0.0984 to 0.1023 in.)

      Fig 2: Installing Differential Drive Pinion Plug
      G04154462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT DIFFERENTIAL SIDE GEAR
    1. After applying ATF to the 2 front differential side gears, 2 side gear thrust washers, 2 front differential pinions and 2 pinion thrust washers, install them to the front differential case.

      HINT:

      At the time of installation, set the alignment of the front differential pinions perpendicular to that of the side gear and rotate them so that their holes will be aligned with the holes in the differential case.

      Fig 3: Installing Front Differential Side Gear
      G04154463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT DIFFERENTIAL NO. 1 PINION SHAFT
    1. Install the pinion shaft to align the lock pin holes on the pinion shaft and differential case.
      Fig 4: Installing Front Differential No. 1 Pinion Shaft
      G04154464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT BACKLASH
    1. Measure the side gear backlash while holding 1 pinion gear toward the case.

      Standard backlash: 0.05 to 0.20 mm (0.0020 to 0.0079 in.)

      If the backlash is not within the specification, install the correct thrust washer to the side gear.

    2. Referring to the table below, select thrust washers which will ensure that the backlash is within the specification for both sides.

      Standard thrust washer thickness

      STANDARD THRUST WASHER THICKNESS

      Thickness Thickness
      0.95 mm (0.0374 in.) 1.10 mm (0.0433 in.)
      1.00 mm (0.0394 in.) 1.15 mm (0.0453 in.)
      1.05 mm (0.0413 in.) 1.20 mm (0.0472 in.)

      If the backlash is not within the specification, install a thrust washer of a different thickness.

      Fig 5: Measuring Side Gear Backlash
      G04154465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN
    1. Using a pin punch and hammer, tap in the pinion shaft straight pin.
      Fig 6: Tapping In Pinion Shaft Straight Pin
      G04154466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a chisel and hammer, stake the differential case.
      Fig 7: Staking Differential Case
      G04154467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT DIFFERENTIAL RING GEAR
    1. Using ATF and a heater, heat the front differential ring gear to 90 to 110°C (194.0 to 230.0°F).
    2. Clean the contact surface of the front differential case.
      Fig 8: Heating Front Differential Ring Gear
      G04154468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 4 lock plates and 8 bolts.

      Torque: 88.2 N*m (899 kgf*cm, 65 ft.*lbf)

    4. Stake the ring gear lock plate.
      Fig 9: Installing Lock Plate
      G04154469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SPEEDOMETER DRIVE GEAR
    1. Install the speedometer drive gear to the differential case.
      Fig 10: Installing Speedometer Drive Gear
      G04154470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING
    1. Using SST and a press, press in the front differential case front tapered roller bearing to the differential case.

      SST 09316-60011 (09316-00011)

      Fig 11: Pressing In Front Differential Case Front Tapered Roller Bearing To Differential Case
      G04154471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, press in the front differential case front tapered roller bearing to the transaxle housing.

      SST 09950-60020 (09951-00750), 09950-70010 (09951-07150)

      Fig 12: Pressing In Front Differential Case Front Tapered Roller Bearing To Transaxle Housing
      G04154472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING
    1. Using SST and a press, press in the front differential case rear tapered roller bearing to the differential case.

      SST 09726-40010, 09950-60020 (09951-00790)

      Fig 13: Pressing In Front Differential Case Rear Tapered Roller Bearing To Differential Case
      G04154473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a press, press in the shim and front differential case rear tapered roller bearing outer race to the transaxle case.

      SST 09950-60010 (09951-00650, 09950-60020 (09951-00720), 09950-70010 (09951-07100, 09951-07200)

      Fig 14: Pressing In Shim And Front Differential Case Rear Tapered Roller Bearing Outer Race To Transaxle Case
      G04154474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. ADJUST TAPERED ROLLER BEARING PRELOAD
    1. Coat the front differential case and bearing with ATF, and install them to the transaxle case.
    2. Install the 14 bolts and transaxle housing.

      Torque: 29.4 N*m (300 kgf*cm, 22 ft.*lbf) for bolt A

      22.1 N*m (225 kgf*cm, 16 ft.*lbf) for bolt B

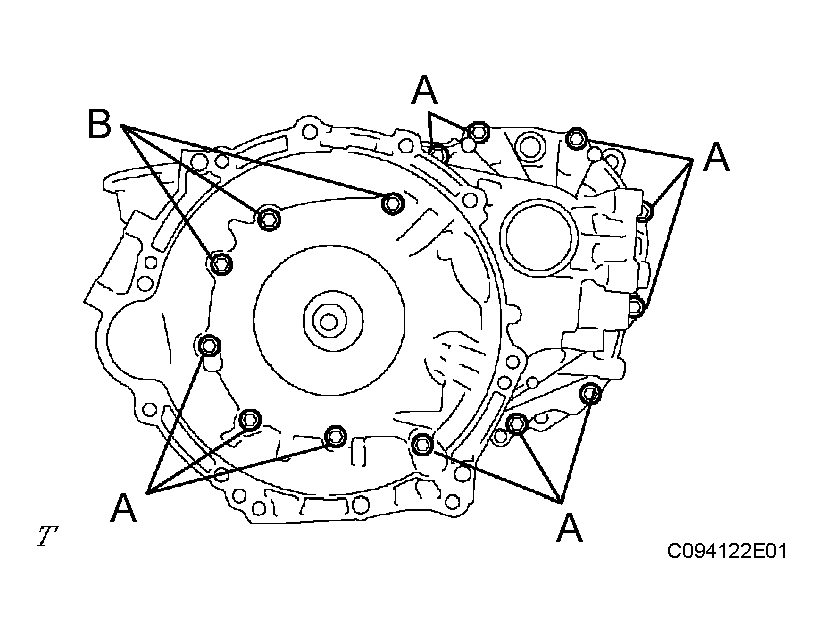

      Fig 15: Installing Transaxle Housing
      G04154475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST and a small torque wrench, measure the preload of the differential gear.

      SST 09564-32011

      New bearing preload: 0.98 to 1.57 N/m (10.0 to 16.0 kgf*cm, 8.7 to 13.9 in.*lbf)

      Used bearing preload: 0.49 to 0.78 N/m (5.0 to 8.0 kgf*cm, 4.3 to 6.9 in.*lbf)

      If the preload is not within the specification, remove the differential from the transaxle case. Reselect the transaxle case side adjusting shim according to the following table.

      Fig 16: Measuring Differential Gear Preload
      G04154476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard adjusting shim thickness

      STANDARD ADJUSTING SHIM THICKNESS

      Mark Thickness Mark Thickness
      01 1.90 mm (0.0748 in.) 11 2.40 mm (0.0945 in.)
      02 1.95 mm (0.0768 in.) 12 2.45 mm (0.0965 in.)
      03 2.00 mm (0.0787 in.) 13 2.50 mm (0.0984 in.)
      04 2.05 mm (0.0807 in.) 14 2.55 mm (0.1004 in.)
      05 2.10 mm (0.0827 in.) 15 2.60 mm (0.1024 in.)
      06 2.15 mm (0.0846 in.) 16 2.65 mm (0.1043 in.)
      07 2.20 mm (0.0866 in.) 17 2.70 mm (0.1063 in.)
      08 2.25 mm (0.0886 in.) 18 2.75 mm (0.1083 in.)
      09 2.30 mm (0.0906 in.) 19 2.80 mm (0.1102 in.)
      10 2.35 mm (0.0925 in.) - -
