U340E Automatic Transaxle
›
Park / Neutral Position Switch
›
Components
Park / Neutral Position Switch: Components

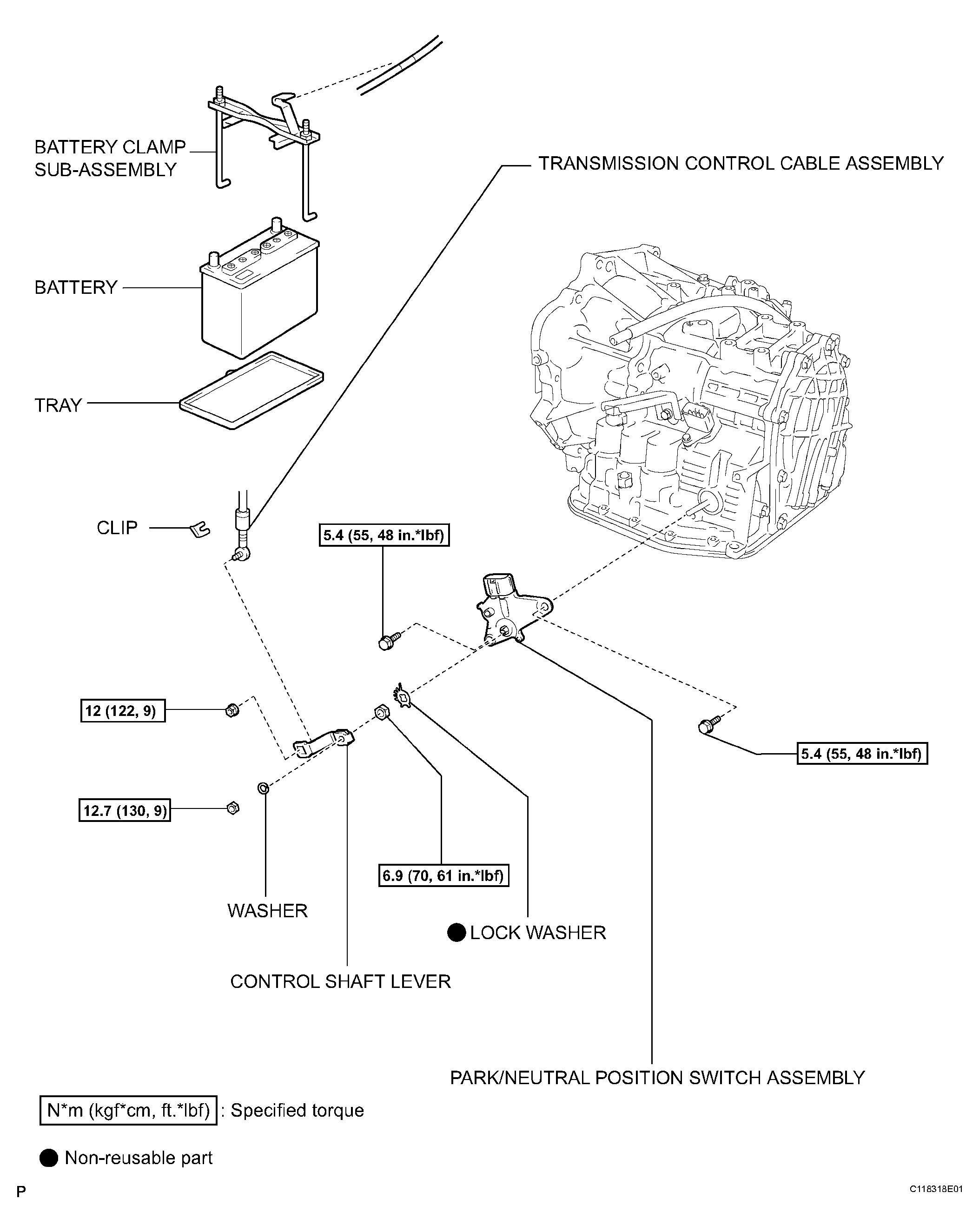

Fig 1: Identifying Park / Neutral Position Switch Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
