Transaxle Rear Cover: Components

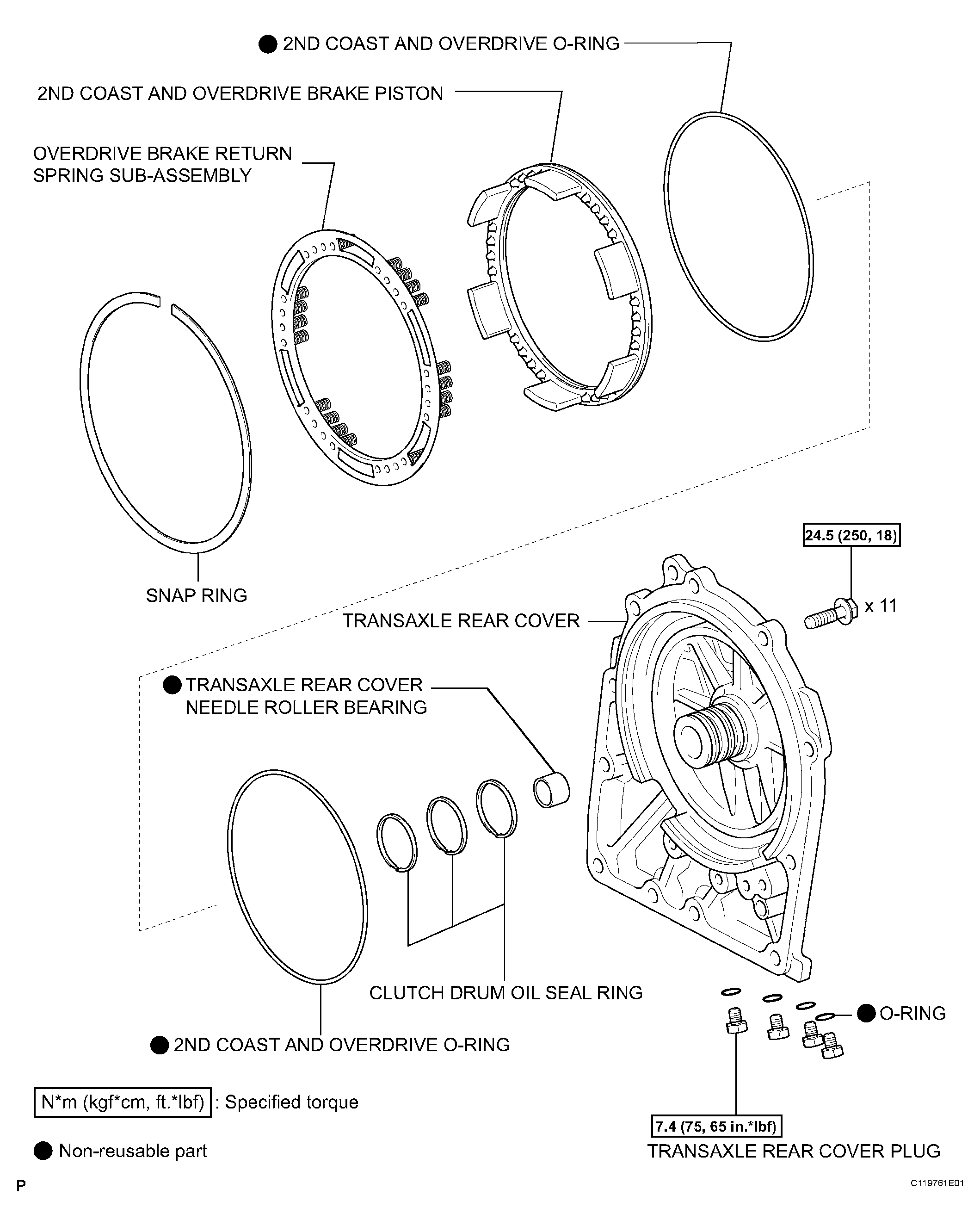

Fig 1: Identifying Transaxle Rear Cover Components

G04154412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
