Transmission Revolution Sensor: Components

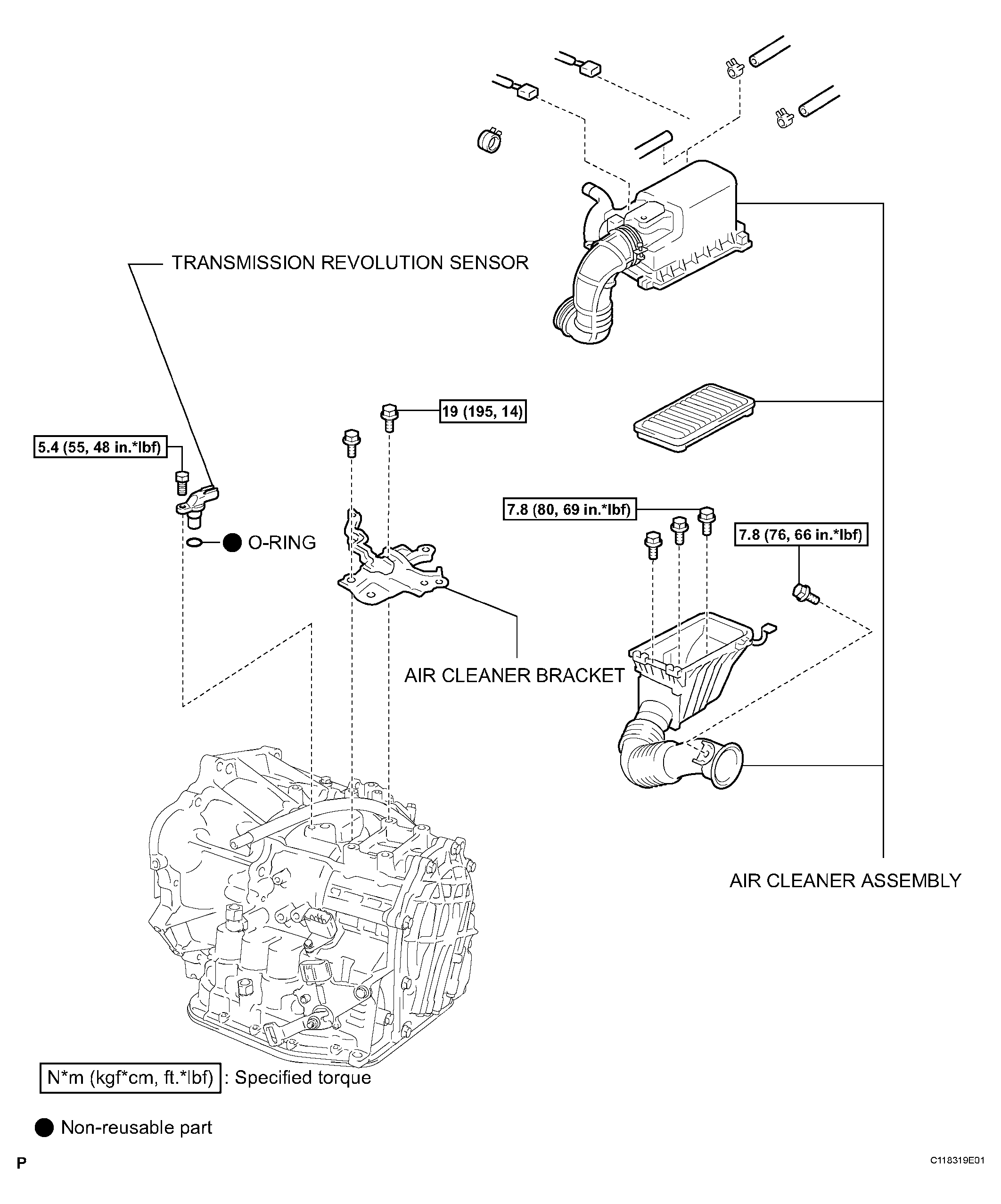

Fig 1: Identifying Transmission Revolution Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
