Valve Body Assembly: Components

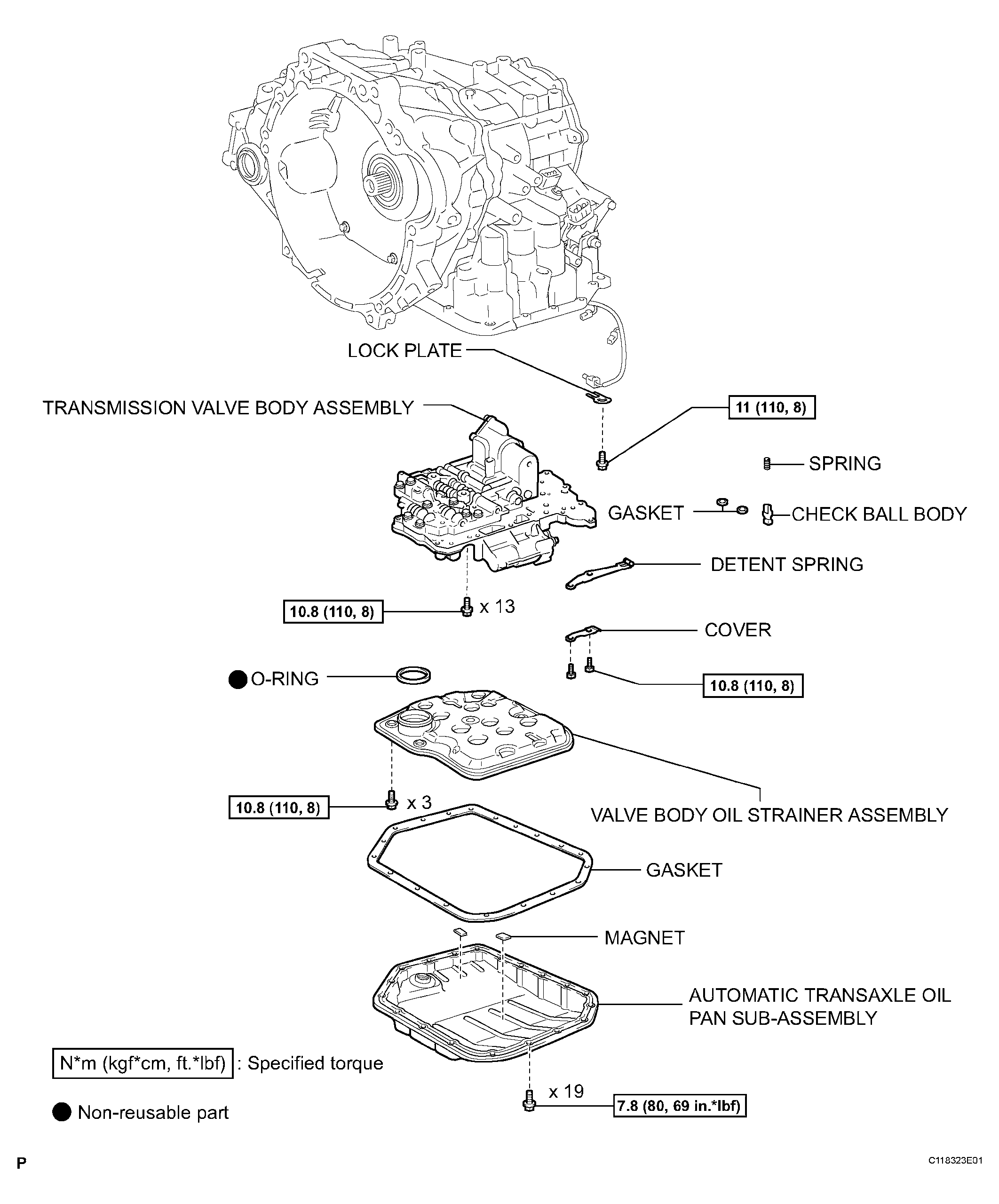

Fig 1: Identifying Valve Body Assembly Components
G04154001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
