Valve Body: Disassembly

  1. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the bolt, and pull out the solenoid.
      Fig 1: Removing Shift Solenoid Valve SLT
      G04154427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT SOLENOID VALVE ST
    1. Remove the bolt, and pull out the solenoid.
      Fig 2: Removing Shift Solenoid Valve ST
      G04154428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SHIFT SOLENOID VALVE SL
    1. Remove the bolt, and pull out the solenoid.
      Fig 3: Removing Shift Solenoid Valve SL
      G04154429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE S2
    1. Remove the bolt, and pull out the 3-way solenoid.
      Fig 4: Removing Shift Solenoid Valve S2
      G04154430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SHIFT SOLENOID VALVE S1
    1. Remove the bolt, and pull out the 3-way solenoid.
      Fig 5: Removing Shift Solenoid Valve S1
      G04154431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE MANUAL VALVE
    1. Remove the manual valve from the valve body.

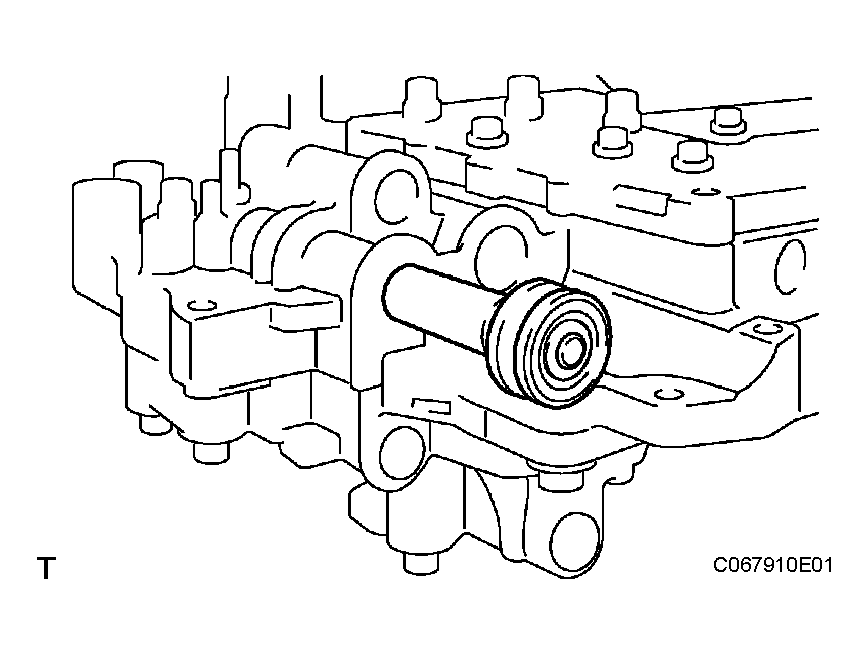

      Fig 6: Removing Manual Valve
      G04154432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
