Key Reminder and Seat Belt Warning
›
Notes
Key Reminder and Seat Belt Warning: Notes

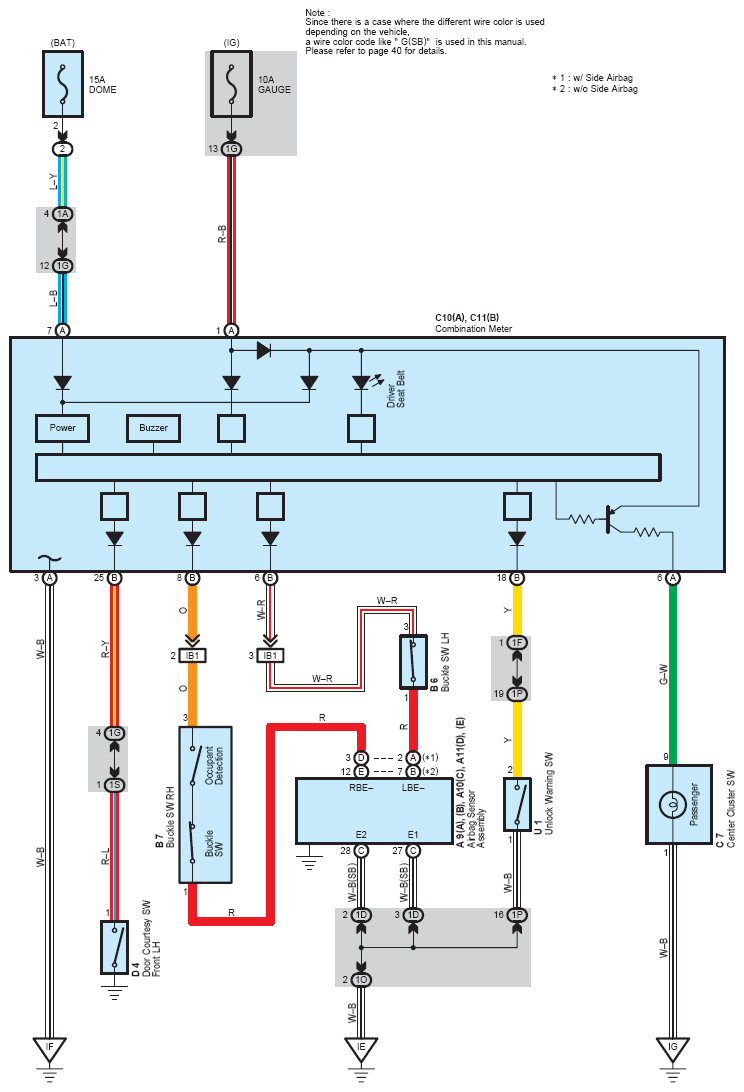

Fig 1: Key Reminder And Seat Belt System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
