Lower Instrument Panel: Components

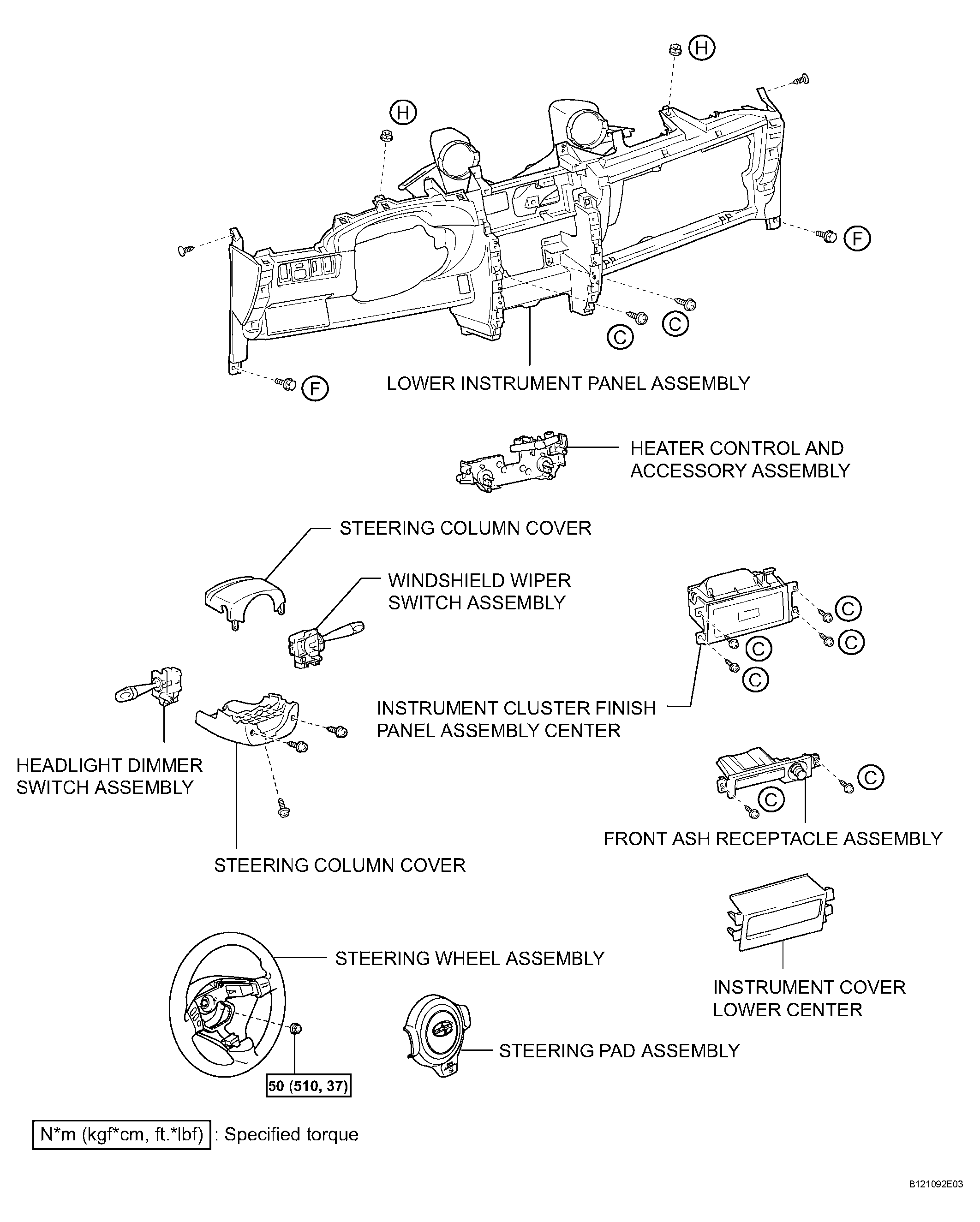

Fig 1: Identifying Components Of Lower Instrument Panel (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

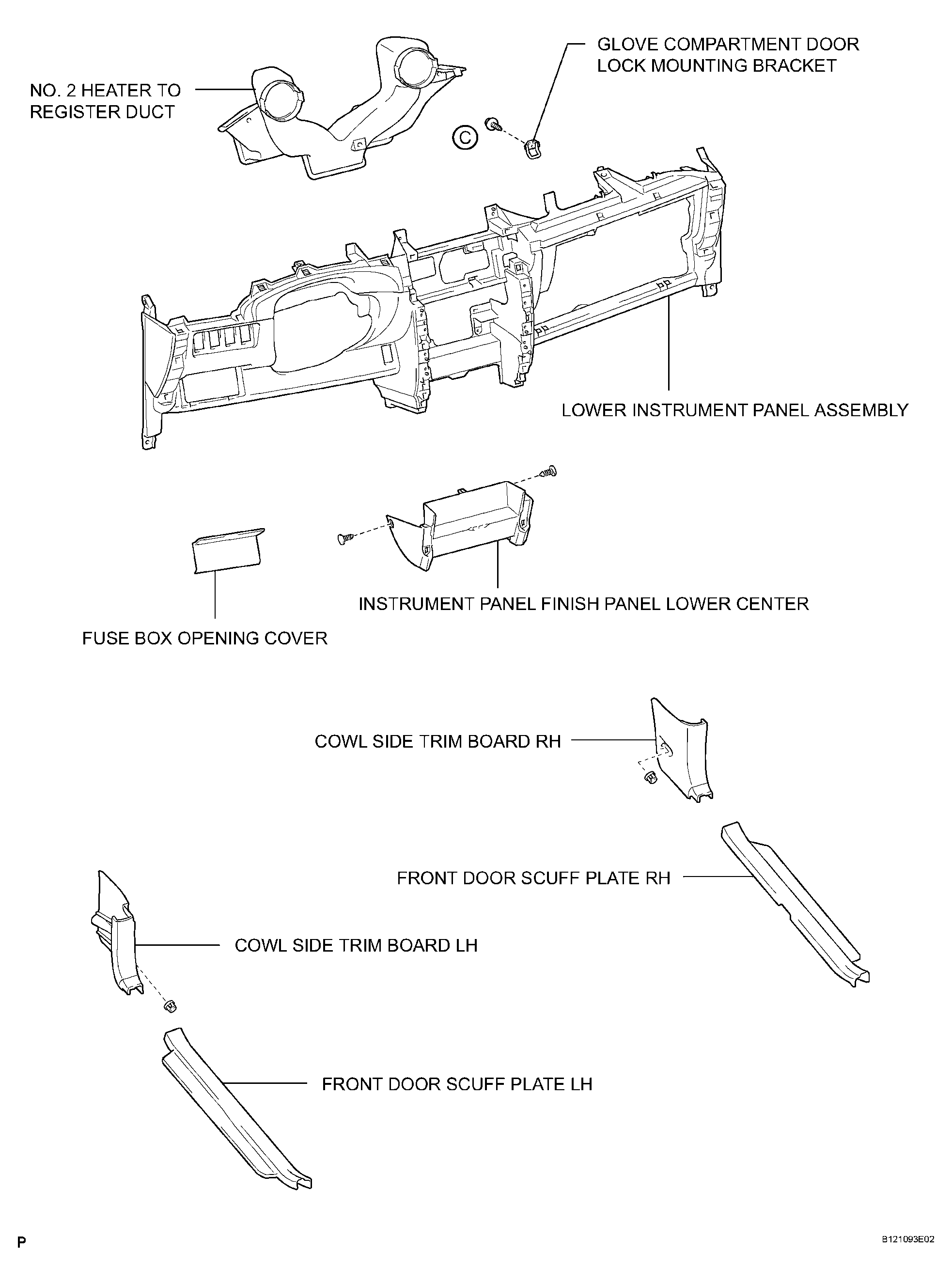

Fig 2: Identifying Components Of Lower Instrument Panel (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
