Control Canister: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE CANISTER
1. Disconnect the connector and detach the 2 clamps.

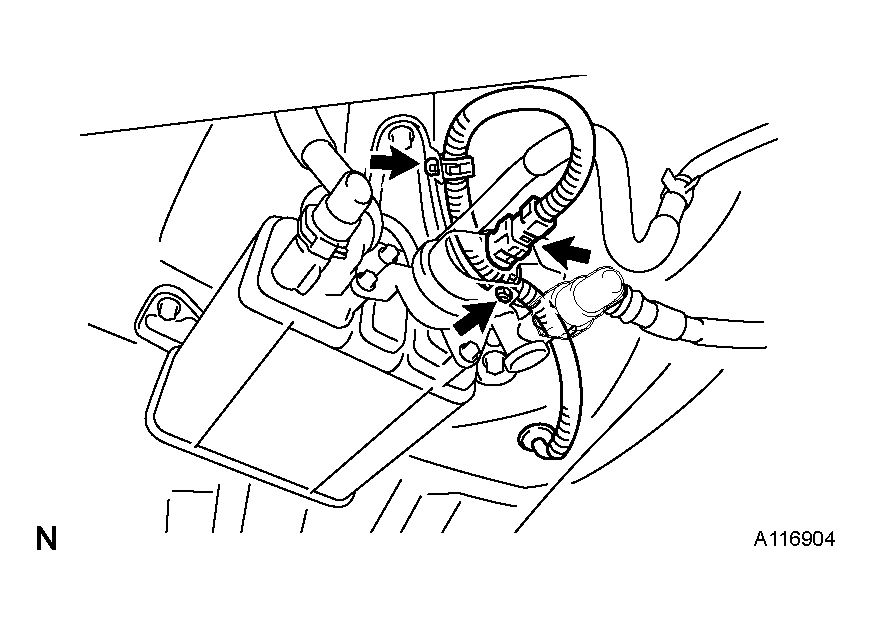

  Fig 1: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 2 tubes and hose.
  1. Using a screwdriver, pry up the retainer.
    HINT:

    Do not remove the retainer.

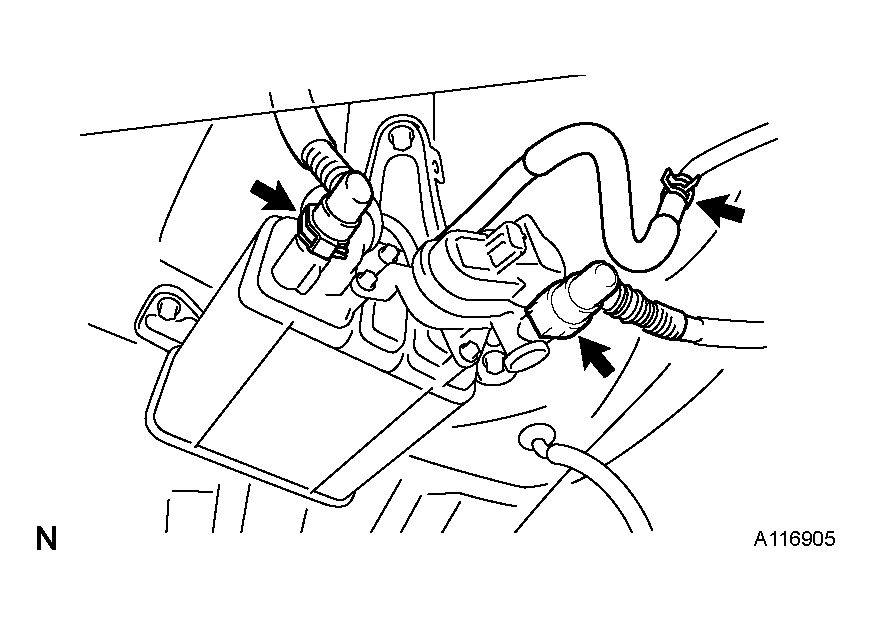

    Fig 2: Prying Up Retainer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the purge line hose.
  3. Disconnect the air inlet line tube from the canister.
  4. Disconnect the vent line tube from the canister (leak detection pump).

    Fig 3: Disconnecting Purge Line Hose
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts and canister.

  Fig 4: Removing Canister
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
