Power Steering Link: Components

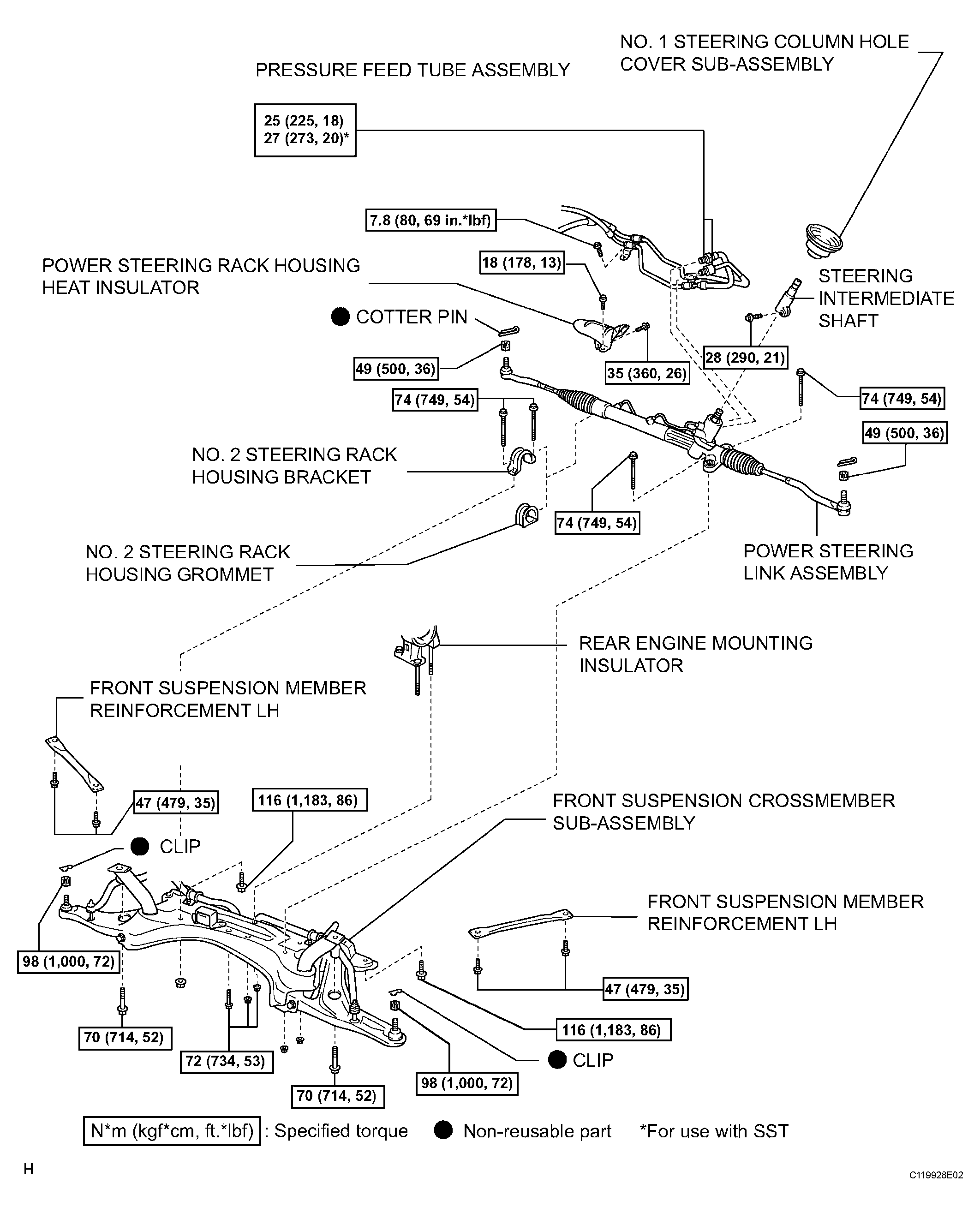

Fig 1: Identifying Power Steering Link Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

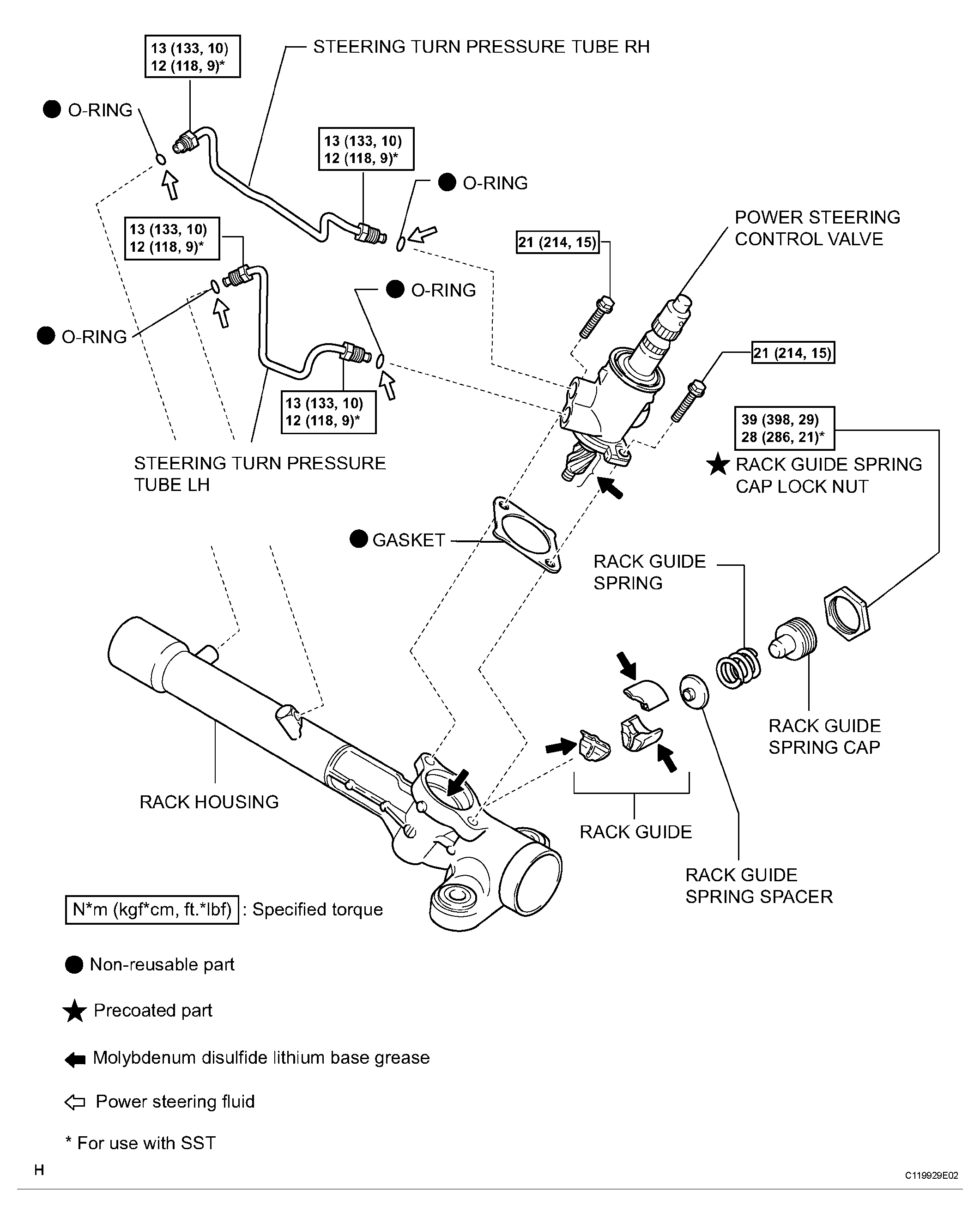

Fig 2: Exploded View Of Power Steering Link Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

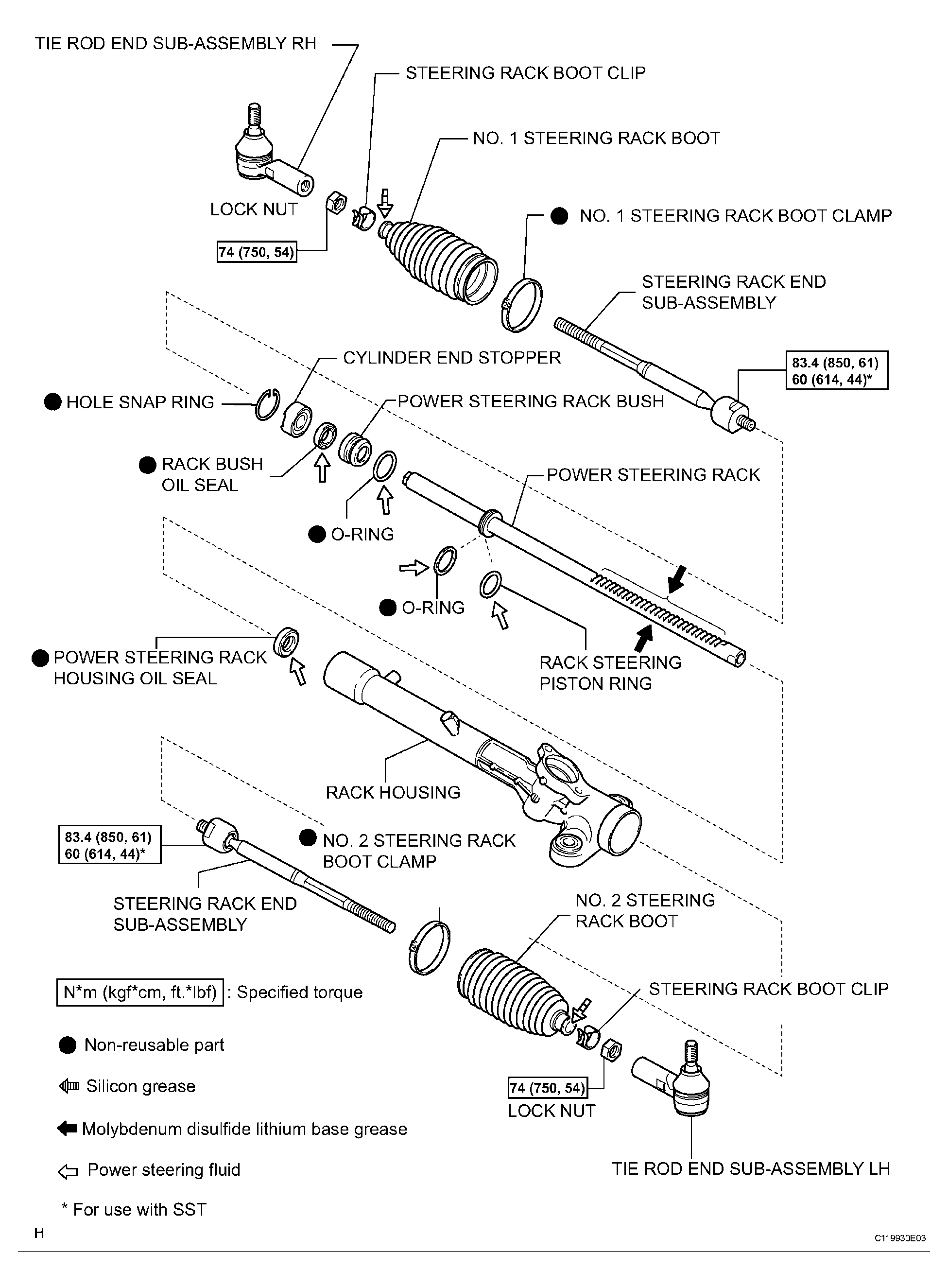

Fig 3: Exploded View Of Power Steering Link Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
