Differential Case: Components

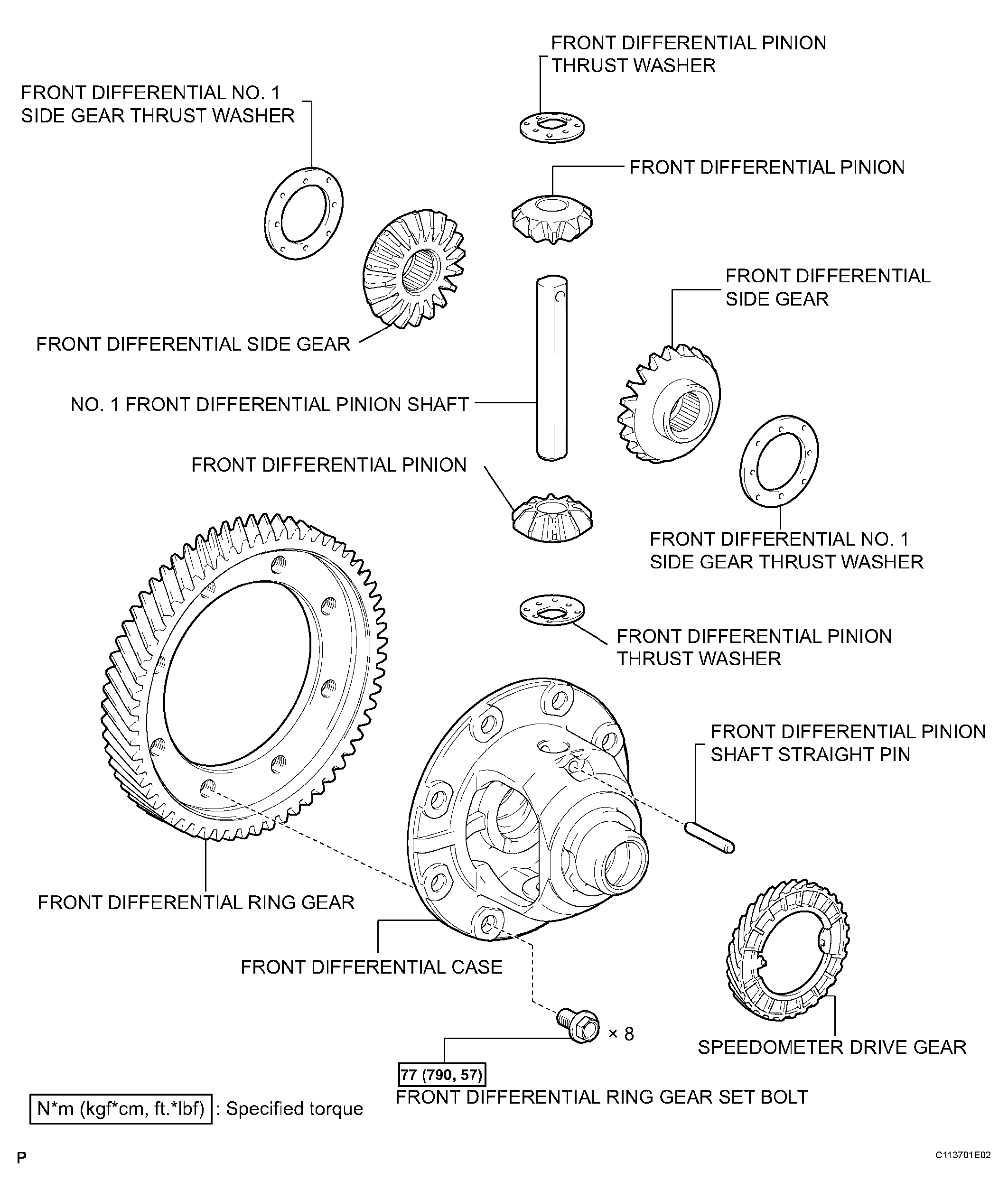

Fig 1: Identifying Differential Case Components
G04154858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
