Transmission Control Cable: Removal

  1. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Remove the shift lever knob (see REMOVAL ).
  3. REMOVE REAR CONSOLE BOX ASSEMBLY
    1. Remove the rear console box (see REMOVAL ).
  4. DISCONNECT FLOOR SHIFT LEVER ASSEMBLY
    1. Disconnect the wire harness.

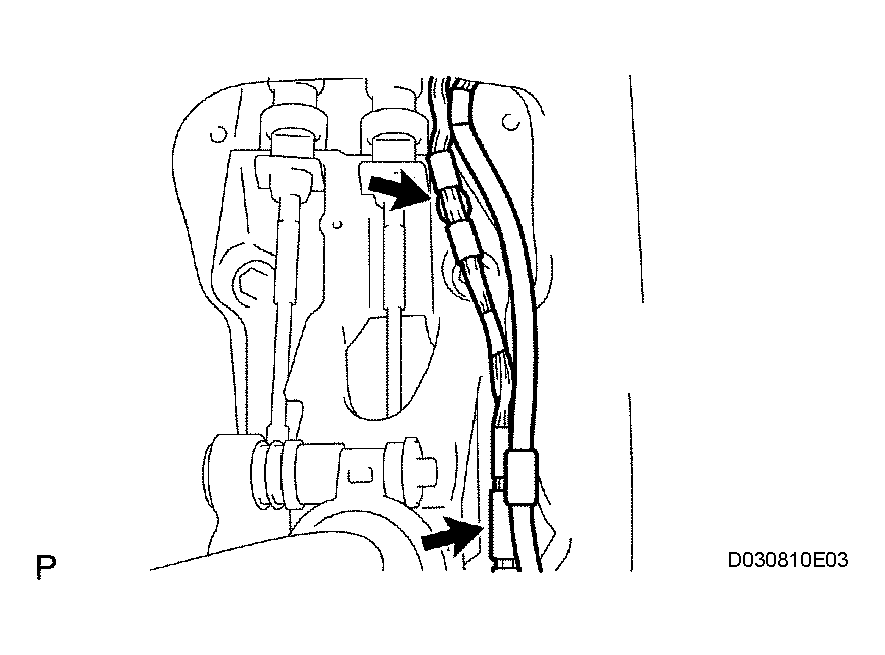

      Fig 1: Disconnecting Wire Harness
      G04154548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and disconnect the floor shift lever.

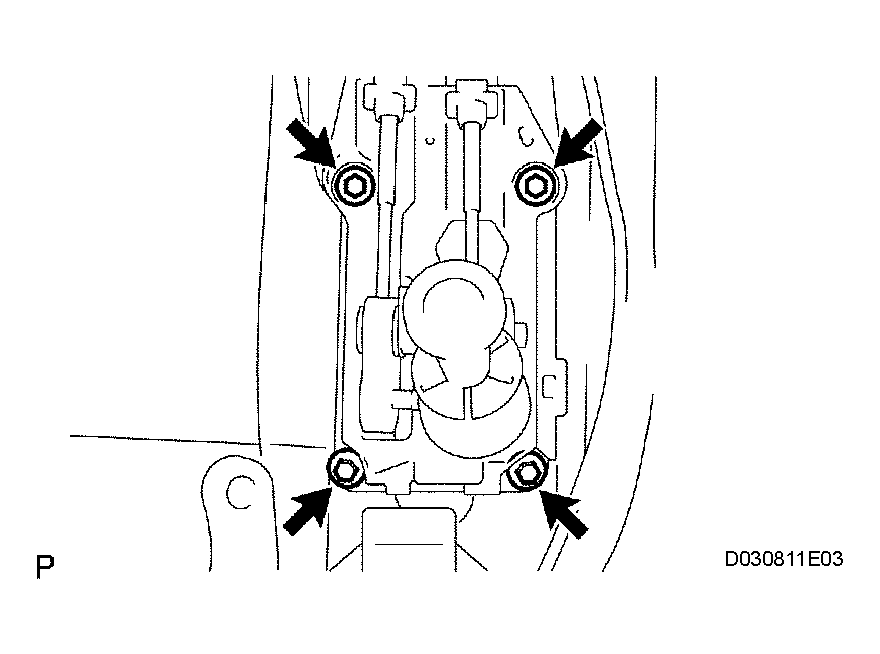

      Fig 2: Disconnecting Floor Shift Lever
      G04154549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Remove the clip, and disconnect the cable end of the transmission control select cable from the floor shift lever.
      Fig 3: Disconnecting Cable End Of Transmission Control Select Cable
      G04154550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, detach the claw.
    3. Disconnect the transmission control select cable from the shift lever retainer.

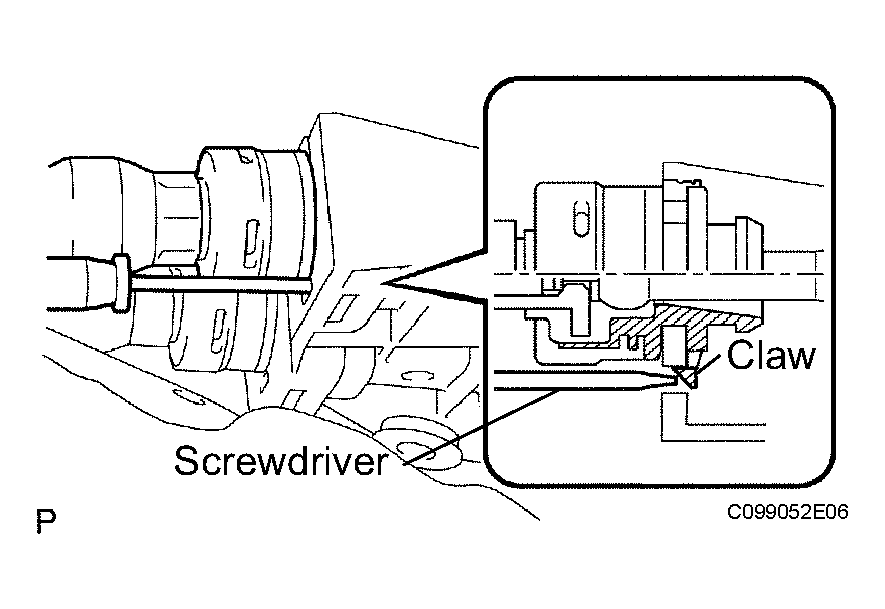

      Fig 4: Disconnecting Transmission Control Select Cable
      G04154551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the clip, and disconnect the cable end of the transmission control shift cable from the floor shift lever.
      Fig 5: Disconnecting Cable End Of Transmission Control Shift Cable
      G04154552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a screwdriver, detach the claw.
    6. Disconnect the transmission control shift cable from the shift lever retainer.

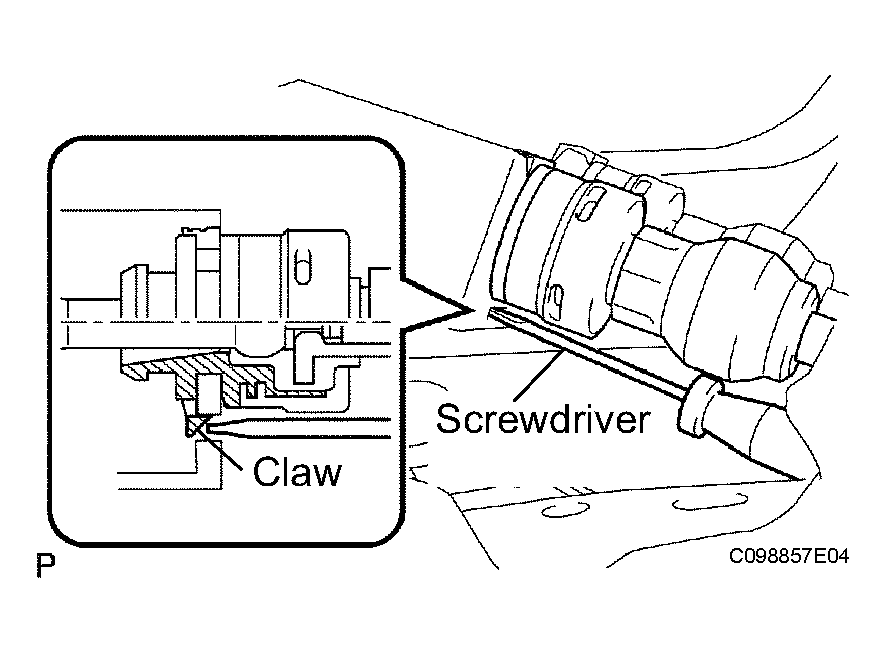

      Fig 6: Disconnecting Transmission Control Shift Cable
      G04154553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the 2 clips and 2 washers, and disconnect the 2 cables from the manual transaxle.
    8. Remove the 2 clips, and disconnect the 2 cables from the control cable bracket.
      Fig 7: Disconnecting Cables From Control Cable Bracket
      G04154554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 2 bolts and retainer from the floor.
      Fig 8: Removing Retainer From Floor
      G04154555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Remove the retainer from the grommet.
    11. Remove the transmission control select cable from the grommet.
      Fig 9: Removing Transmission Control Select Cable From Grommet
      G04154556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    12. Remove the bolt and clamp.
    13. Pull out the transmission control select cable and transmission control shift cable through the floor hole.

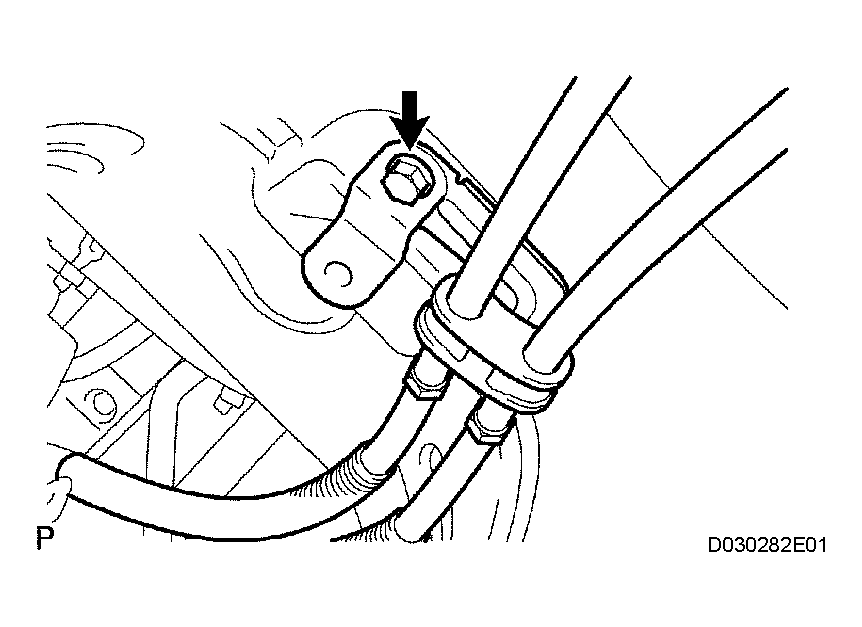

      Fig 10: Pulling Out Transmission Control Select Cable
      G04154557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
