Only Wireless Door Lock Control Function does not Operate: Wiring Diagram

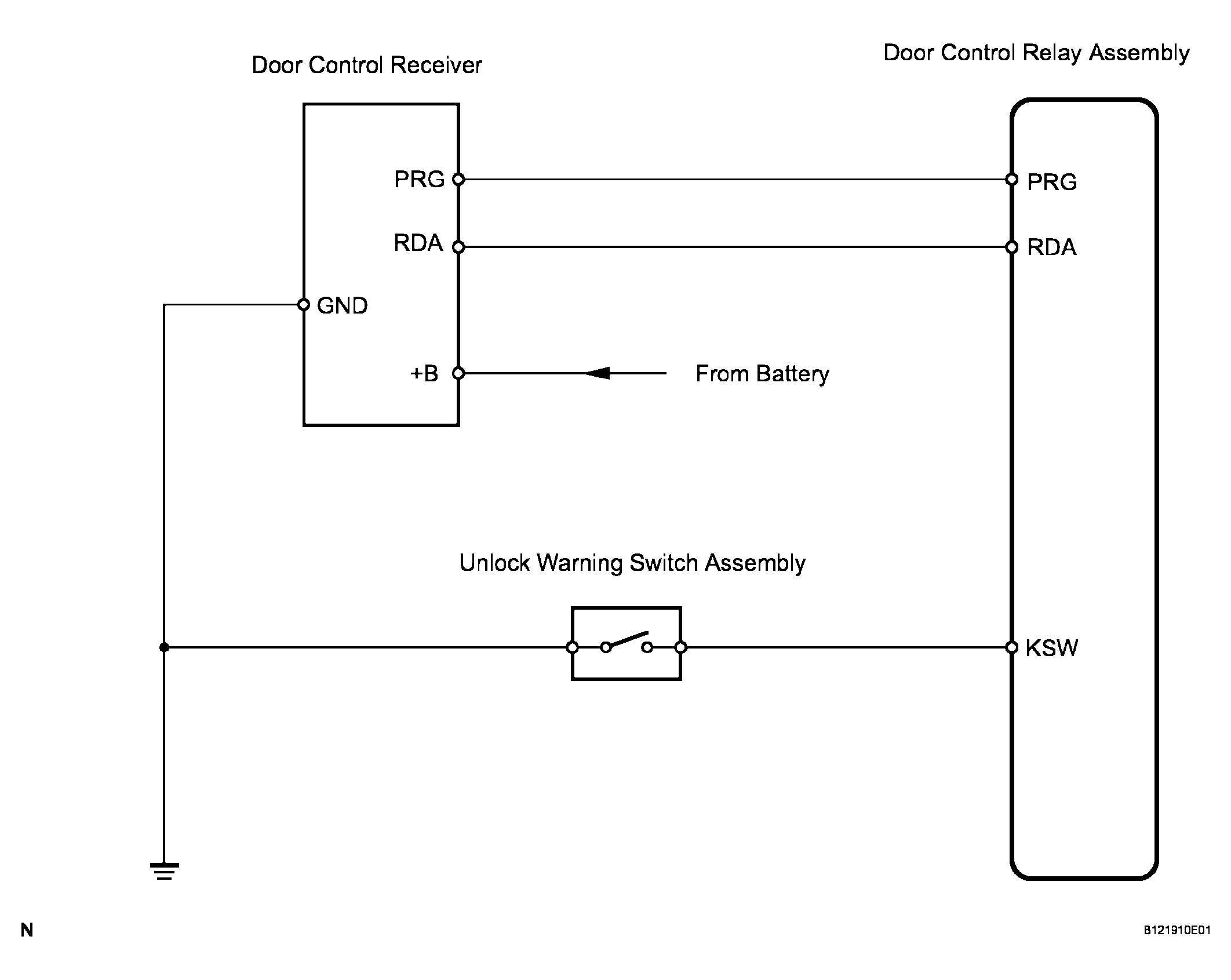

Fig 1: Only Wireless Door Lock Control Function Does Not Operate - Wiring Diagram
G04229279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
