Roof Headlining: Components

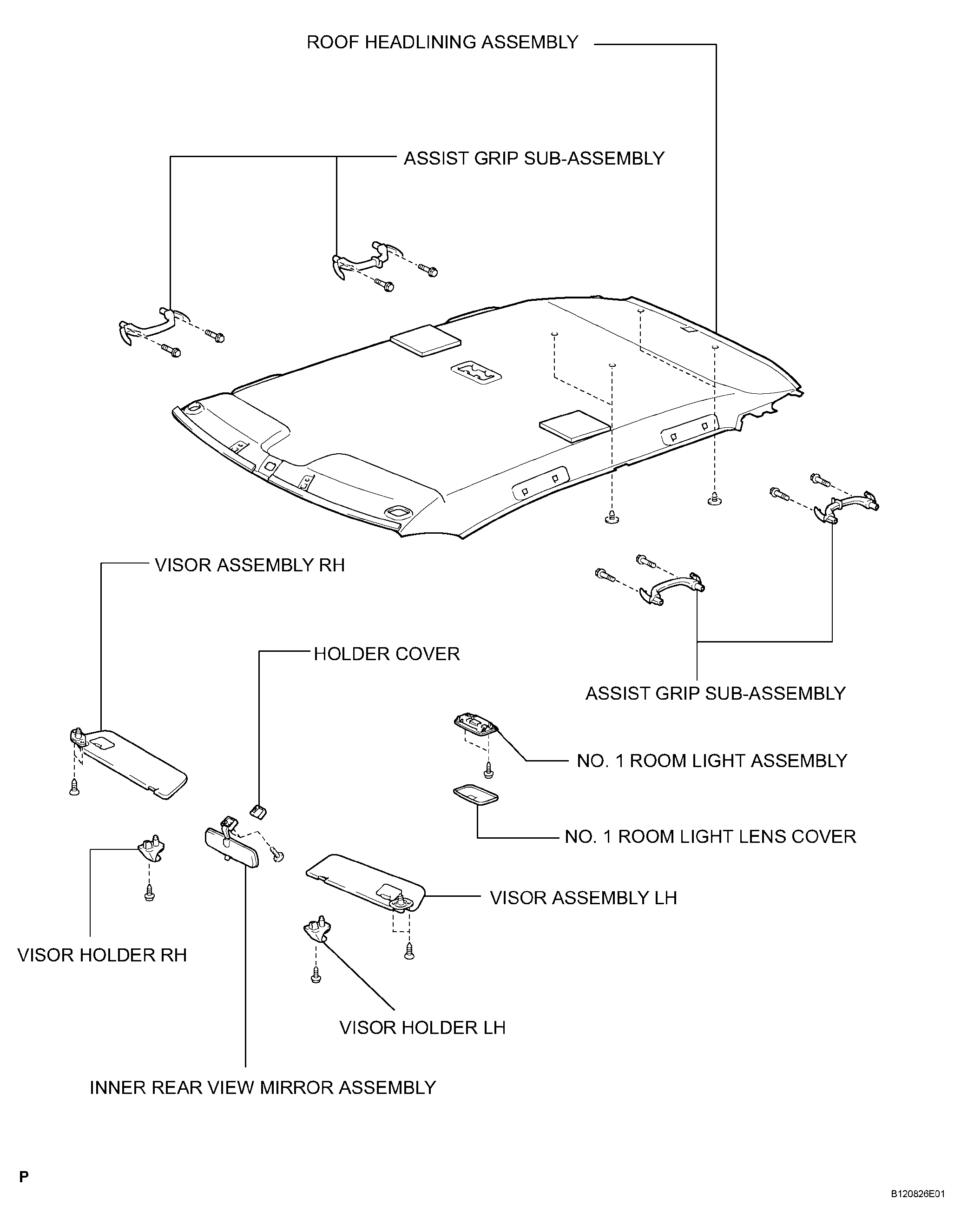

Fig 1: Identifying Roof Headlining Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Roof Headlining Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Roof Headlining Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Roof Headlining Components (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Roof Headlining Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
