Interior Light: Notes

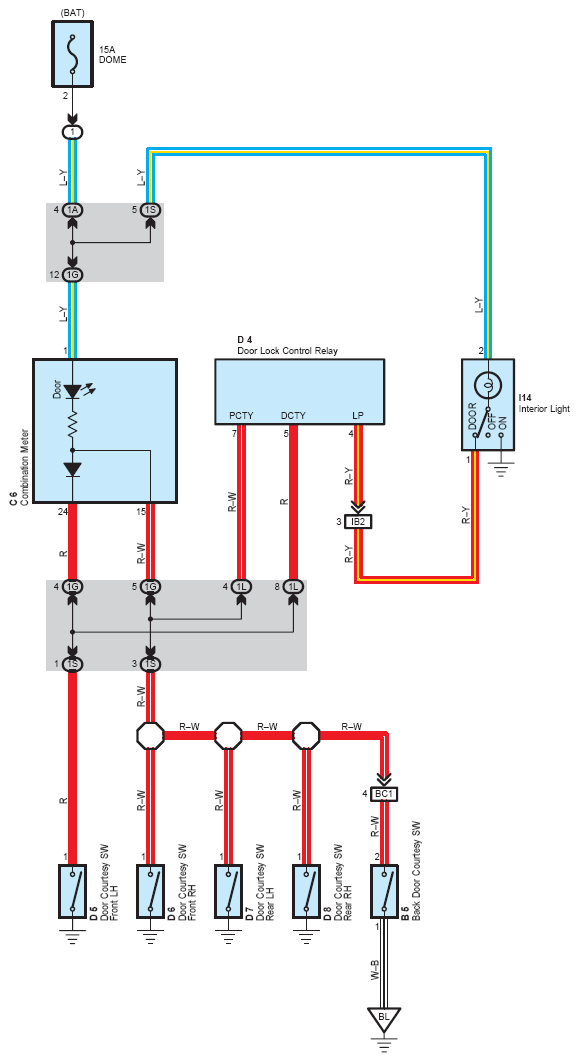

Fig 1: Interior Light System Wiring Diagram
G08759005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
