ECM Power Source Circuit: Wiring Diagram

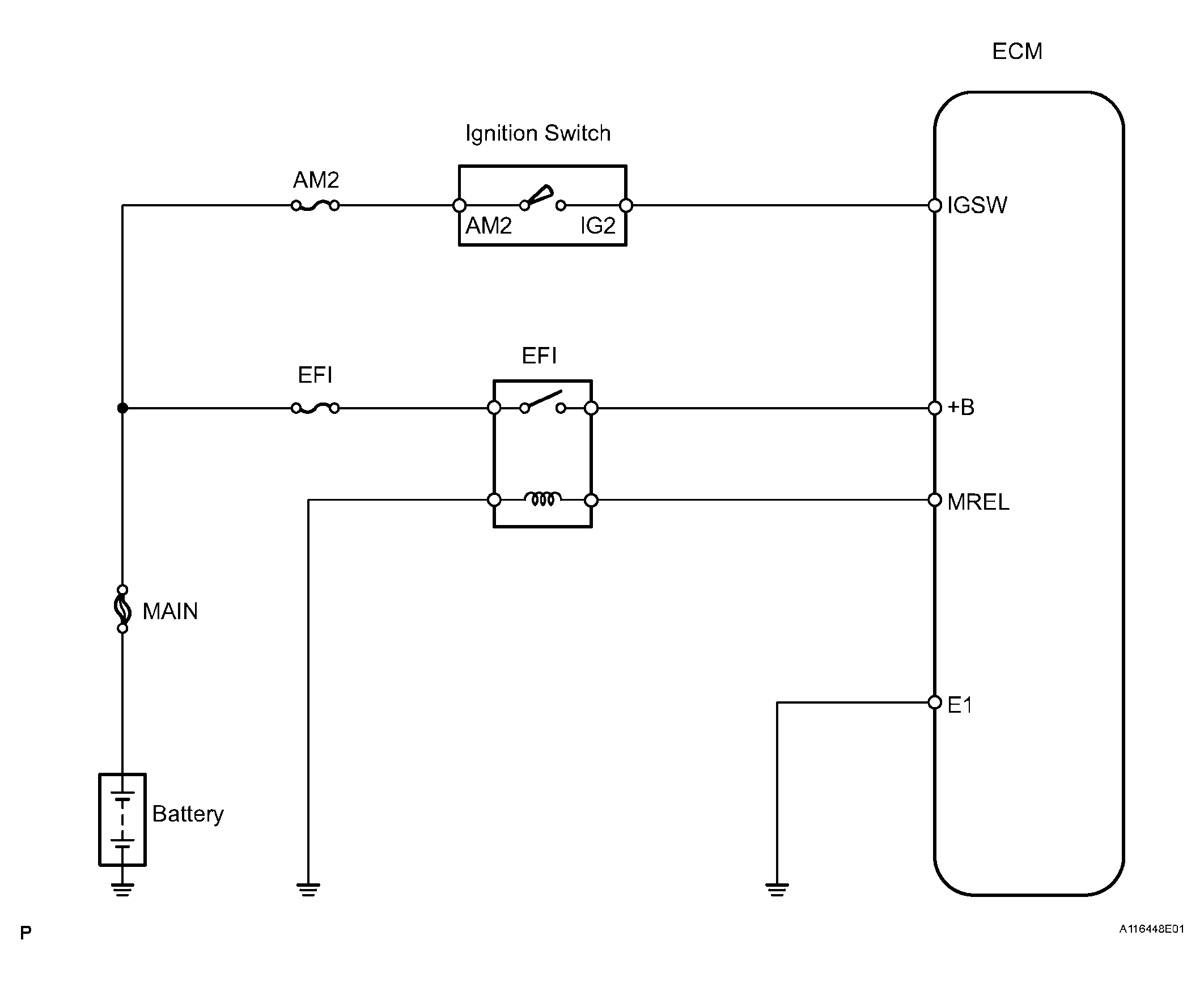

Fig 1: Identifying Wiring Diagram
G04225679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
