Fuel Tank: Components — 2006 Scion xB Automatic Service Manual ~ FixVault

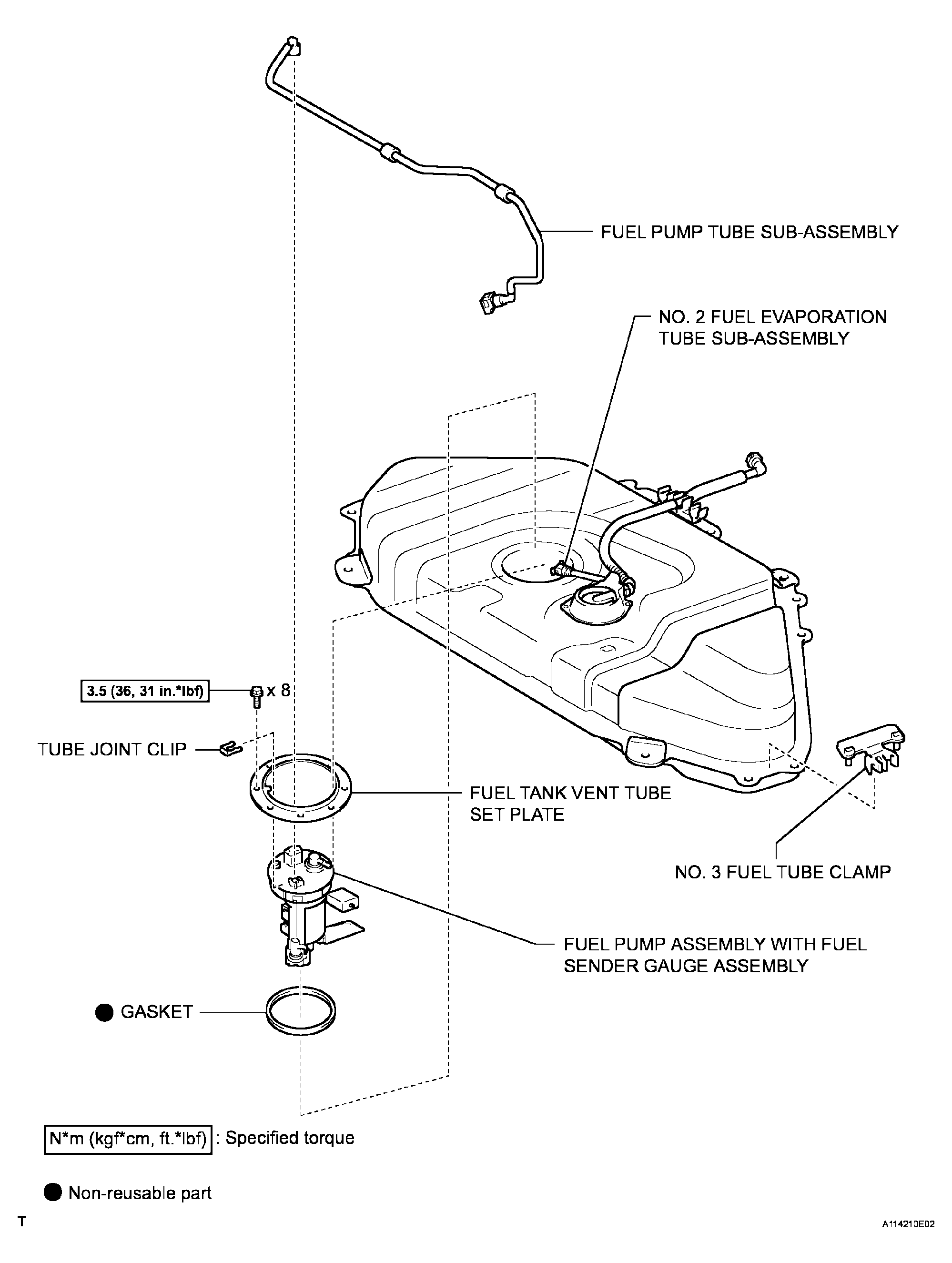

Fig 1: Identifying Fuel Tank Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

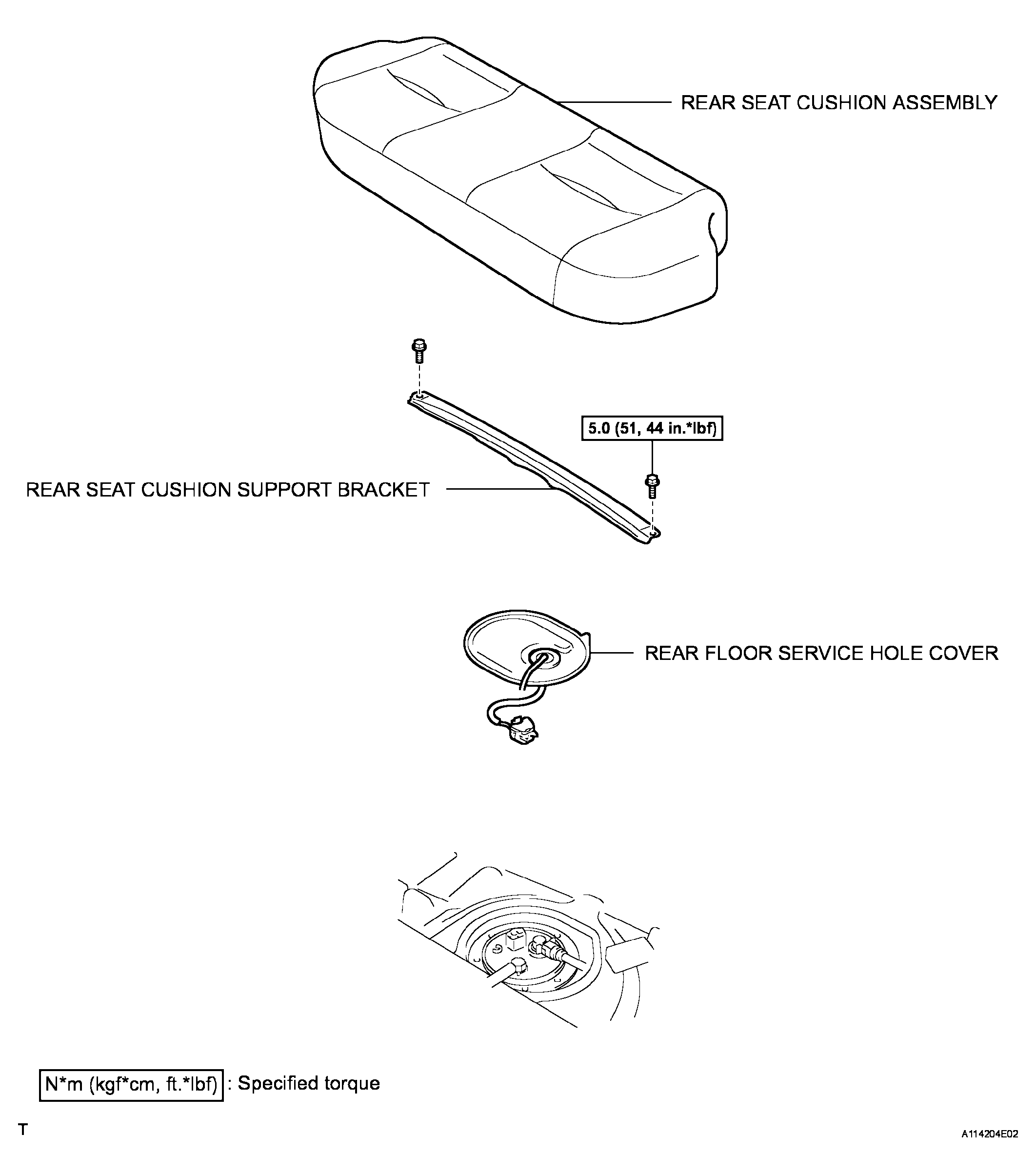

Fig 2: Identifying Fuel Tank Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

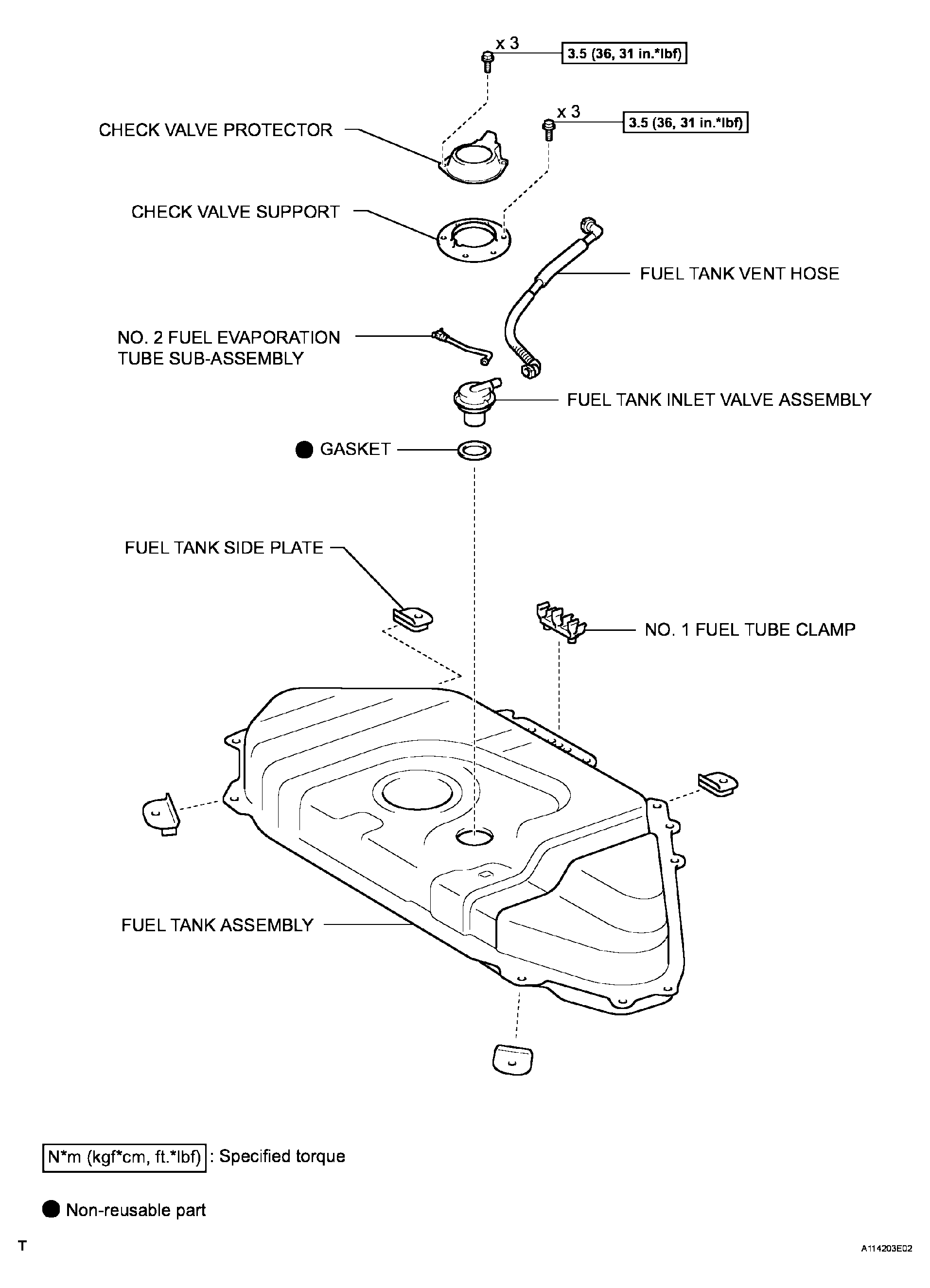

Fig 3: Identifying Fuel Tank Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Fuel Tank Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Fuel Tank Components (5 Of 6)

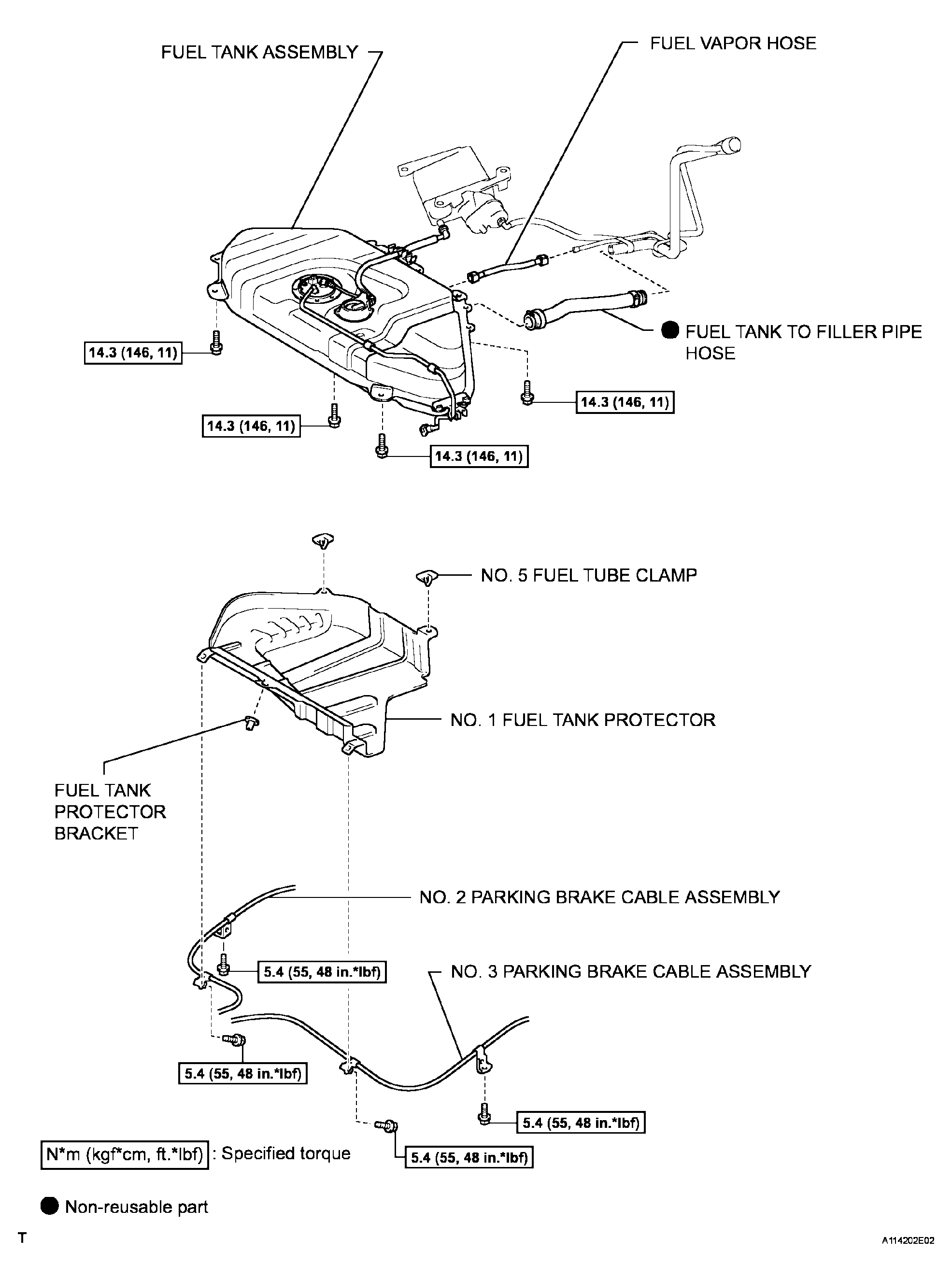

Fig 6: Identifying Fuel Tank Components (6 Of 6)
