Repair and Diagnosis
›
Steering
›
Manual Steering
›
Power Steering
›
Vane Pump
›
Components
Vane Pump: Components

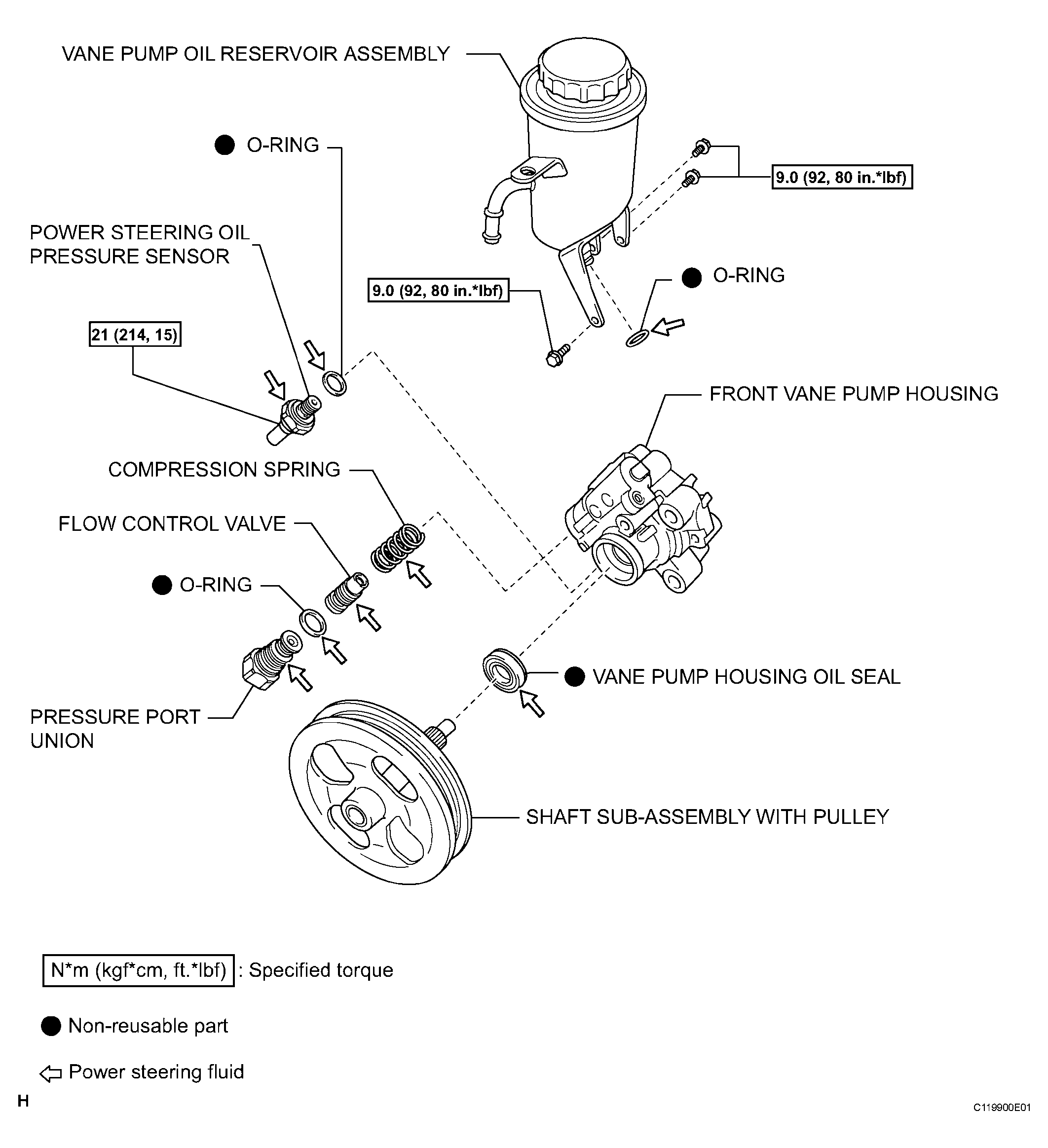

Fig 1: Identifying Vane Pump Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

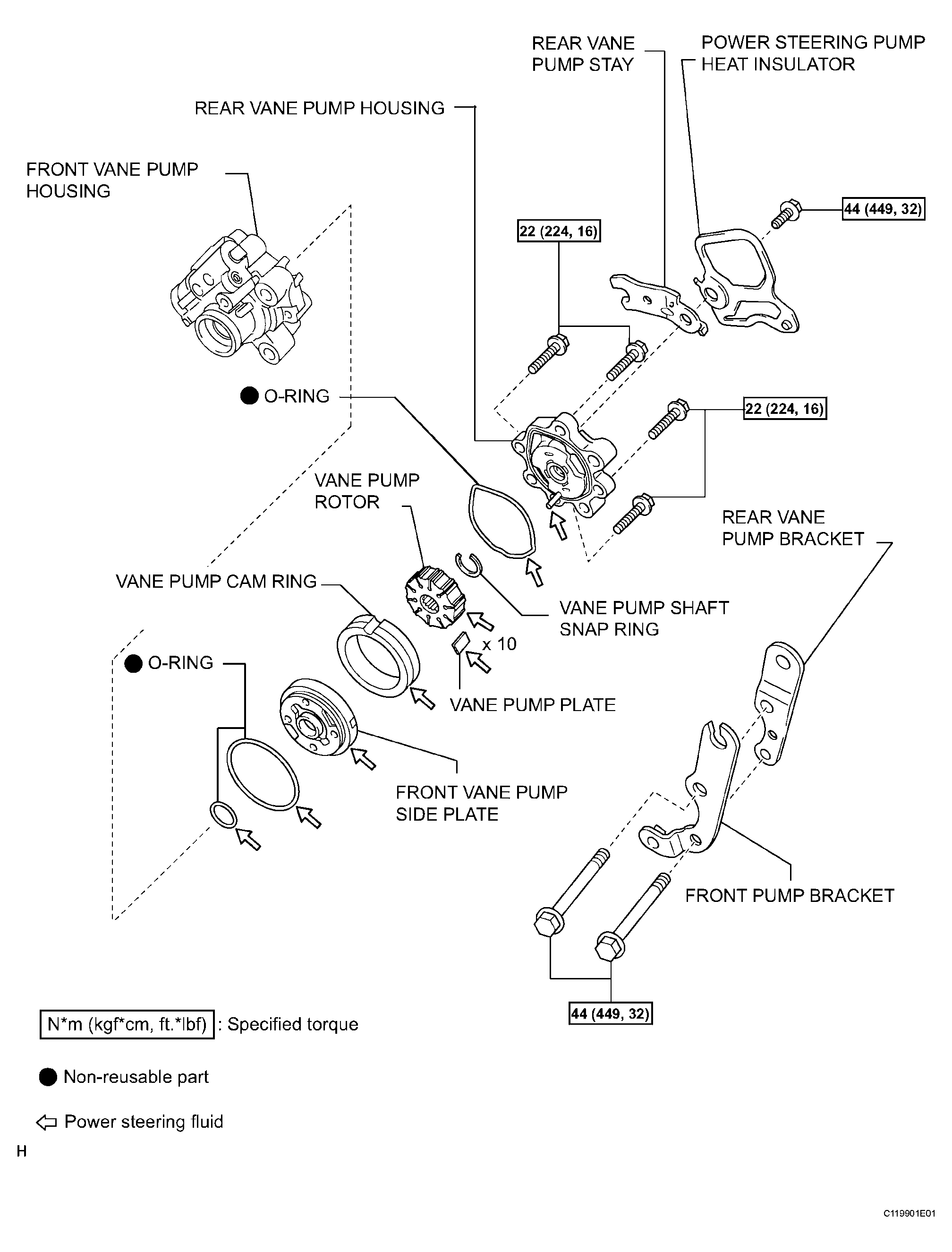

Fig 2: Identifying Vane Pump Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
